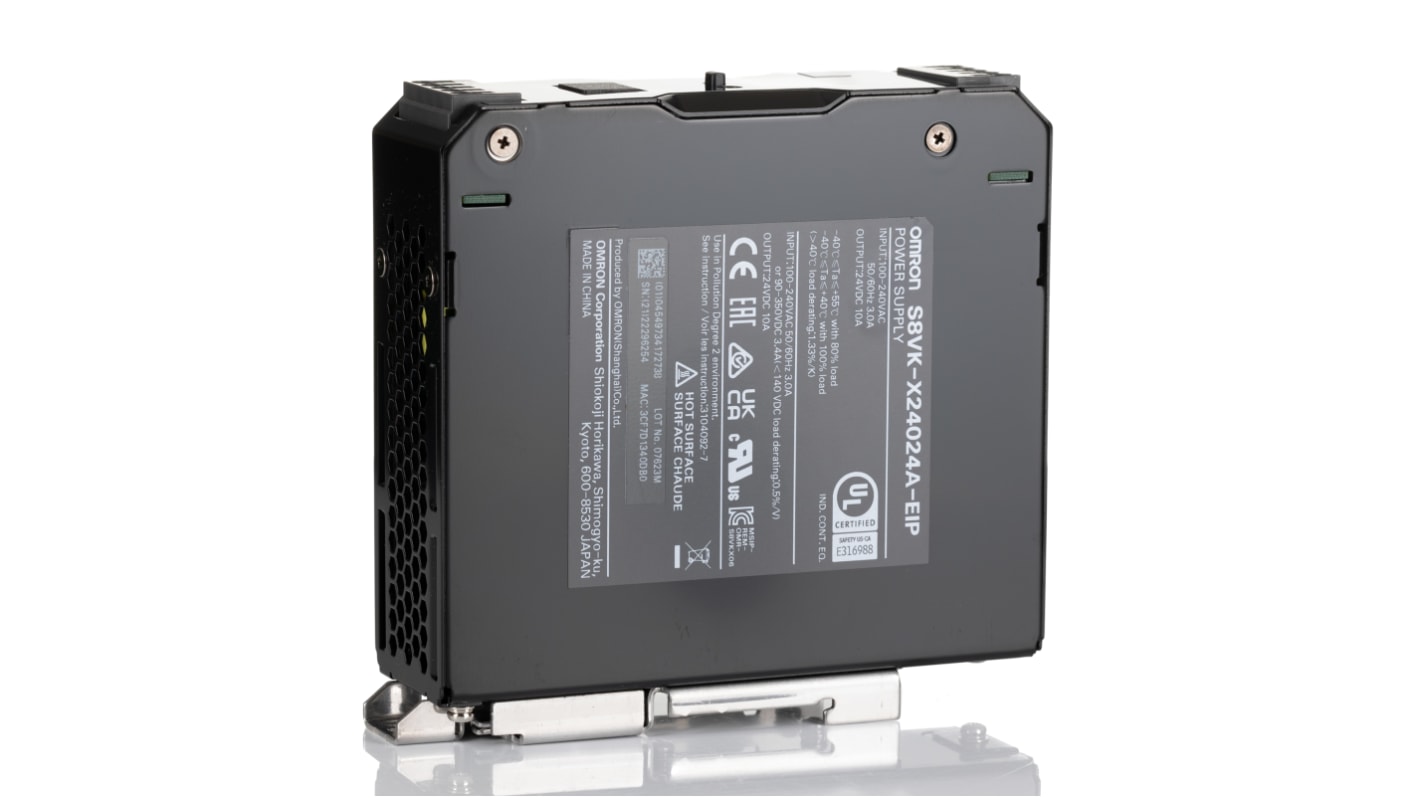

Omron S8VK-X Switched Mode DIN Rail Power Supply, 100 → 240V ac ac Input, 24V dc dc Output, 10A Output, 240W
- RS Stock No.:
- 174-5837
- Mfr. Part No.:
- S8VK-X24024A-EIP
- Manufacturer:
- Omron
Subtotal (1 unit)*
MYR2,387.82
FREE delivery for orders over RM 500.00
In Stock
- 2 unit(s) ready to ship from another location
- Plus 3 unit(s) shipping from 02 September 2025
- Plus 3 unit(s) shipping from 09 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
---|---|
1 + | MYR2,387.82 |
*price indicative
- RS Stock No.:
- 174-5837
- Mfr. Part No.:
- S8VK-X24024A-EIP
- Manufacturer:
- Omron
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Omron | |
Series | S8VK-X | |
Type | Switched Mode | |
Electrical Phase | 1 | |
AC or DC Input Voltage | ac | |
Number of Outputs | 1 | |
Input Voltage | 100 → 240V ac | |
AC or DC Output Voltage | dc | |
Output Voltage | 24V dc | |
Output Current | 10A | |
Dimensions | 38 x 119.3 x 124.6mm | |
Height | 129.8mm | |
Width | 38mm | |
Depth | 123.7mm | |
MTBF | 270000h | |
Maximum Temperature | +70°C | |
Standards Met | CE, cULus, EAC, EN 61000-3-2, EN 61204-3, EN/IEC 60529, EN/IEC 61558-2-16, TUV, UL | |
Mounting Type | DIN Rail Mount | |
Minimum Temperature | -40°C | |
Efficiency | 93% | |
Load Regulation | 1.5% | |
Special Features | Overvoltage and Short Circuit Protection | |
Ripple And Noise | 150mV | |
Output Voltage Adjustment Range | 21.6 → 28V | |
Select all | ||
---|---|---|
Brand Omron | ||
Series S8VK-X | ||
Type Switched Mode | ||
Electrical Phase 1 | ||
AC or DC Input Voltage ac | ||
Number of Outputs 1 | ||
Input Voltage 100 → 240V ac | ||
AC or DC Output Voltage dc | ||
Output Voltage 24V dc | ||
Output Current 10A | ||
Dimensions 38 x 119.3 x 124.6mm | ||
Height 129.8mm | ||
Width 38mm | ||
Depth 123.7mm | ||
MTBF 270000h | ||
Maximum Temperature +70°C | ||
Standards Met CE, cULus, EAC, EN 61000-3-2, EN 61204-3, EN/IEC 60529, EN/IEC 61558-2-16, TUV, UL | ||
Mounting Type DIN Rail Mount | ||
Minimum Temperature -40°C | ||
Efficiency 93% | ||
Load Regulation 1.5% | ||
Special Features Overvoltage and Short Circuit Protection | ||
Ripple And Noise 150mV | ||
Output Voltage Adjustment Range 21.6 → 28V | ||
