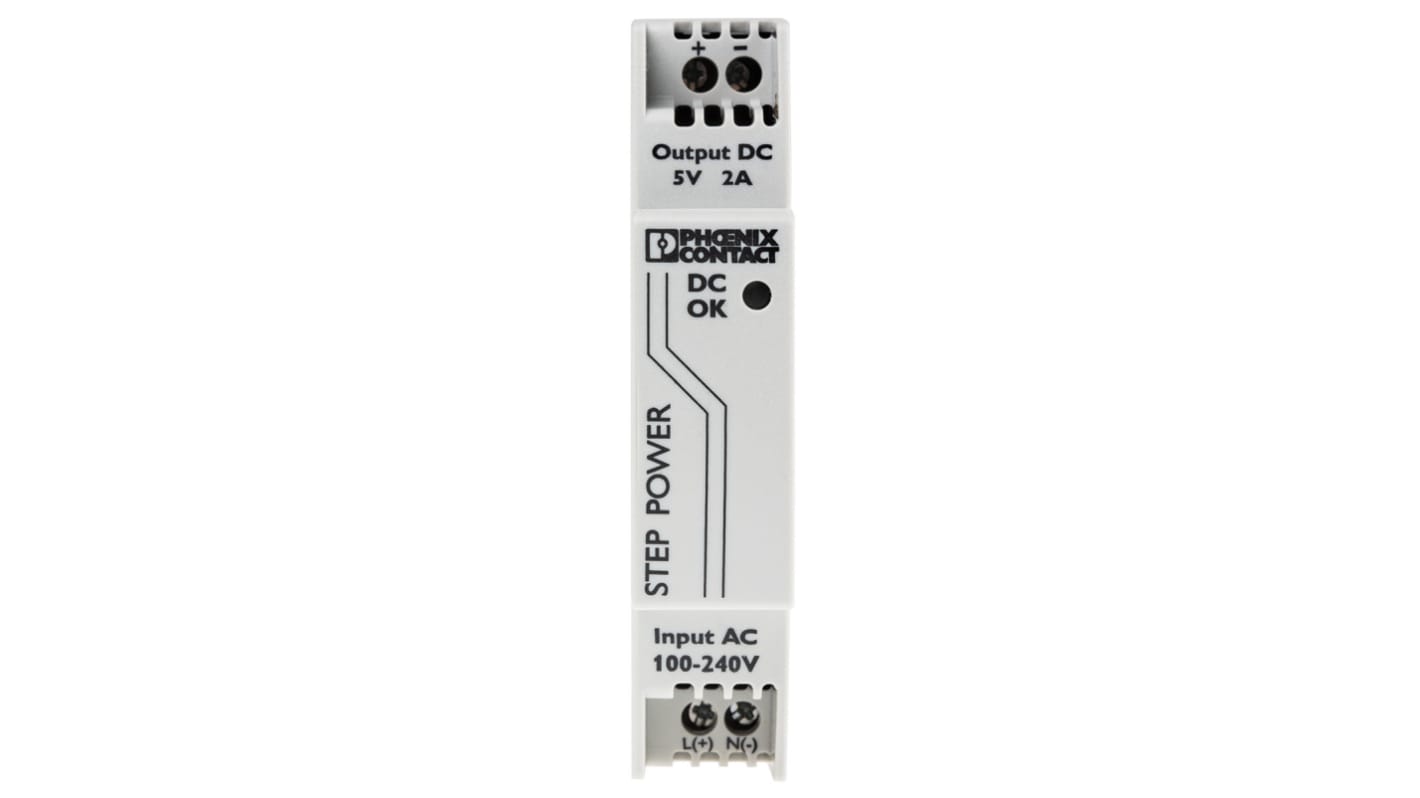

Phoenix Contact STEP POWER Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 95 → 250V dc ac, dc
- RS Stock No.:
- 168-2488
- Distrelec Article No.:
- 301-50-840
- Mfr. Part No.:
- 2320513
- Manufacturer:
- Phoenix Contact
Subtotal (1 unit)*
MYR251.29
FREE delivery for orders over RM 500.00
- 5 unit(s) ready to ship from another location
Units | Per Unit |
---|---|
1 + | MYR251.29 |
*price indicative
- RS Stock No.:
- 168-2488
- Distrelec Article No.:
- 301-50-840
- Mfr. Part No.:
- 2320513
- Manufacturer:
- Phoenix Contact
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Series | STEP POWER | |
Type | Switched Mode | |
Electrical Phase | 1 | |
Number of Outputs | 1 | |
AC or DC Input Voltage | ac, dc | |
Input Voltage | 85 → 264 V ac / 95 → 250V dc | |
AC or DC Output Voltage | dc | |
Output Voltage | 5V dc | |
Output Current | 3.7A | |
Dimensions | 18 x 90 x 61mm | |
Width | 18mm | |
Height | 90mm | |
Depth | 61mm | |
Minimum Temperature | -25°C | |
Standards Met | CE EN61000-6-3, cUL, DIN VDE 0100-410, EMC Directive 2014/30/EU, EN 50121-4, EN 50178, EN 50178/VDE 0160 (PELV), EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-6-2:2005, EN 61558-2-16, IEC 60950-1 (SELV) and EN 60204-1 (PELV), IEC 60950-1/VDE 0805 (SELV), IEC/EN 61000-4-6, NEC Class 2 as per UL 1310, UL/C-UL listed UL 508, UL/C-UL Reconized UL 60950-1 | |
Efficiency | 81% | |
Maximum Temperature | +70°C | |
Model | STEP-PS/ 1AC/ 5DC/2 | |
Special Features | 000 Hours and U/I Characteristic Curve, Energy Savings Thanks to Maximum Energy Efficiency and Incredibly Low Idling Losses, Flexible Mounting by Simply Snapping onto The Din Rail or Screwing onto A Level Surface, Reliable Power Supply Thanks to High MTBF (mean Time Between Failures) of More Than 500 | |
MTBF | 500000h | |
Mounting Type | DIN Rail Mount | |
Ripple And Noise | 50mV Pk-Pk | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Series STEP POWER | ||
Type Switched Mode | ||
Electrical Phase 1 | ||
Number of Outputs 1 | ||
AC or DC Input Voltage ac, dc | ||
Input Voltage 85 → 264 V ac / 95 → 250V dc | ||
AC or DC Output Voltage dc | ||
Output Voltage 5V dc | ||
Output Current 3.7A | ||
Dimensions 18 x 90 x 61mm | ||
Width 18mm | ||
Height 90mm | ||
Depth 61mm | ||
Minimum Temperature -25°C | ||
Standards Met CE EN61000-6-3, cUL, DIN VDE 0100-410, EMC Directive 2014/30/EU, EN 50121-4, EN 50178, EN 50178/VDE 0160 (PELV), EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-6-2:2005, EN 61558-2-16, IEC 60950-1 (SELV) and EN 60204-1 (PELV), IEC 60950-1/VDE 0805 (SELV), IEC/EN 61000-4-6, NEC Class 2 as per UL 1310, UL/C-UL listed UL 508, UL/C-UL Reconized UL 60950-1 | ||
Efficiency 81% | ||
Maximum Temperature +70°C | ||
Model STEP-PS/ 1AC/ 5DC/2 | ||
Special Features 000 Hours and U/I Characteristic Curve, Energy Savings Thanks to Maximum Energy Efficiency and Incredibly Low Idling Losses, Flexible Mounting by Simply Snapping onto The Din Rail or Screwing onto A Level Surface, Reliable Power Supply Thanks to High MTBF (mean Time Between Failures) of More Than 500 | ||
MTBF 500000h | ||
Mounting Type DIN Rail Mount | ||
Ripple And Noise 50mV Pk-Pk | ||
