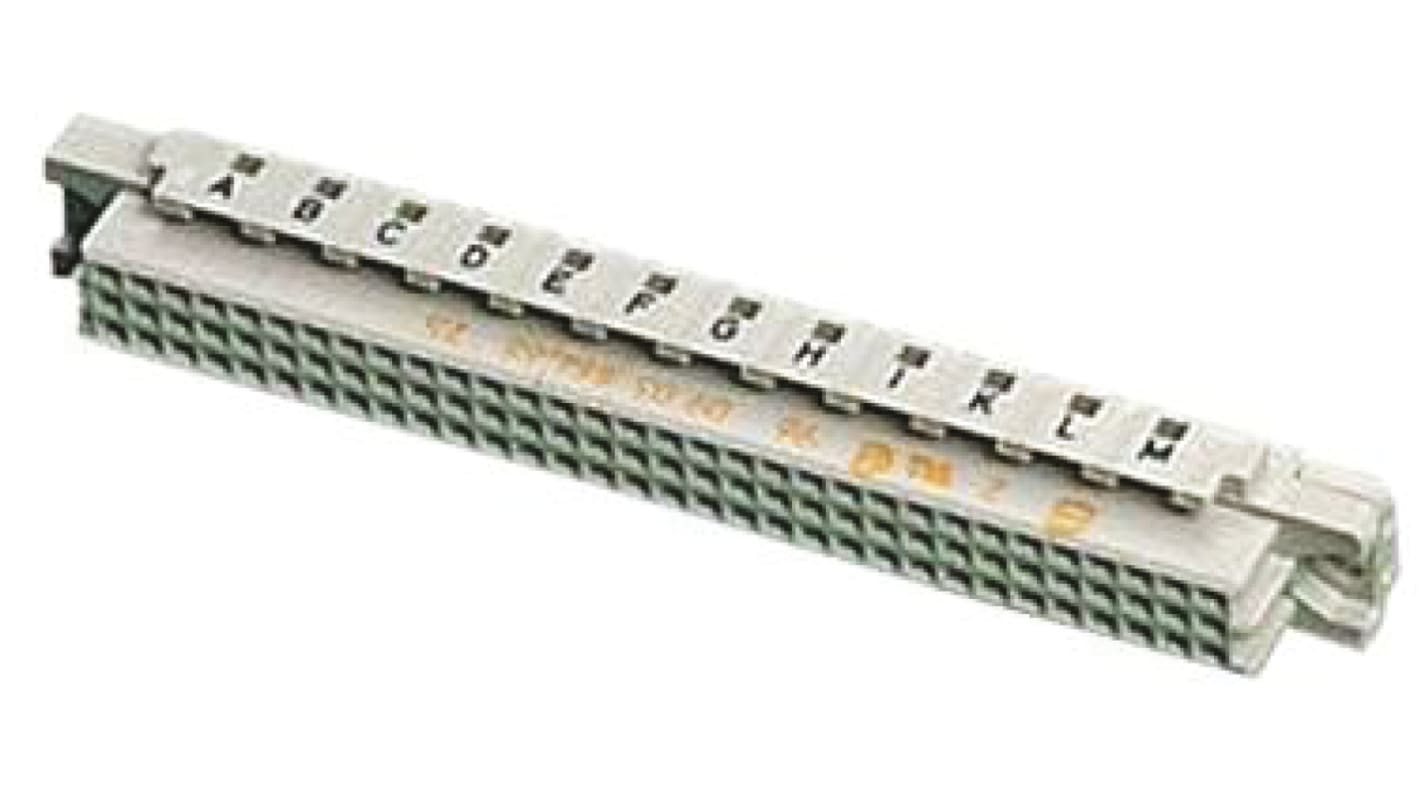

HARTING 09 03 96 Way 2.54mm Pitch, Type C Class C2, 3 Row, Straight DIN 41612 Connector, Socket
- RS Stock No.:
- 923-1663
- Mfr. Part No.:
- 09037966825
- Manufacturer:
- HARTING
Bulk discount available
Subtotal (1 box of 20 units)**
MYR848.04
Temporarily out of stock - back order for despatch 04/09/2025, delivery within 4 working days from despatch date*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Units | Per Unit | Per Box** |
|---|---|---|
| 20 - 20 | MYR42.402 | MYR848.04 |
| 40 - 60 | MYR41.749 | MYR834.98 |
| 80 + | MYR40.935 | MYR818.70 |
**price indicative
- RS Stock No.:
- 923-1663
- Mfr. Part No.:
- 09037966825
- Manufacturer:
- HARTING
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Number of Contacts | 96 | |
| Gender | Female | |
| Number of Rows | 3 | |
| Body Orientation | Straight | |
| Termination Method | Solder | |
| Row Loading | a/b/c | |
| Type | C | |
| Pitch | 2.54mm | |
| Contact Plating | Gold over Nickel | |
| Class Rating | C2 | |
| Current Rating | 2A | |
| Contact Material | Copper Alloy | |
| Maximum Contact Resistance | 20mΩ | |
| Series | 09 03 | |
| Maximum Operating Temperature | +125°C | |
| Housing Material | Thermoplastic | |
| Minimum Operating Temperature | -55°C | |
Select all | ||
|---|---|---|
Brand HARTING | ||
Number of Contacts 96 | ||
Gender Female | ||
Number of Rows 3 | ||
Body Orientation Straight | ||
Termination Method Solder | ||
Row Loading a/b/c | ||
Type C | ||
Pitch 2.54mm | ||
Contact Plating Gold over Nickel | ||
Class Rating C2 | ||
Current Rating 2A | ||
Contact Material Copper Alloy | ||
Maximum Contact Resistance 20mΩ | ||
Series 09 03 | ||
Maximum Operating Temperature +125°C | ||
Housing Material Thermoplastic | ||
Minimum Operating Temperature -55°C | ||
