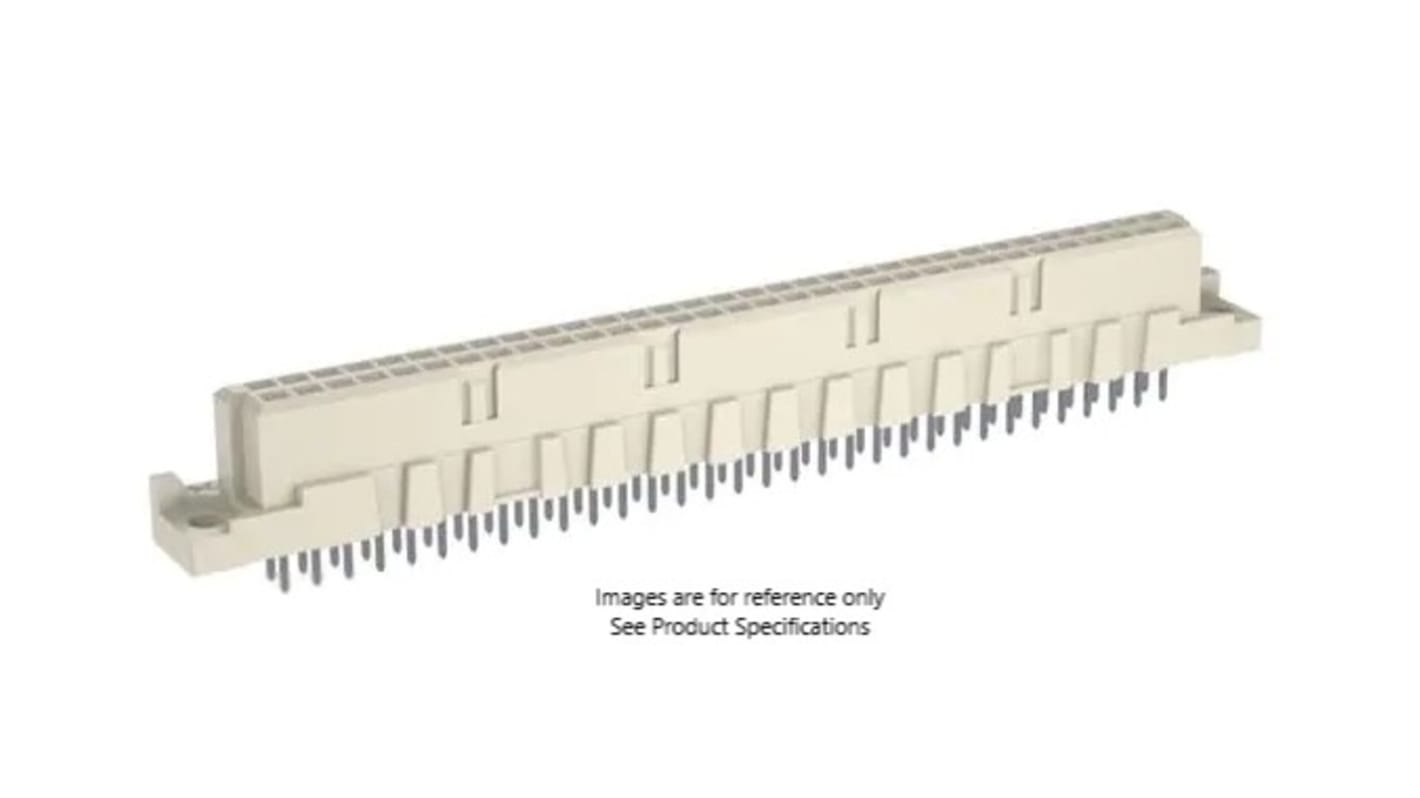

ERNI STVB 64 Way 2.54mm Pitch, Type B Class C2, 2 Row, Vertical DIN 41612 Connector, Socket
- RS Stock No.:
- 452-880
- Mfr. Part No.:
- 284166 / 284166-E
- Manufacturer:
- ERNI
Bulk discount available
Subtotal (1 unit)**
MYR21.06
40 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit |
---|---|
1 - 20 | MYR21.06 |
21 - 40 | MYR20.32 |
41 + | MYR19.31 |
**price indicative
- RS Stock No.:
- 452-880
- Mfr. Part No.:
- 284166 / 284166-E
- Manufacturer:
- ERNI
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ERNI | |
Number of Contacts | 64 | |
Gender | Female | |
Number of Rows | 2 | |
Body Orientation | Vertical | |
Termination Method | Solder | |
Row Loading | a/b | |
Type | B | |
Pitch | 2.54mm | |
Contact Plating | Gold | |
Mounting Type | Through Hole | |
Class Rating | C2 | |
Current Rating | 2A | |
Contact Material | Copper Alloy | |
Maximum Contact Resistance | 20mΩ | |
Series | STVB | |
Housing Material | PBT | |
Maximum Operating Temperature | +125°C | |
Minimum Operating Temperature | -55°C | |
Select all | ||
---|---|---|
Brand ERNI | ||
Number of Contacts 64 | ||
Gender Female | ||
Number of Rows 2 | ||
Body Orientation Vertical | ||
Termination Method Solder | ||
Row Loading a/b | ||
Type B | ||
Pitch 2.54mm | ||
Contact Plating Gold | ||
Mounting Type Through Hole | ||
Class Rating C2 | ||
Current Rating 2A | ||
Contact Material Copper Alloy | ||
Maximum Contact Resistance 20mΩ | ||
Series STVB | ||
Housing Material PBT | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -55°C | ||
