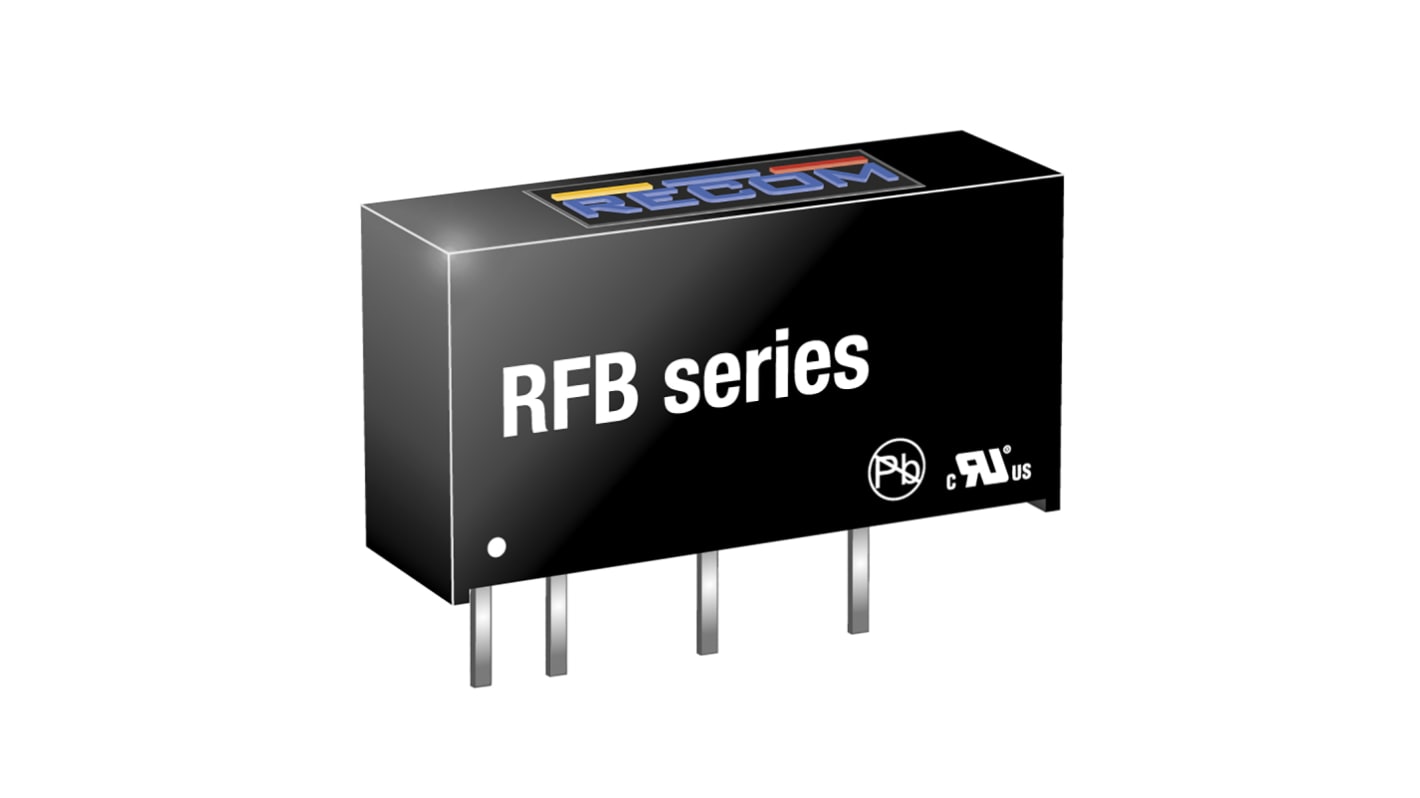

Recom RFB DC-DC Converter, 5V dc/ 200mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C Min
- RS Stock No.:
- 185-5539
- Mfr. Part No.:
- RFB-0505S
- Manufacturer:
- Recom
Bulk discount available
Subtotal (1 unit)**
MYR9.57
16 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit |
|---|---|
| 1 - 6 | MYR9.57 |
| 7 - 12 | MYR9.37 |
| 13 + | MYR9.08 |
**price indicative
- RS Stock No.:
- 185-5539
- Mfr. Part No.:
- RFB-0505S
- Manufacturer:
- Recom
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage | 5V dc | |
| Input Voltage Range | 4.5 → 5.5 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 5 V dc | |
| Output Current | 200mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | SIP | |
| Isolation Voltage | 1kV dc | |
| Width | 6mm | |
| Length | 19.6mm | |
| Depth | 10.2mm | |
| Series | RFB | |
| Load Regulation | ±15% | |
| Efficiency | 80% | |
| Standards Met | CAN/CSA-C22.2 No 60950-1, cURus, E358085, EN55032, UL60950-1 | |
| Maximum Temperature | +85°C | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 5V dc | ||
Input Voltage Range 4.5 → 5.5 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 5 V dc | ||
Output Current 200mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SIP | ||
Isolation Voltage 1kV dc | ||
Width 6mm | ||
Length 19.6mm | ||
Depth 10.2mm | ||
Series RFB | ||
Load Regulation ±15% | ||
Efficiency 80% | ||
Standards Met CAN/CSA-C22.2 No 60950-1, cURus, E358085, EN55032, UL60950-1 | ||
Maximum Temperature +85°C | ||
Minimum Temperature -40°C | ||
