XP Power JTH DC-DC Converter, 5V dc/ 3A Output, 9 → 36 V dc Input, 15W, Through Hole, +100°C Max Temp -40°C Min

RS Stock No.:: 167-2387
Mfr. Part No.:: JTH1524S05
Manufacturer:: XP Power

XP Power JTH DC-DC Converter, 5V dc/ 3A Output, 9 → 36 V dc Input, 15W, Through Hole, +100°C Max Temp -40°C Min

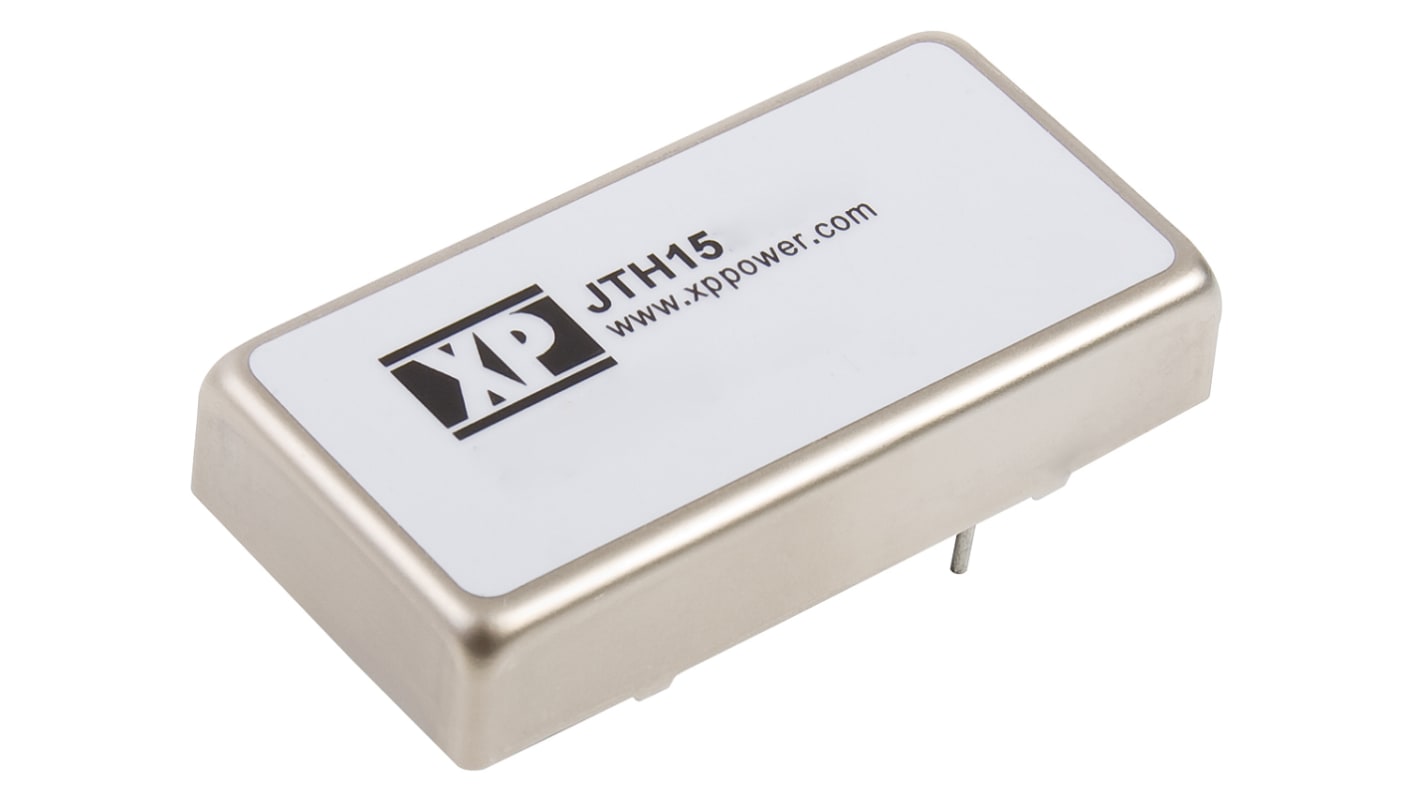

This image is representative of the product range

Bulk discount available

Price 1 Tube of 10**

MYR1,878.12

Temporarily out of stock - back order for despatch 24/03/2025, delivery within 4 working days from despatch date*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Tube(s)	Per Tube	Per Unit**
1 - 1	MYR1,878.12	MYR187.812
2 - 3	MYR1,836.81	MYR183.681
4 +	MYR1,797.38	MYR179.738

**price indicative

RS Stock No.:: 167-2387
Mfr. Part No.:: JTH1524S05
Manufacturer:: XP Power

Datasheet

Attribute	Value
Output Voltage	5V dc
Input Voltage Range	9 → 36 V dc
Power Rating	15W
Input Voltage Nominal	24 V dc
Output Current	3A
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Package	2 x 1 in
Isolation Voltage	1.5kV dc
Depth	10.1mm
Width	25.4mm
Length	50.8mm
Series	JTH
Load Regulation	±0.5 (10 to 100% Load) %, ±1(10% Load) %
Standards Met	EN 55022, EN 61000-4-2, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F
Maximum Temperature	+100°C
Minimum Temperature	-40°C

XP Power JTH DC-DC Converter, 5V dc/ 3A Output, 9 → 36 V dc Input, 15W, Through Hole, +100°C Max Temp -40°C Min

FREE delivery for orders over MYR700.00

XP Power - JTH15 Series of Isolated DC-DC Converters
