XP Power JTL DC-DC Converter, ±5V dc/ ±3A Output, 9 → 36 V dc Input, 30W, Through Hole, +75°C Max Temp -40°C Min

RS Stock No.:: 167-2439
Mfr. Part No.:: JTL3024D05
Manufacturer:: XP Power

XP Power JTL DC-DC Converter, ±5V dc/ ±3A Output, 9 → 36 V dc Input, 30W, Through Hole, +75°C Max Temp -40°C Min

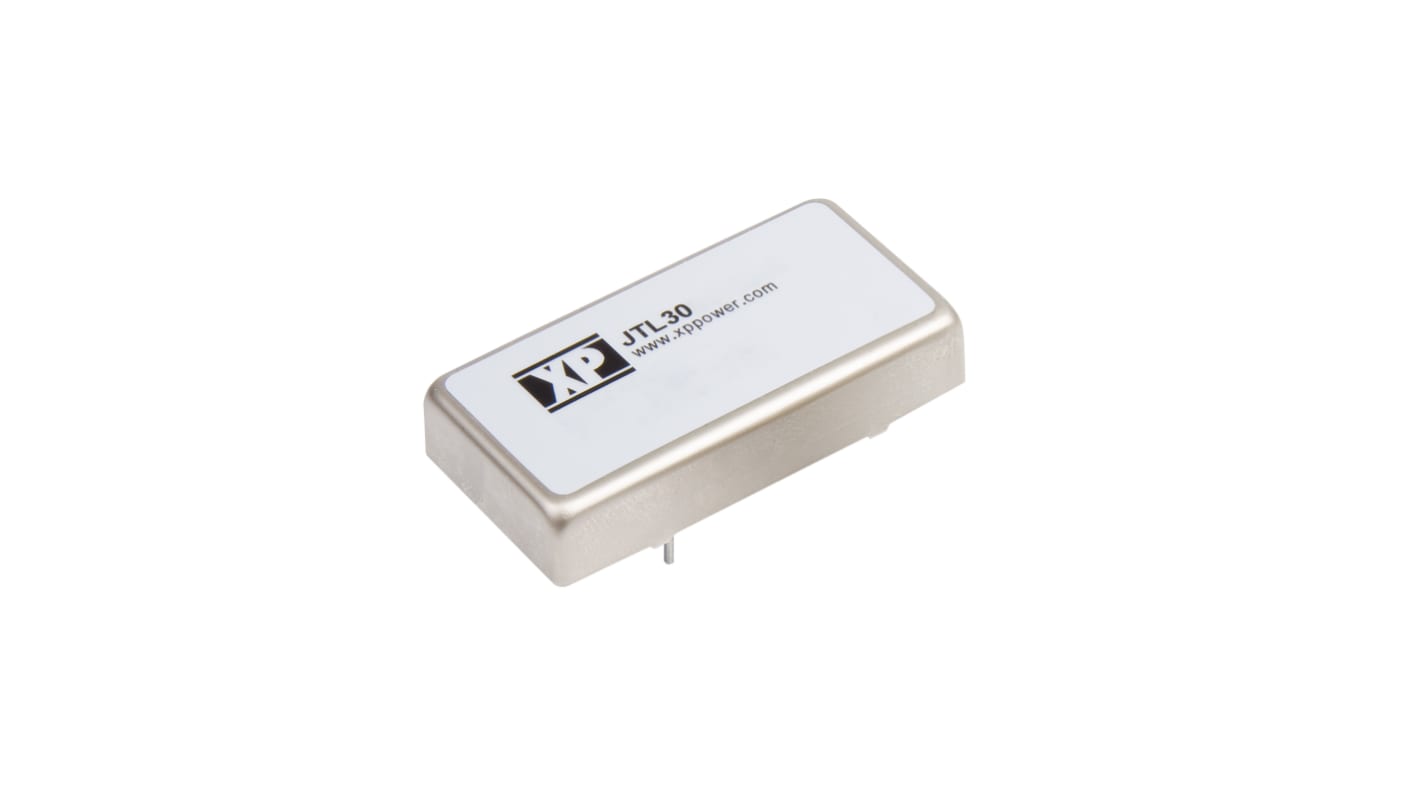

This image is representative of the product range

Bulk discount available

Price 1 Tube of 10**

MYR2,781.77

Temporarily out of stock - back order for despatch 22/03/2025, delivery within 4 working days from despatch date*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Tube(s)	Per Tube	Per Unit**
1 - 1	MYR2,781.77	MYR278.177
2 - 3	MYR2,720.58	MYR272.058
4 +	MYR2,662.17	MYR266.217

**price indicative

RS Stock No.:: 167-2439
Mfr. Part No.:: JTL3024D05
Manufacturer:: XP Power

Datasheet

Attribute	Value
Output Voltage	±5V dc
Input Voltage Range	9 → 36 V dc
Power Rating	30W
Input Voltage Nominal	24 V dc
Output Current	±3A
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	2
Package	2 x 1 in
Isolation Voltage	1.6kV dc
Length	50.8mm
Depth	10.16mm
Width	25.4mm
Series	JTL
Load Regulation	±1%
Maximum Temperature	+75°C
Minimum Temperature	-40°C
Standards Met	EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F

XP Power JTL DC-DC Converter, ±5V dc/ ±3A Output, 9 → 36 V dc Input, 30W, Through Hole, +75°C Max Temp -40°C Min

FREE delivery for orders over MYR700.00

XP Power - JTL30 Series of Isolated DC-DC Converters
