XP Power JWL40 DC-DC Converter, 12V dc/ 3.33A Output, 18 → 75 V dc Input, 40W, Through Hole, +105°C Max Temp

RS Stock No.:: 162-1377
Mfr. Part No.:: JWL4048S12
Manufacturer:: XP Power

XP Power JWL40 DC-DC Converter, 12V dc/ 3.33A Output, 18 → 75 V dc Input, 40W, Through Hole, +105°C Max Temp

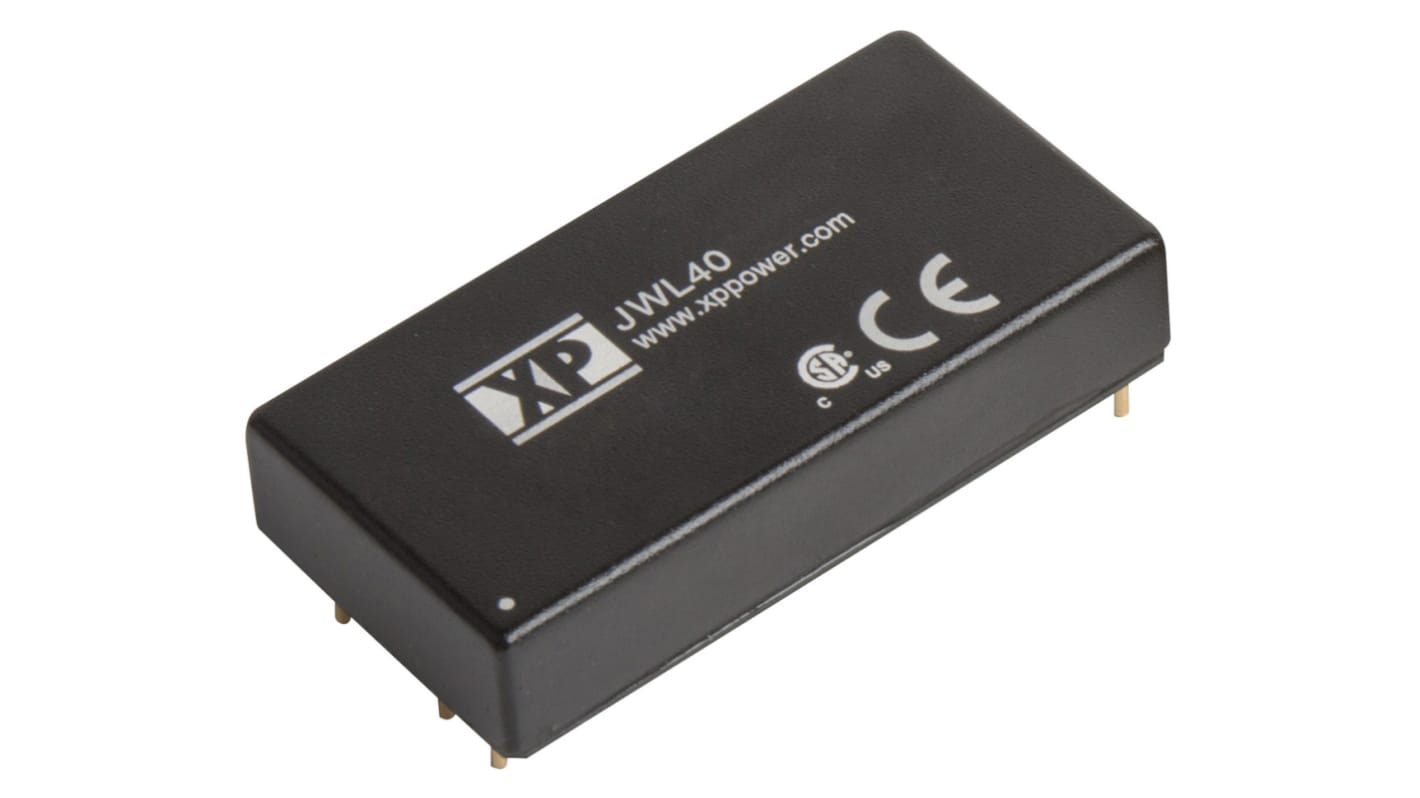

This image is representative of the product range

Temporarily out of stock - back order for despatch 07/03/2025, delivery within 4 working days from despatch date

Price 1 Tube of 10

MYR5,221.18

Tube(s)	Per Tube	Per Unit*
1 +	MYR5,221.18	MYR522.118

*price indicative

RS Stock No.:: 162-1377
Mfr. Part No.:: JWL4048S12
Manufacturer:: XP Power

Datasheet

Attribute	Value
Output Voltage	12V dc
Input Voltage Range	18 → 75 V dc
Power Rating	40W
Input Voltage Nominal	48 V dc
Output Current	3.33A
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Package	1 x 2 in
Isolation Voltage	1.5kV dc
Width	25.4mm
Length	50.8mm
Depth	10.2mm
Series	JWL40
Load Regulation	±0.5%
Maximum Temperature	+105°C
Standards Met	cCSAus, CE Certified, EN55022, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, IEC 60950-1, ITE Safety Approvals, MIL-HDBK-217F, UL/cUL60950-1
Minimum Temperature	-40°C

XP Power JWL40 DC-DC Converter, 12V dc/ 3.33A Output, 18 → 75 V dc Input, 40W, Through Hole, +105°C Max Temp

XP Power - JWL40 Series of DC-DC Converters
