XP Power JWL40 DC-DC Converter, 24V dc/ 1.67A Output, 9 → 36 V dc Input, 40W, Through Hole, +105°C Max Temp

RS Stock No.:: 167-2323
Mfr. Part No.:: JWL4024S24
Manufacturer:: XP Power

XP Power JWL40 DC-DC Converter, 24V dc/ 1.67A Output, 9 → 36 V dc Input, 40W, Through Hole, +105°C Max Temp

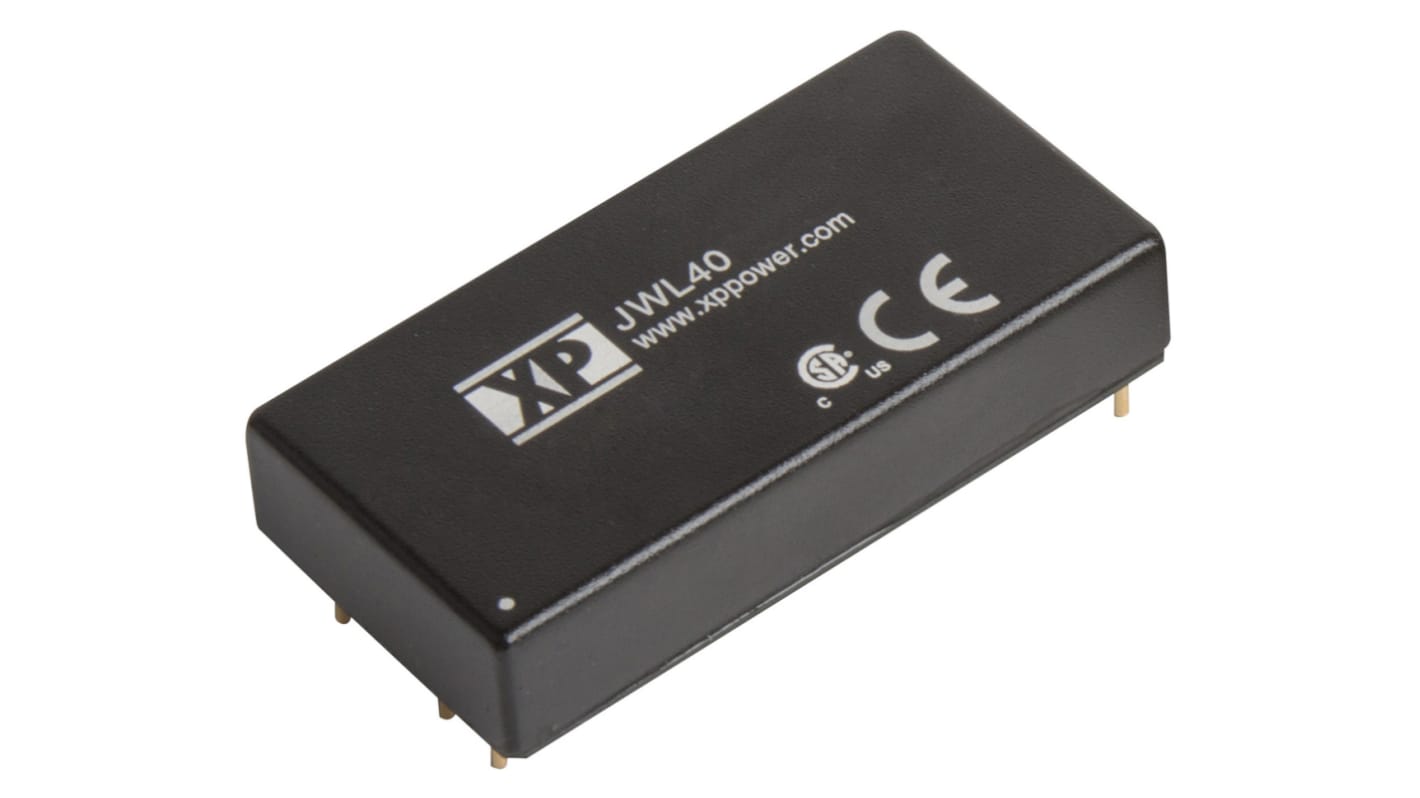

This image is representative of the product range

Price 1 Tube of 10**

MYR4,173.68

Temporarily out of stock - back order for despatch 25/08/2025, delivery within 4 working days from despatch date*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Tube(s)	Per Tube	Per Unit**
1 +	MYR4,173.68	MYR417.368

**price indicative

RS Stock No.:: 167-2323
Mfr. Part No.:: JWL4024S24
Manufacturer:: XP Power

Datasheet

Attribute	Value
Output Voltage	24V dc
Input Voltage Range	9 → 36 V dc
Power Rating	40W
Input Voltage Nominal	24 V dc
Output Current	1.67A
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Package	1 x 2 in
Isolation Voltage	1.5kV dc
Width	25.4mm
Depth	11mm
Length	50.8mm
Series	JWL40
Load Regulation	±0.5%
Minimum Temperature	-40°C
Standards Met	cCSAus, CE Certified, EN55022, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, IEC 60950-1, ITE Safety Approvals, MIL-HDBK-217F, UL/cUL60950-1
Maximum Temperature	+105°C

XP Power JWL40 DC-DC Converter, 24V dc/ 1.67A Output, 9 → 36 V dc Input, 40W, Through Hole, +105°C Max Temp

FREE delivery for orders over MYR700.00

XP Power - JWL40 Series of DC-DC Converters
