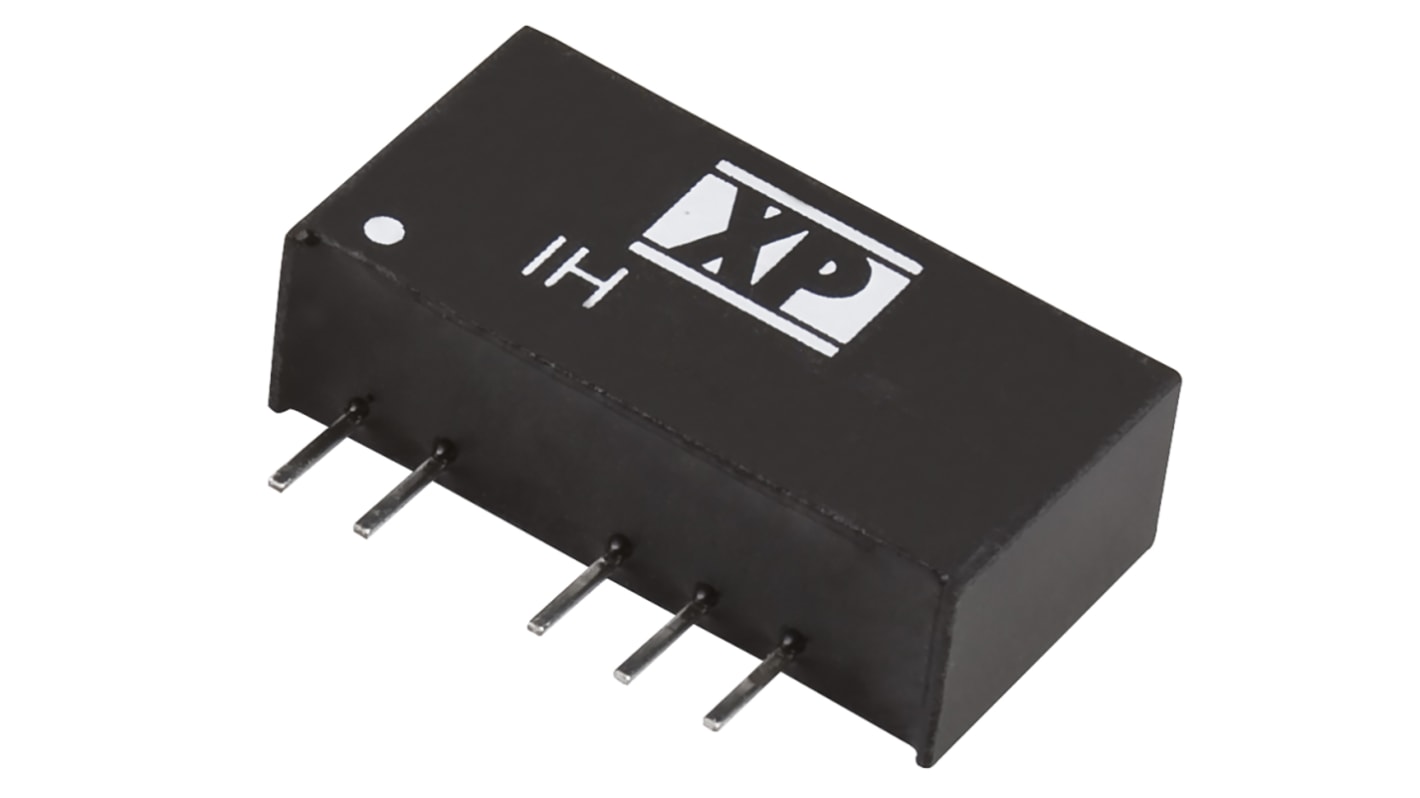

XP Power IH DC-DC Converter, ±5V dc/ ±200mA Output, 4.5 → 5.5 V dc Input, 2W, Through Hole, +85°C Max Temp -40°C
- RS Stock No.:
- 122-6918
- Distrelec Article No.:
- 302-24-515
- Mfr. Part No.:
- IH0505S
- Manufacturer:
- XP Power
Bulk discount available
Subtotal (1 unit)**
MYR34.92
9 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit |
|---|---|
| 1 - 4 | MYR34.92 |
| 5 - 9 | MYR33.85 |
| 10 + | MYR32.81 |
**price indicative
- RS Stock No.:
- 122-6918
- Distrelec Article No.:
- 302-24-515
- Mfr. Part No.:
- IH0505S
- Manufacturer:
- XP Power
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Output Voltage | ±5V dc | |
| Input Voltage Range | 4.5 → 5.5 V dc | |
| Power Rating | 2W | |
| Input Voltage Nominal | 5 V dc | |
| Output Current | ±200mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Package | SIP | |
| Isolation Voltage | 1kV dc | |
| Depth | 10.16mm | |
| Length | 19.5mm | |
| Width | 7.2mm | |
| Series | IH | |
| Load Regulation | ±10% | |
| Maximum Temperature | +85°C | |
| Efficiency | 72% | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand XP Power | ||
Output Voltage ±5V dc | ||
Input Voltage Range 4.5 → 5.5 V dc | ||
Power Rating 2W | ||
Input Voltage Nominal 5 V dc | ||
Output Current ±200mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package SIP | ||
Isolation Voltage 1kV dc | ||
Depth 10.16mm | ||
Length 19.5mm | ||
Width 7.2mm | ||
Series IH | ||
Load Regulation ±10% | ||
Maximum Temperature +85°C | ||
Efficiency 72% | ||
Minimum Temperature -40°C | ||
