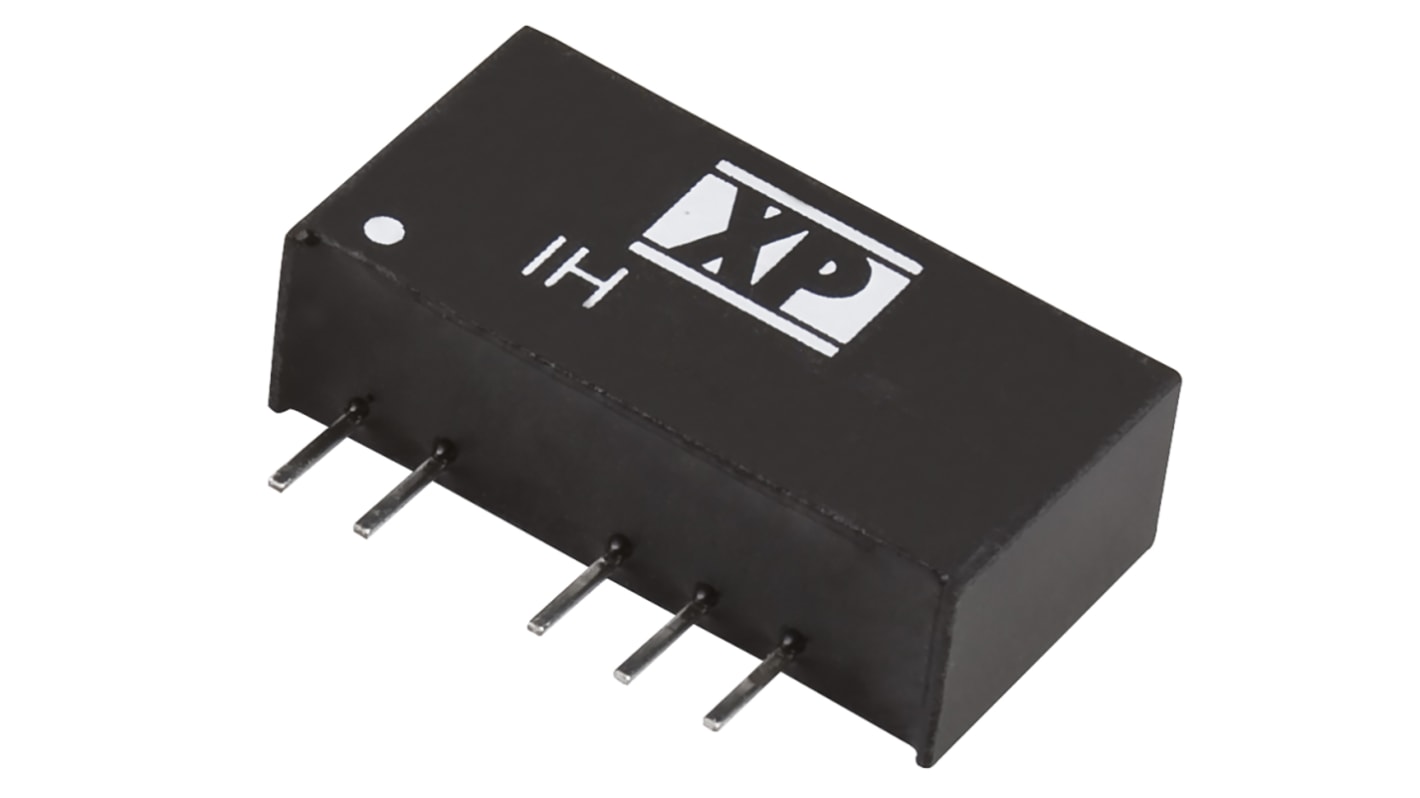

XP Power IH DC-DC Converter, ±5V dc/ ±200mA Output, 10.8 → 13.2 V dc Input, 2W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 161-9127
- Mfr. Part No.:
- IH1205S
- Manufacturer:
- XP Power
Bulk discount available
Subtotal (1 tube of 20 units)**
MYR769.23
Temporarily out of stock - back order for despatch 12/10/2025, delivery within 4 working days from despatch date*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Tube(s) | Per Tube | Per Unit** |
|---|---|---|
| 1 - 1 | MYR769.23 | MYR38.462 |
| 2 - 3 | MYR752.32 | MYR37.616 |
| 4 + | MYR736.14 | MYR36.807 |
**price indicative
- RS Stock No.:
- 161-9127
- Mfr. Part No.:
- IH1205S
- Manufacturer:
- XP Power
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Output Voltage | ±5V dc | |
| Input Voltage Range | 10.8 → 13.2 V dc | |
| Power Rating | 2W | |
| Input Voltage Nominal | 12 V dc | |
| Output Current | ±200mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Package | SIP | |
| Isolation Voltage | 1kV dc | |
| Length | 19.5mm | |
| Depth | 10.16mm | |
| Width | 7.2mm | |
| Series | IH | |
| Load Regulation | ±10% | |
| Efficiency | 75% | |
| Maximum Temperature | +85°C | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand XP Power | ||
Output Voltage ±5V dc | ||
Input Voltage Range 10.8 → 13.2 V dc | ||
Power Rating 2W | ||
Input Voltage Nominal 12 V dc | ||
Output Current ±200mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package SIP | ||
Isolation Voltage 1kV dc | ||
Length 19.5mm | ||
Depth 10.16mm | ||
Width 7.2mm | ||
Series IH | ||
Load Regulation ±10% | ||
Efficiency 75% | ||
Maximum Temperature +85°C | ||
Minimum Temperature -40°C | ||
