Select all	Attribute	Value
	Brand	DiodesZetex
	Maximum Output Voltage	1.8 V, 3.3 V
	Minimum Input Voltage	2.5 V
	Maximum Input Voltage	5.5 V
	Maximum Output Current	1A
	Converter Type	Step Down
	Number of Outputs	2
	Output Type	Fixed
	Maximum Switching Frequency	1.8 MHz
	Mounting Type	Surface Mount
	Package Type	WDFN
	Pin Count	12
	Maximum Operating Temperature	+85 °C
	Minimum Operating Temperature	-40 °C
	Switching Regulator	Yes
	Load Regulation	1.5 %
	Line Regulation	0.5 %/V
	Length	3.05mm
	Height	0.75mm
	Width	3.05mm
	Efficiency	96%
	Dimensions	3.05 x 3.05 x 0.75mm

	Select all
	Brand DiodesZetex
	Maximum Output Voltage 1.8 V, 3.3 V
	Minimum Input Voltage 2.5 V
	Maximum Input Voltage 5.5 V
	Maximum Output Current 1A
	Converter Type Step Down
	Number of Outputs 2
	Output Type Fixed
	Maximum Switching Frequency 1.8 MHz
	Mounting Type Surface Mount
	Package Type WDFN
	Pin Count 12
	Maximum Operating Temperature +85 °C
	Minimum Operating Temperature -40 °C
	Switching Regulator Yes
	Load Regulation 1.5 %
	Line Regulation 0.5 %/V
	Length 3.05mm
	Height 0.75mm
	Width 3.05mm
	Efficiency 96%
	Dimensions 3.05 x 3.05 x 0.75mm

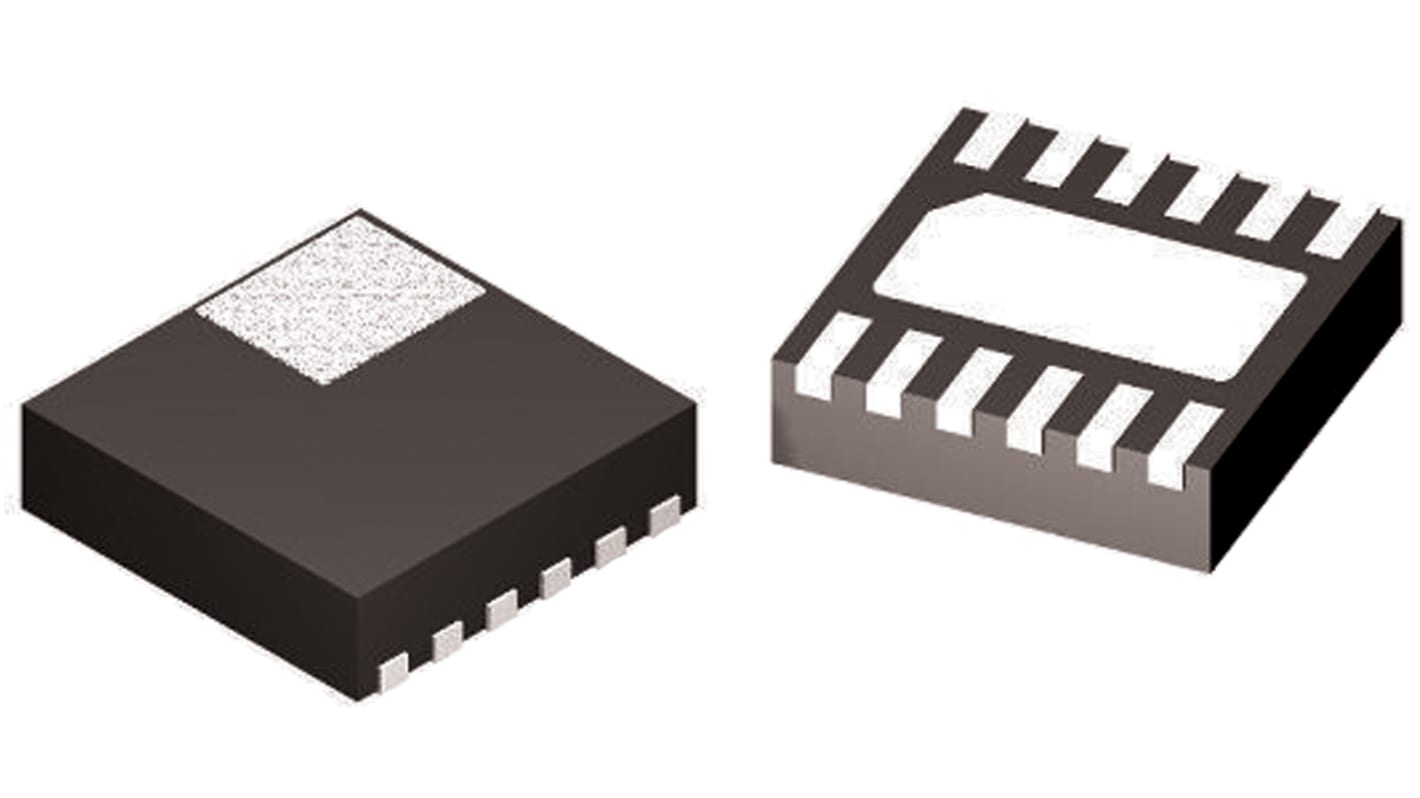

DiodesZetex PAM2306AYPKE, Dual-Channel, Step Down DC-DC Converter 12-Pin, WDFN

FREE delivery for orders over MYR500.00

Step-Down Switching Regulators, Diodes Inc

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
