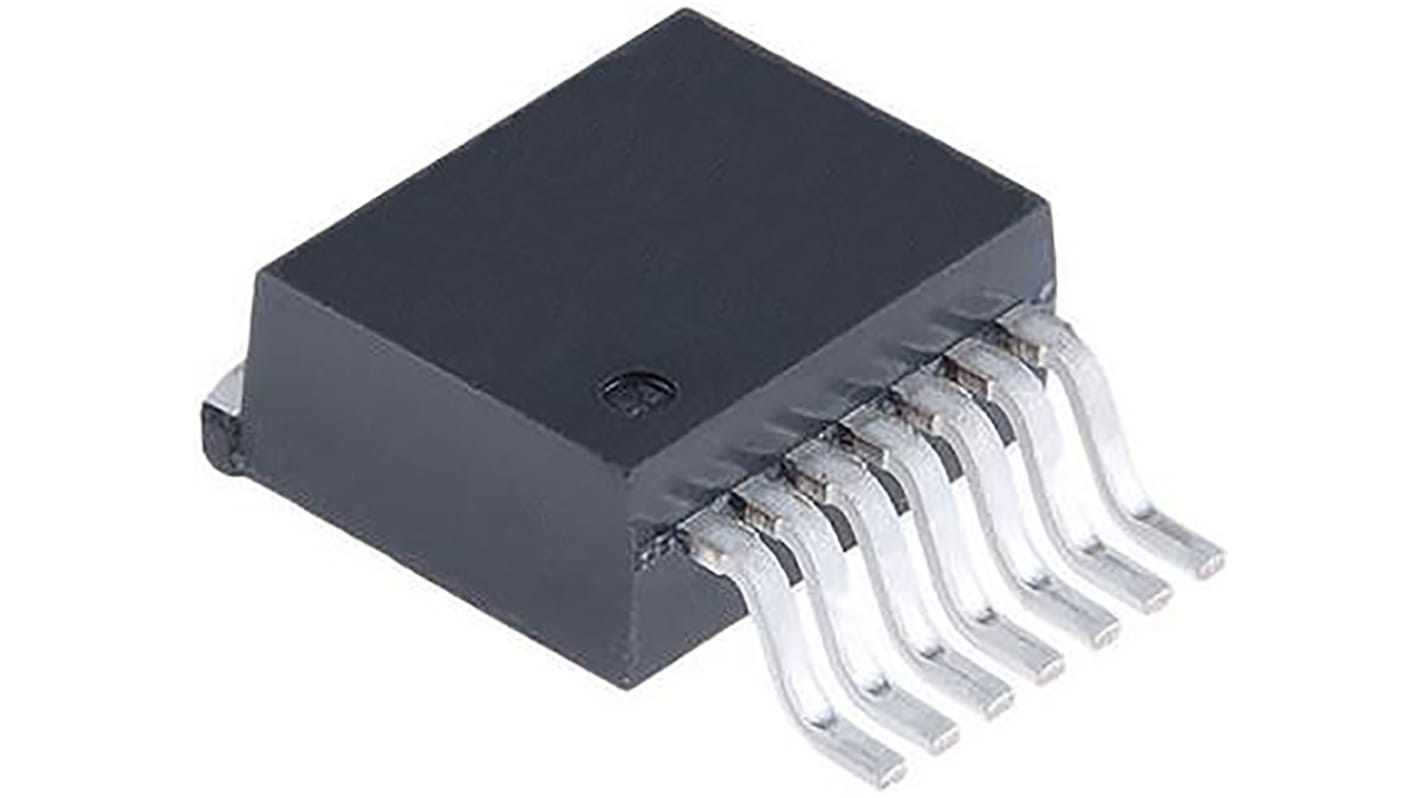

Wurth Elektronik 171012402, 1-Channel, Step Down DC-DC Converter 7-Pin, PFM
- RS Stock No.:
- 162-3793
- Mfr. Part No.:
- 171012402
- Manufacturer:
- Wurth Elektronik
Subtotal (1 reel of 250 units)**
MYR17,081.00
Available for back order.*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Units | Per Unit | Per Reel** |
---|---|---|
250 + | MYR68.324 | MYR17,081.00 |
**price indicative
- RS Stock No.:
- 162-3793
- Mfr. Part No.:
- 171012402
- Manufacturer:
- Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Wurth Elektronik | |
Minimum Output Voltage | 5 V | |
Maximum Output Voltage | 24 V | |
Minimum Input Voltage | 6 V | |
Maximum Input Voltage | 42 V | |
Maximum Output Current | 1.5A | |
Converter Type | Step Down | |
Number of Outputs | 1 | |
Maximum Switching Frequency | 0.8 MHz | |
Mounting Type | Surface Mount | |
Package Type | PFM | |
Pin Count | 7 | |
Maximum Operating Temperature | +125 °C | |
Minimum Operating Temperature | -40 °C | |
Load Regulation | 1.5 mV/A | |
Line Regulation | 0.01 % | |
Length | 10.16mm | |
Dimensions | 10.16 x 9.85 x 4.57mm | |
Width | 9.85mm | |
Height | 4.57mm | |
Select all | ||
---|---|---|
Brand Wurth Elektronik | ||
Minimum Output Voltage 5 V | ||
Maximum Output Voltage 24 V | ||
Minimum Input Voltage 6 V | ||
Maximum Input Voltage 42 V | ||
Maximum Output Current 1.5A | ||
Converter Type Step Down | ||
Number of Outputs 1 | ||
Maximum Switching Frequency 0.8 MHz | ||
Mounting Type Surface Mount | ||
Package Type PFM | ||
Pin Count 7 | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Temperature -40 °C | ||
Load Regulation 1.5 mV/A | ||
Line Regulation 0.01 % | ||
Length 10.16mm | ||
Dimensions 10.16 x 9.85 x 4.57mm | ||
Width 9.85mm | ||
Height 4.57mm | ||
