Units	Per Unit
1 - 62	MYR126.58
63 - 124	MYR118.33
125 +	MYR111.80

Select all	Attribute	Value
	Brand	Wurth Elektronik
	Minimum Output Voltage	0.8 V
	Maximum Output Voltage	6 V
	Minimum Input Voltage	6 V
	Maximum Input Voltage	36 V
	Maximum Output Current	5A
	Converter Type	Step Down
	Number of Outputs	1
	Mounting Type	Surface Mount
	Maximum Switching Frequency	914 kHz
	Package Type	PFM
	Pin Count	7
	Maximum Operating Temperature	+125 °C
	Minimum Operating Temperature	-40 °C
	Length	10.16mm
	Height	4.57mm
	Line Regulation	0.02 %
	Width	9.85mm
	Dimensions	10.16 x 9.85 x 4.57mm
	Load Regulation	1 mV/A

	Select all
	Brand Wurth Elektronik
	Minimum Output Voltage 0.8 V
	Maximum Output Voltage 6 V
	Minimum Input Voltage 6 V
	Maximum Input Voltage 36 V
	Maximum Output Current 5A
	Converter Type Step Down
	Number of Outputs 1
	Mounting Type Surface Mount
	Maximum Switching Frequency 914 kHz
	Package Type PFM
	Pin Count 7
	Maximum Operating Temperature +125 °C
	Minimum Operating Temperature -40 °C
	Length 10.16mm
	Height 4.57mm
	Line Regulation 0.02 %
	Width 9.85mm
	Dimensions 10.16 x 9.85 x 4.57mm
	Load Regulation 1 mV/A

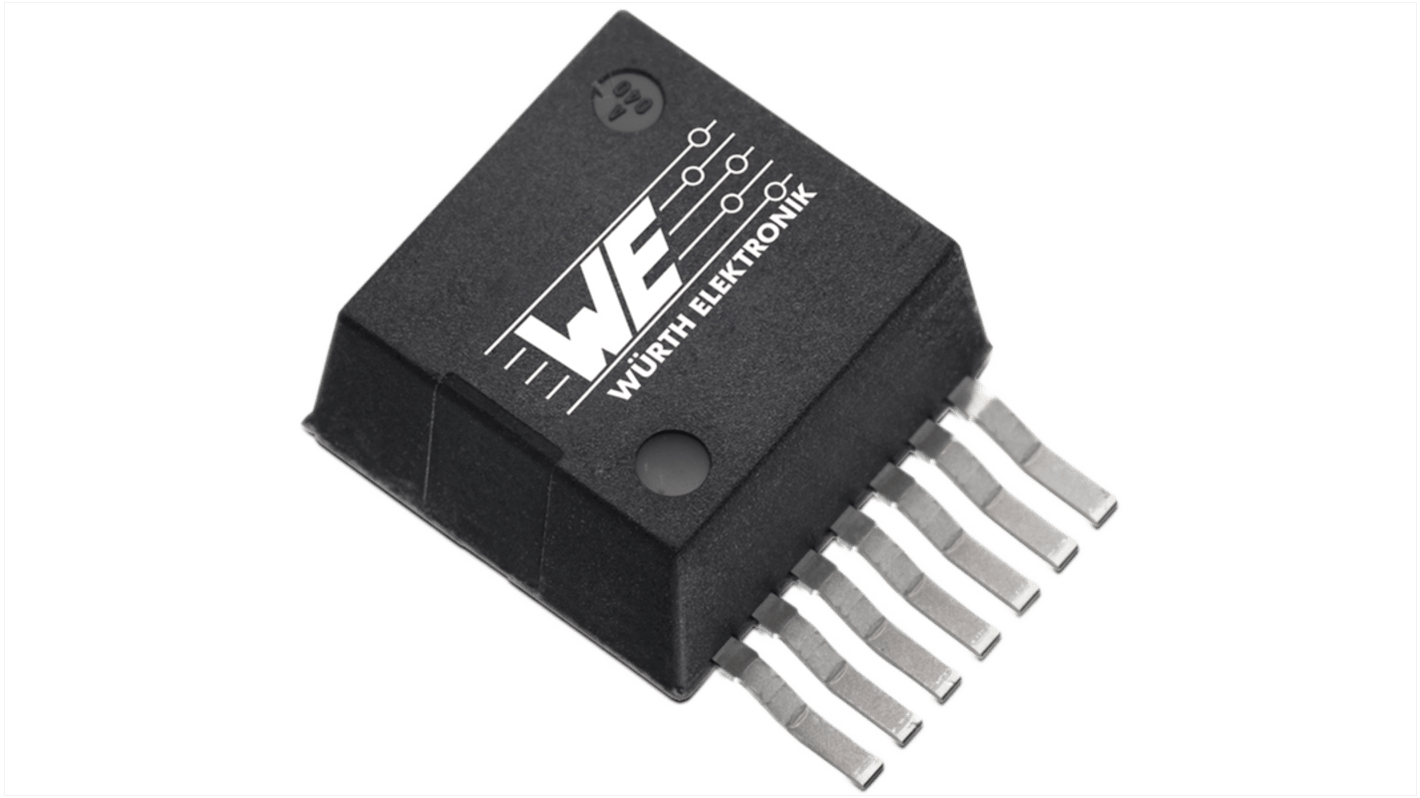

Wurth Elektronik 171050601, 1-Channel, Step Down DC-DC Converter 7-Pin, PFM

FREE delivery for orders over MYR500.00

MagI³C-VDRM Variable Step-Down Regulator Modules, Wurth Elektronik
