Units	Per Unit	Per Reel**
1000 - 1000	MYR1.216	MYR1,216.00
2000 - 3000	MYR1.189	MYR1,189.00
4000 +	MYR1.167	MYR1,167.00

Select all	Attribute	Value
	Brand	DiodesZetex
	Transistor Type	NPN
	Maximum Continuous Collector Current	1.5 A
	Maximum Collector Emitter Voltage	120 V
	Maximum Emitter Base Voltage	10 V
	Package Type	SOT-223
	Mounting Type	Surface Mount
	Pin Count	3 + Tab
	Transistor Configuration	Single
	Number of Elements per Chip	1
	Minimum DC Current Gain	500
	Maximum Base Emitter Saturation Voltage	1.8 V
	Maximum Collector Base Voltage	140 V
	Maximum Collector Emitter Saturation Voltage	1.5 V
	Maximum Collector Cut-off Current	0.00001mA
	Length	6.7mm
	Width	3.7mm
	Maximum Operating Temperature	+150 °C
	Height	1.65mm
	Dimensions	6.7 x 3.7 x 1.65mm
	Minimum Operating Temperature	-55 °C

	Select all
	Brand DiodesZetex
	Transistor Type NPN
	Maximum Continuous Collector Current 1.5 A
	Maximum Collector Emitter Voltage 120 V
	Maximum Emitter Base Voltage 10 V
	Package Type SOT-223
	Mounting Type Surface Mount
	Pin Count 3 + Tab
	Transistor Configuration Single
	Number of Elements per Chip 1
	Minimum DC Current Gain 500
	Maximum Base Emitter Saturation Voltage 1.8 V
	Maximum Collector Base Voltage 140 V
	Maximum Collector Emitter Saturation Voltage 1.5 V
	Maximum Collector Cut-off Current 0.00001mA
	Length 6.7mm
	Width 3.7mm
	Maximum Operating Temperature +150 °C
	Height 1.65mm
	Dimensions 6.7 x 3.7 x 1.65mm
	Minimum Operating Temperature -55 °C

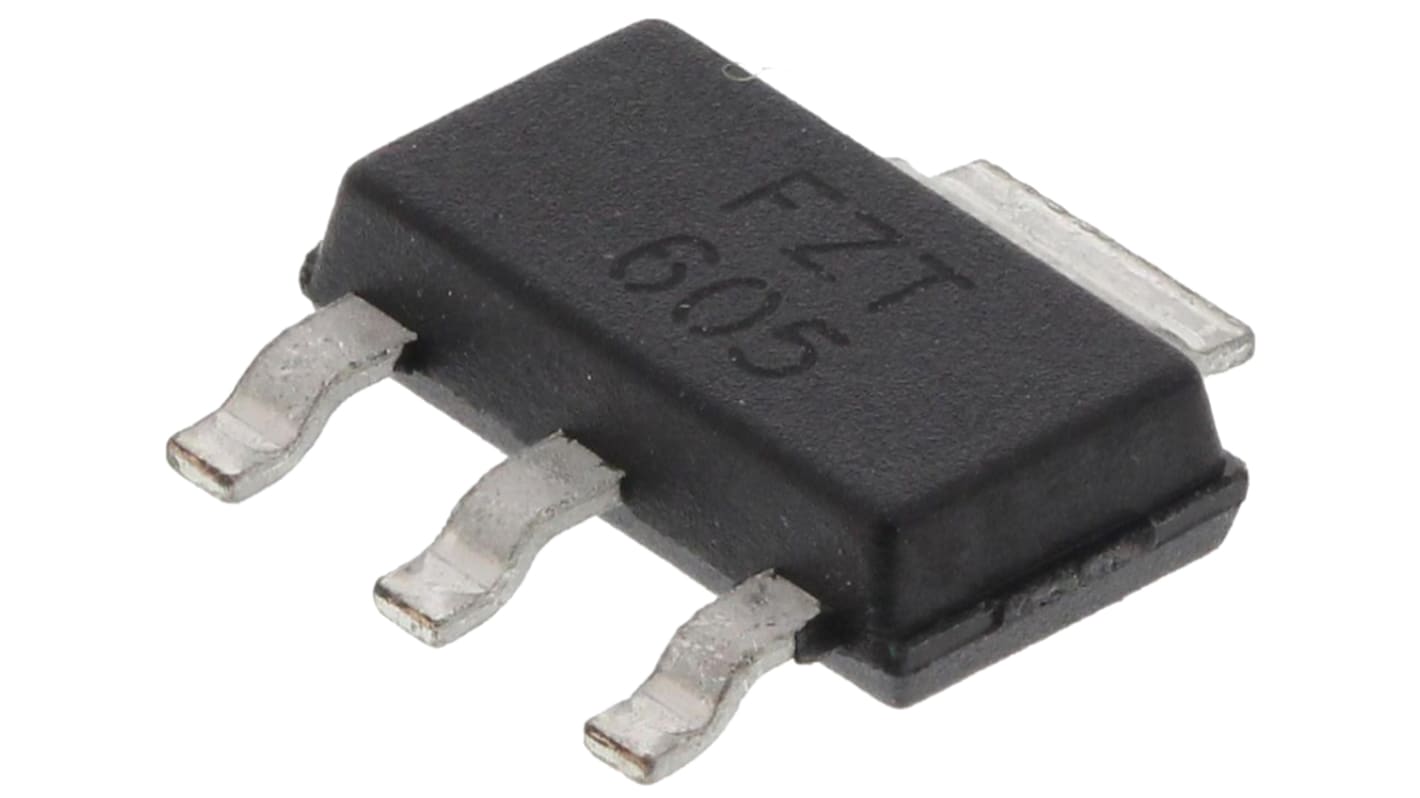

Diodes Inc FZT605TA NPN Darlington Transistor, 1.5 A 120 V HFE:500, 3 + Tab-Pin SOT-223

FREE delivery for orders over MYR500.00

Darlington Transistors, Diodes Inc

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
