Diodes Inc FZT696BTA NPN Darlington Transistor, 500 mA 180 V HFE:150, 3 + Tab-Pin SOT-223

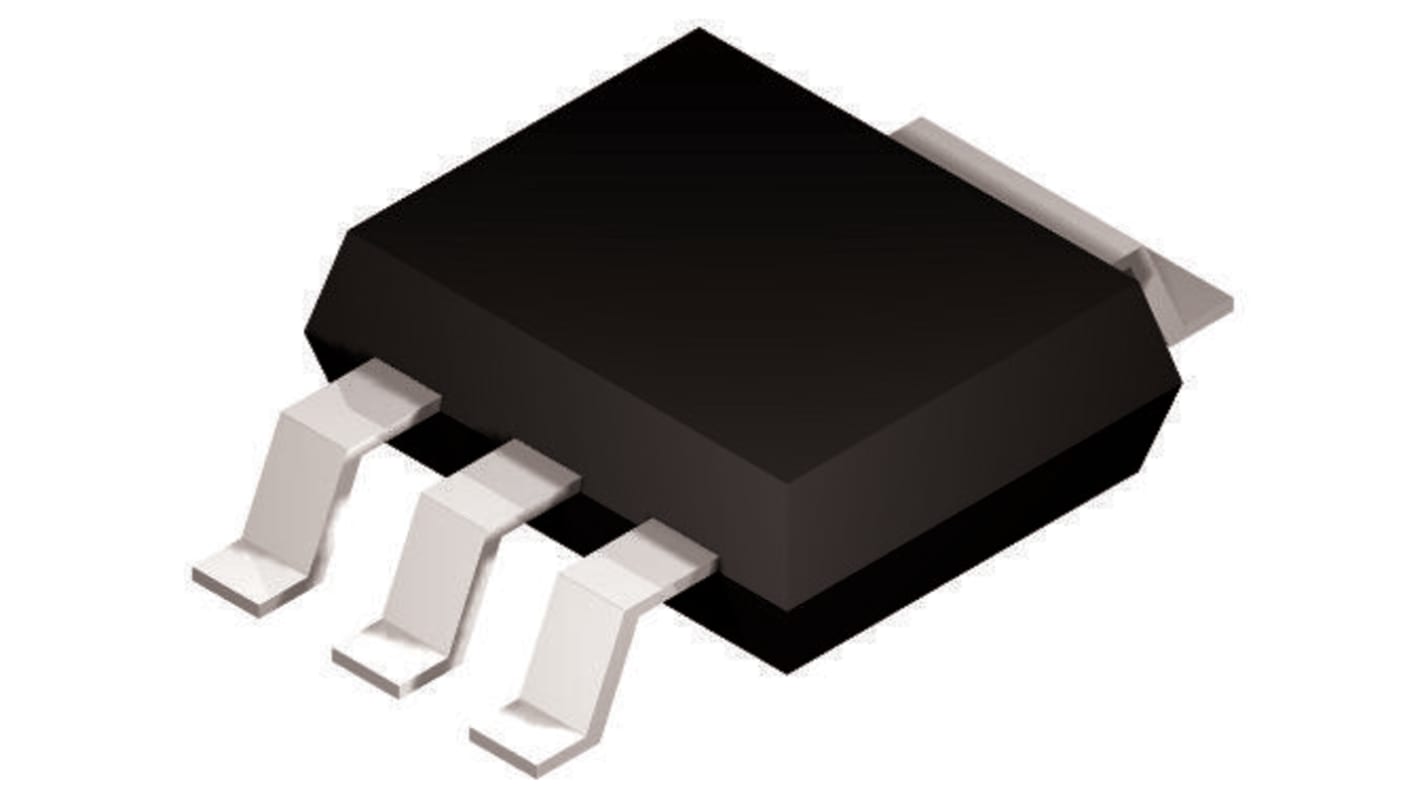

This image is representative of the product range

Bulk discount available

Subtotal (1 tape of 10 units)**

MYR34.58

580 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

Real time qty checker

**price indicative

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	DiodesZetex
	Transistor Type	NPN
	Maximum Continuous Collector Current	500 mA
	Maximum Collector Emitter Voltage	180 V
	Maximum Emitter Base Voltage	5 V
	Package Type	SOT-223
	Mounting Type	Surface Mount
	Pin Count	3 + Tab
	Transistor Configuration	Single
	Number of Elements per Chip	1
	Minimum DC Current Gain	150
	Maximum Base Emitter Saturation Voltage	0.9 V
	Maximum Collector Base Voltage	180 V
	Maximum Collector Emitter Saturation Voltage	0.25 V
	Maximum Collector Cut-off Current	0.1µA
	Length	6.55mm
	Width	3.55mm
	Maximum Power Dissipation	2 W
	Maximum Operating Temperature	+150 °C
	Dimensions	6.55 x 3.55 x 1.65mm
	Height	1.65mm
	Minimum Operating Temperature	-55 °C

	Select all
	Brand DiodesZetex
	Transistor Type NPN
	Maximum Continuous Collector Current 500 mA
	Maximum Collector Emitter Voltage 180 V
	Maximum Emitter Base Voltage 5 V
	Package Type SOT-223
	Mounting Type Surface Mount
	Pin Count 3 + Tab
	Transistor Configuration Single
	Number of Elements per Chip 1
	Minimum DC Current Gain 150
	Maximum Base Emitter Saturation Voltage 0.9 V
	Maximum Collector Base Voltage 180 V
	Maximum Collector Emitter Saturation Voltage 0.25 V
	Maximum Collector Cut-off Current 0.1µA
	Length 6.55mm
	Width 3.55mm
	Maximum Power Dissipation 2 W
	Maximum Operating Temperature +150 °C
	Dimensions 6.55 x 3.55 x 1.65mm
	Height 1.65mm
	Minimum Operating Temperature -55 °C
