Diodes Inc FZT600BTA NPN Darlington Transistor, 2 A 140 V HFE:10000, 3 + Tab-Pin SOT-223 | RS

Diodes Inc FZT600BTA NPN Darlington Transistor, 2 A 140 V HFE:10000, 3 + Tab-Pin SOT-223

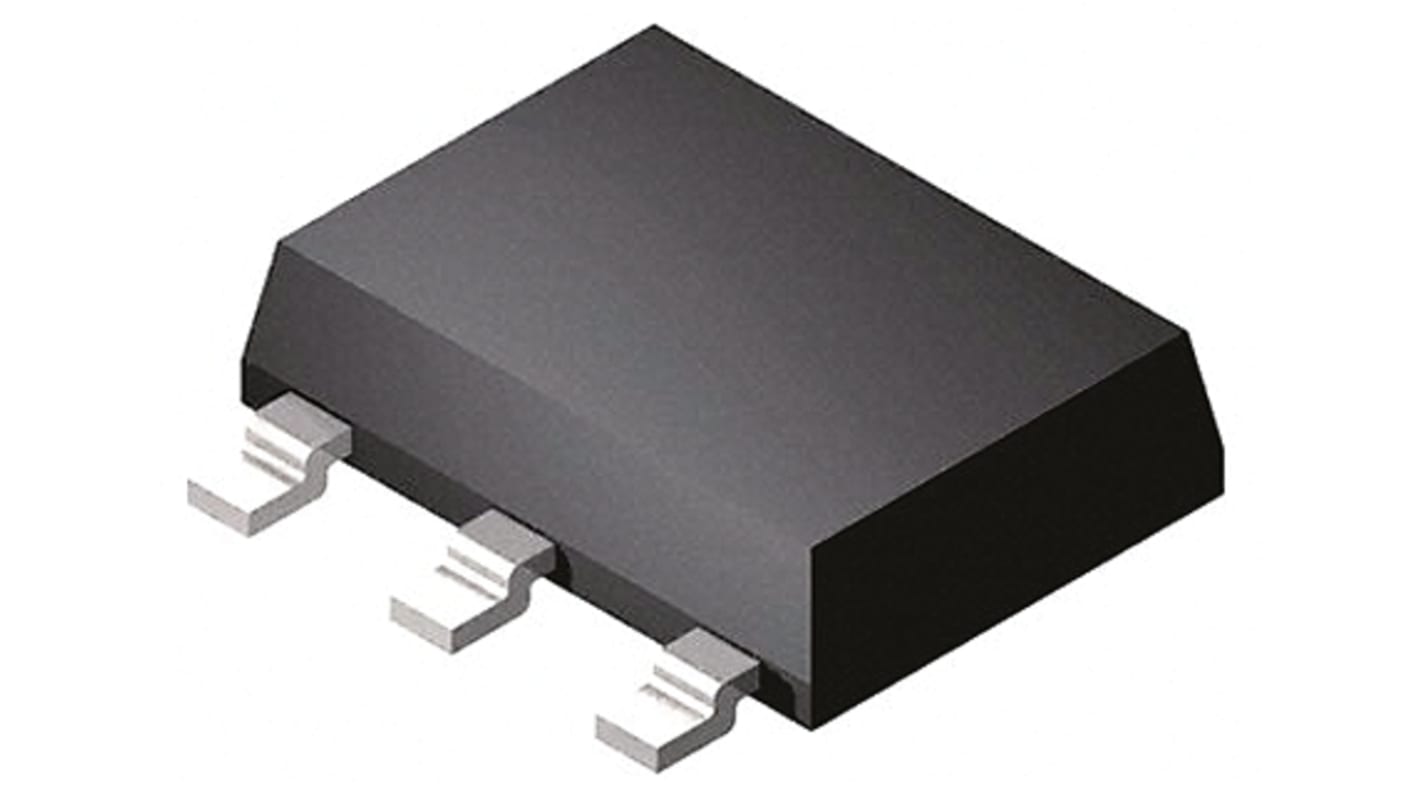

This image is representative of the product range

Bulk discount available

Subtotal (1 pack of 10 units)**

MYR26.85

670 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

Real time qty checker

**price indicative

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	DiodesZetex
	Transistor Type	NPN
	Maximum Continuous Collector Current	2 A
	Maximum Collector Emitter Voltage	140 V
	Maximum Emitter Base Voltage	160 V
	Package Type	SOT-223
	Mounting Type	Surface Mount
	Pin Count	3 + Tab
	Transistor Configuration	Single
	Number of Elements per Chip	1
	Minimum DC Current Gain	10000
	Maximum Base Emitter Saturation Voltage	1.9 V
	Maximum Collector Base Voltage	160 V
	Maximum Collector Emitter Saturation Voltage	1.2 V
	Maximum Collector Cut-off Current	10µA
	Height	1.65mm
	Width	3.55mm
	Dimensions	6.55 x 3.55 x 1.65mm
	Length	6.55mm
	Maximum Power Dissipation	2 W
	Maximum Operating Temperature	+150 °C
	Minimum Operating Temperature	-55 °C

	Select all
	Brand DiodesZetex
	Transistor Type NPN
	Maximum Continuous Collector Current 2 A
	Maximum Collector Emitter Voltage 140 V
	Maximum Emitter Base Voltage 160 V
	Package Type SOT-223
	Mounting Type Surface Mount
	Pin Count 3 + Tab
	Transistor Configuration Single
	Number of Elements per Chip 1
	Minimum DC Current Gain 10000
	Maximum Base Emitter Saturation Voltage 1.9 V
	Maximum Collector Base Voltage 160 V
	Maximum Collector Emitter Saturation Voltage 1.2 V
	Maximum Collector Cut-off Current 10µA
	Height 1.65mm
	Width 3.55mm
	Dimensions 6.55 x 3.55 x 1.65mm
	Length 6.55mm
	Maximum Power Dissipation 2 W
	Maximum Operating Temperature +150 °C
	Minimum Operating Temperature -55 °C
