Units	Per Unit	Per Reel**
3000 - 3000	MYR0.419	MYR1,257.00
6000 - 9000	MYR0.41	MYR1,230.00
12000 +	MYR0.403	MYR1,209.00

Select all	Attribute	Value
	Brand	DiodesZetex
	Transistor Type	PNP
	Maximum Continuous Collector Current	-500 mA
	Maximum Collector Emitter Voltage	60 V
	Maximum Emitter Base Voltage	-10 V
	Package Type	SOT-23
	Mounting Type	Surface Mount
	Pin Count	3
	Transistor Configuration	Single
	Number of Elements per Chip	1
	Minimum DC Current Gain	10000
	Maximum Base Emitter Saturation Voltage	-1.5 V
	Maximum Collector Base Voltage	-80 V
	Maximum Collector Emitter Saturation Voltage	-1 V
	Maximum Collector Cut-off Current	-10µA
	Dimensions	3 x 1.4 x 1.1mm
	Maximum Operating Temperature	+150 °C
	Minimum Operating Temperature	-55 °C
	Height	1.1mm
	Width	1.4mm
	Maximum Power Dissipation	350 mW
	Length	3mm

	Select all
	Brand DiodesZetex
	Transistor Type PNP
	Maximum Continuous Collector Current -500 mA
	Maximum Collector Emitter Voltage 60 V
	Maximum Emitter Base Voltage -10 V
	Package Type SOT-23
	Mounting Type Surface Mount
	Pin Count 3
	Transistor Configuration Single
	Number of Elements per Chip 1
	Minimum DC Current Gain 10000
	Maximum Base Emitter Saturation Voltage -1.5 V
	Maximum Collector Base Voltage -80 V
	Maximum Collector Emitter Saturation Voltage -1 V
	Maximum Collector Cut-off Current -10µA
	Dimensions 3 x 1.4 x 1.1mm
	Maximum Operating Temperature +150 °C
	Minimum Operating Temperature -55 °C
	Height 1.1mm
	Width 1.4mm
	Maximum Power Dissipation 350 mW
	Length 3mm

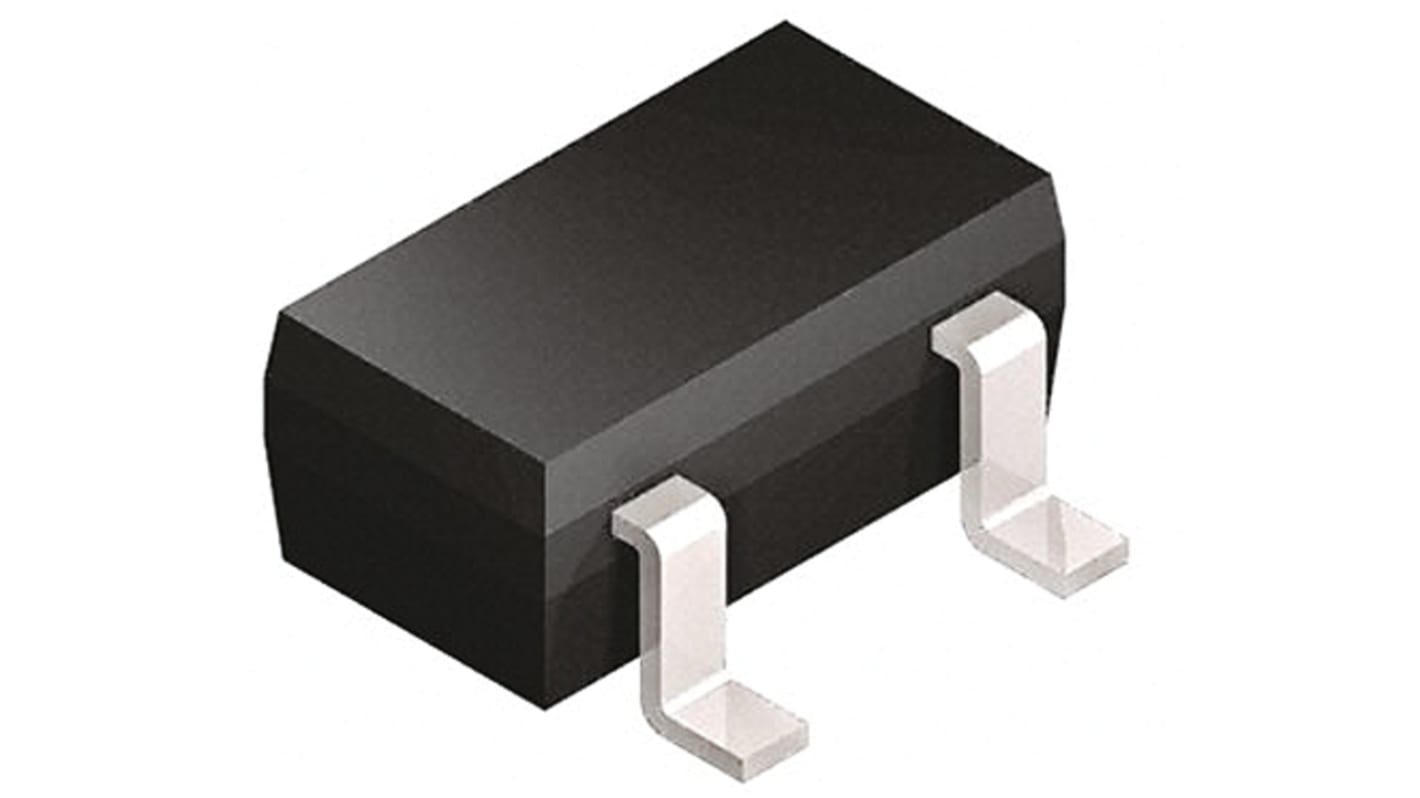

Diodes Inc BCV46TA PNP Darlington Transistor, -500 mA 60 V HFE:10000, 3-Pin SOT-23

FREE delivery for orders over MYR500.00

Darlington Transistors, Diodes Inc
