onsemi BD675AG NPN Darlington Transistor, 4 A 45 V HFE:750, 3-Pin TO-225

RS Stock No.:: 545-0090
Mfr. Part No.:: BD675AG
Manufacturer:: onsemi

onsemi BD675AG NPN Darlington Transistor, 4 A 45 V HFE:750, 3-Pin TO-225

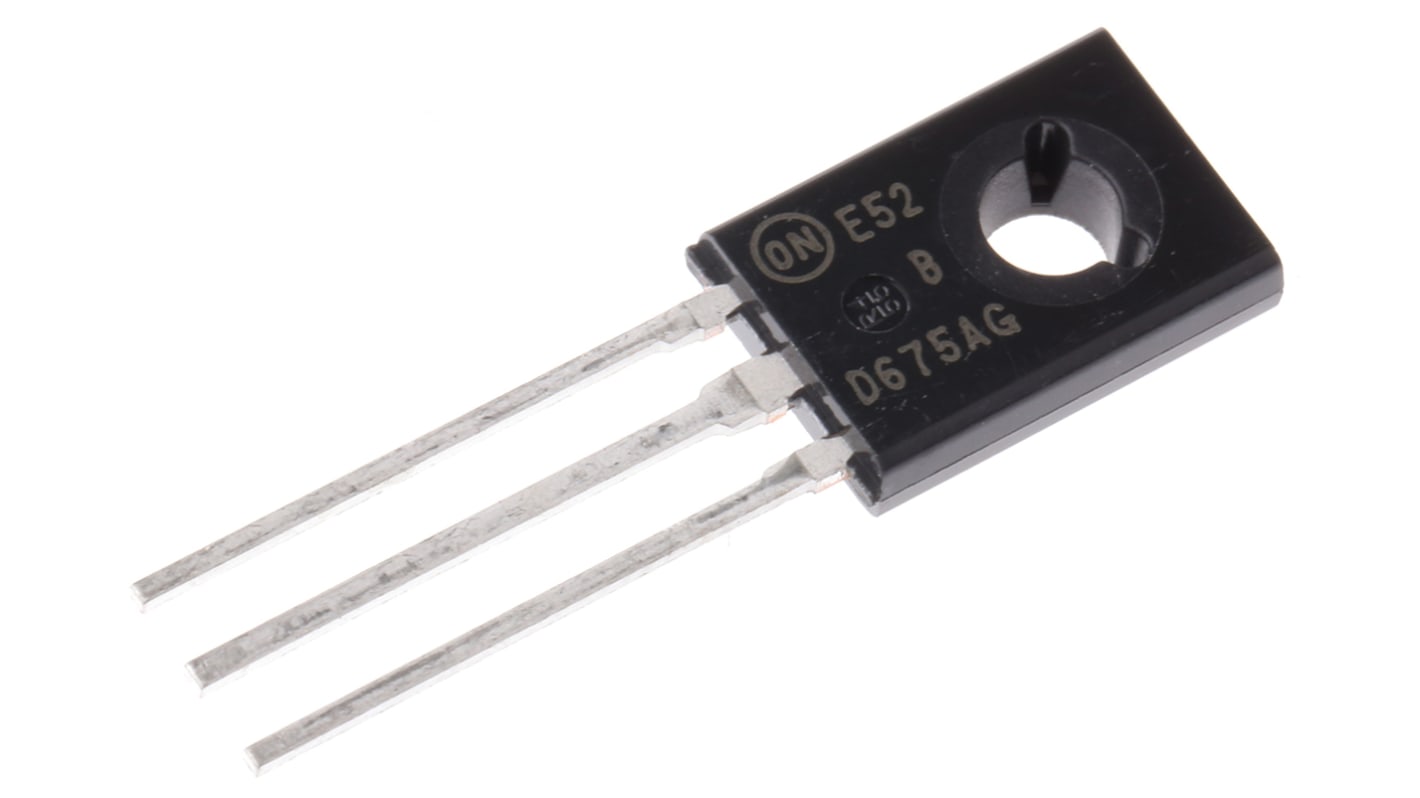

This image is representative of the product range

Bulk discount available

Subtotal (1 unit)**

MYR5.01

Available for back order.*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Units	Per Unit
1 - 124	MYR5.01
125 - 249	MYR4.92
250 +	MYR4.83

**price indicative

RS Stock No.:: 545-0090
Mfr. Part No.:: BD675AG
Manufacturer:: onsemi

Datasheet
ESD Control Selection Guide V1

Attribute	Value
Transistor Type	NPN
Maximum Continuous Collector Current	4 A
Maximum Collector Emitter Voltage	45 V
Maximum Emitter Base Voltage	5 V
Package Type	TO-225
Mounting Type	Through Hole
Pin Count	3
Transistor Configuration	Single
Number of Elements per Chip	1
Minimum DC Current Gain	750
Maximum Collector Base Voltage	45 V
Maximum Collector Emitter Saturation Voltage	2.8 V
Maximum Collector Cut-off Current	0.2mA
Maximum Operating Temperature	+150 °C
Length	7.74mm
Width	2.66mm
Dimensions	7.74 x 2.66 x 11.04mm
Minimum Operating Temperature	-55 °C
Height	11.04mm

onsemi BD675AG NPN Darlington Transistor, 4 A 45 V HFE:750, 3-Pin TO-225

FREE delivery for orders over MYR700.00

NPN Darlington Transistors, ON Semiconductor

Standards
