STMicroelectronics BD680 PNP Darlington Transistor, 4 A 80 V HFE:750, 3-Pin SOT-32

RS Stock No.:: 178-1409
Mfr. Part No.:: BD680
Manufacturer:: STMicroelectronics

STMicroelectronics BD680 PNP Darlington Transistor, 4 A 80 V HFE:750, 3-Pin SOT-32

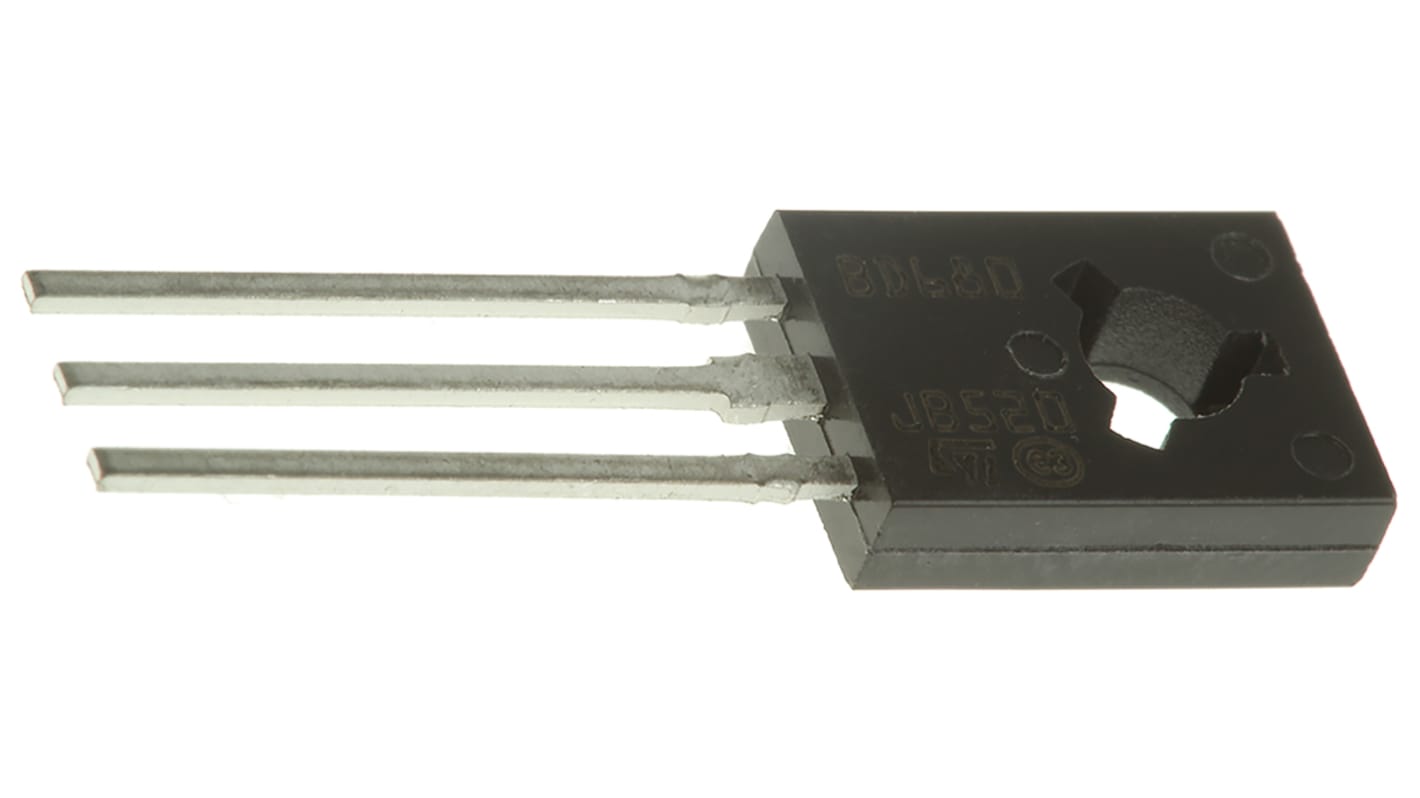

This image is representative of the product range

Price Each (In a Tube of 50)**

MYR2.28

278 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Units	Per Unit	Per Tube**
50 +	MYR2.28	MYR114.00

**price indicative

RS Stock No.:: 178-1409
Mfr. Part No.:: BD680
Manufacturer:: STMicroelectronics

Datasheet

Attribute	Value
Transistor Type	PNP
Maximum Continuous Collector Current	4 A
Maximum Collector Emitter Voltage	80 V
Maximum Emitter Base Voltage	5 V
Package Type	SOT-32
Mounting Type	Through Hole
Pin Count	3
Transistor Configuration	Single
Number of Elements per Chip	1
Minimum DC Current Gain	750
Maximum Collector Base Voltage	80 V
Maximum Collector Emitter Saturation Voltage	2.5 V
Maximum Collector Cut-off Current	0.2mA
Height	10.8mm
Dimensions	7.8 x 2.7 x 10.8mm
Minimum Operating Temperature	-65 °C
Width	2.7mm
Length	7.8mm
Maximum Operating Temperature	+150 °C

STMicroelectronics BD680 PNP Darlington Transistor, 4 A 80 V HFE:750, 3-Pin SOT-32

FREE delivery for orders over MYR700.00

PNP Darlington Transistors, STMicroelectronics
