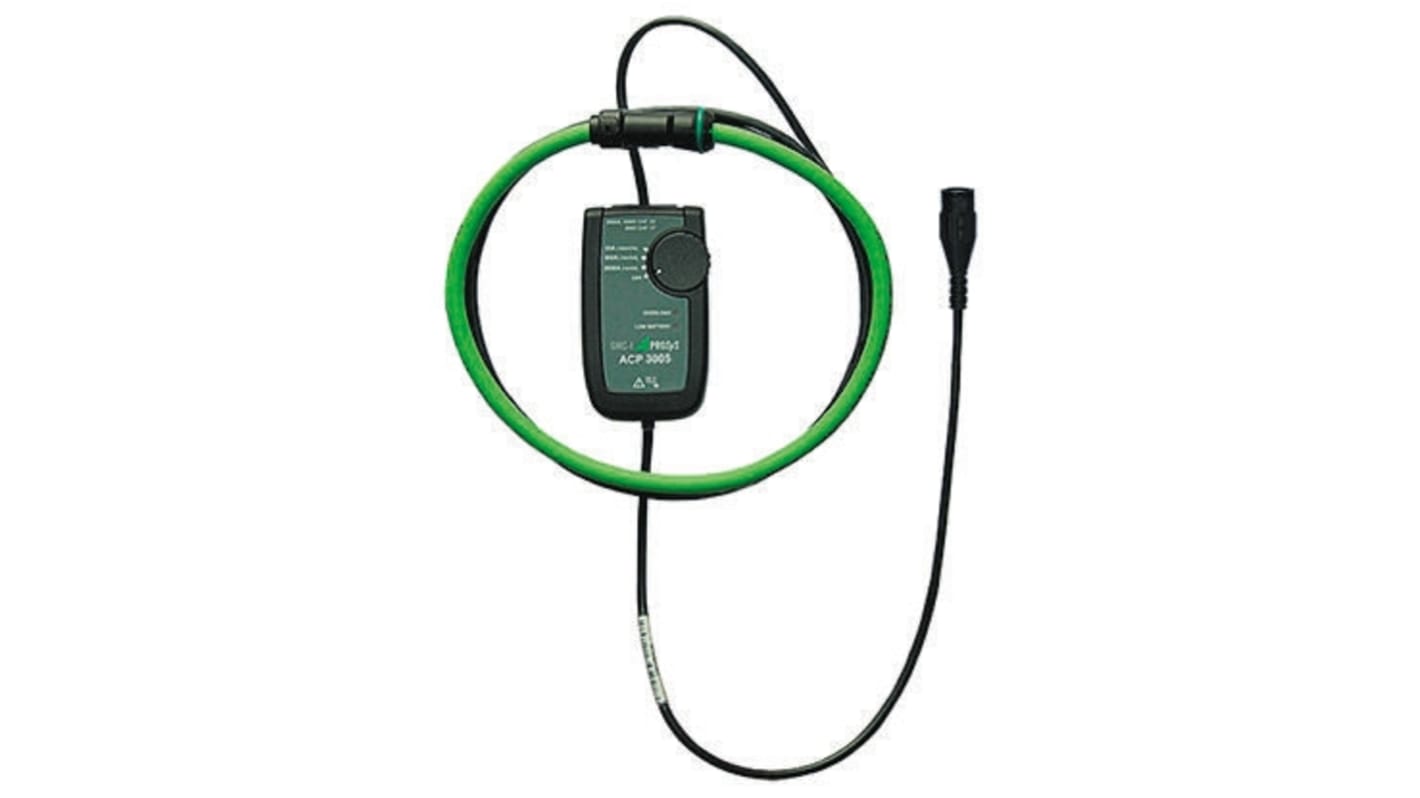

GMC-I Prosys ACP 3005/24 Current Probe, AC, Rogowski Coil Adapter, 3kA ac AC Max
- RS Stock No.:
- 705-1890
- Mfr. Part No.:
- ACP 3005/24
- Manufacturer:
- GMC-I Prosys
3 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR4,047.41
| Units | Per Unit |
| 1 + | MYR4,047.41 |
- RS Stock No.:
- 705-1890
- Mfr. Part No.:
- ACP 3005/24
- Manufacturer:
- GMC-I Prosys
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
ACP3 Series Flexible 3000Aac Current Probes
Superior measurement range from 100mA to 3000 Aac
2000 Hours continuous battery life (two AA MN1500 LR6 alkaline batteries, not supplied)
Low battery and range overload indication
Range selection by robust rotary switch
High external field rejection
Excellent accuracy over full range
Small diameter (10mm) Rogowski coil with compact link for access to confined areas.
Coil head connection sealed to IP65
EN61010 Safety Rating CAT IV 600V, CAT III 1000V
2000 Hours continuous battery life (two AA MN1500 LR6 alkaline batteries, not supplied)
Low battery and range overload indication
Range selection by robust rotary switch
High external field rejection
Excellent accuracy over full range
Small diameter (10mm) Rogowski coil with compact link for access to confined areas.
Coil head connection sealed to IP65
EN61010 Safety Rating CAT IV 600V, CAT III 1000V
Supplied with
Instruction manual
Specifications
Attribute | Value |
|---|---|
| Adapter Type | AC, Rogowski Coil |
| Maximum AC Current | 3kA ac |
| Best Accuracy | ±1% + 0.1 A |
| Maximum Conductor Size | 180mm |
| Safety Category | CAT IV 600 V, CAT III 1000V |
| Maximum Bandwidth | 20kHz |
| Safety Category Voltage | 600 V, 1000V |
| Safety Category Level | CAT IV, CAT III |
| Model Number p | ACP 3005/24 |
| Bandwidth | 10 Hz → 20kHz |
