- RS Stock No.:
- 507-8301
- Mfr. Part No.:
- I400S
- Manufacturer:
- Fluke
Stocked by manufacturer – available for delivery 17/07/2024
Added
Price Each
MYR2,302.00
Units | Per Unit |
1 + | MYR2,302.00 |
- RS Stock No.:
- 507-8301
- Mfr. Part No.:
- I400S
- Manufacturer:
- Fluke
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- TW
Product Details

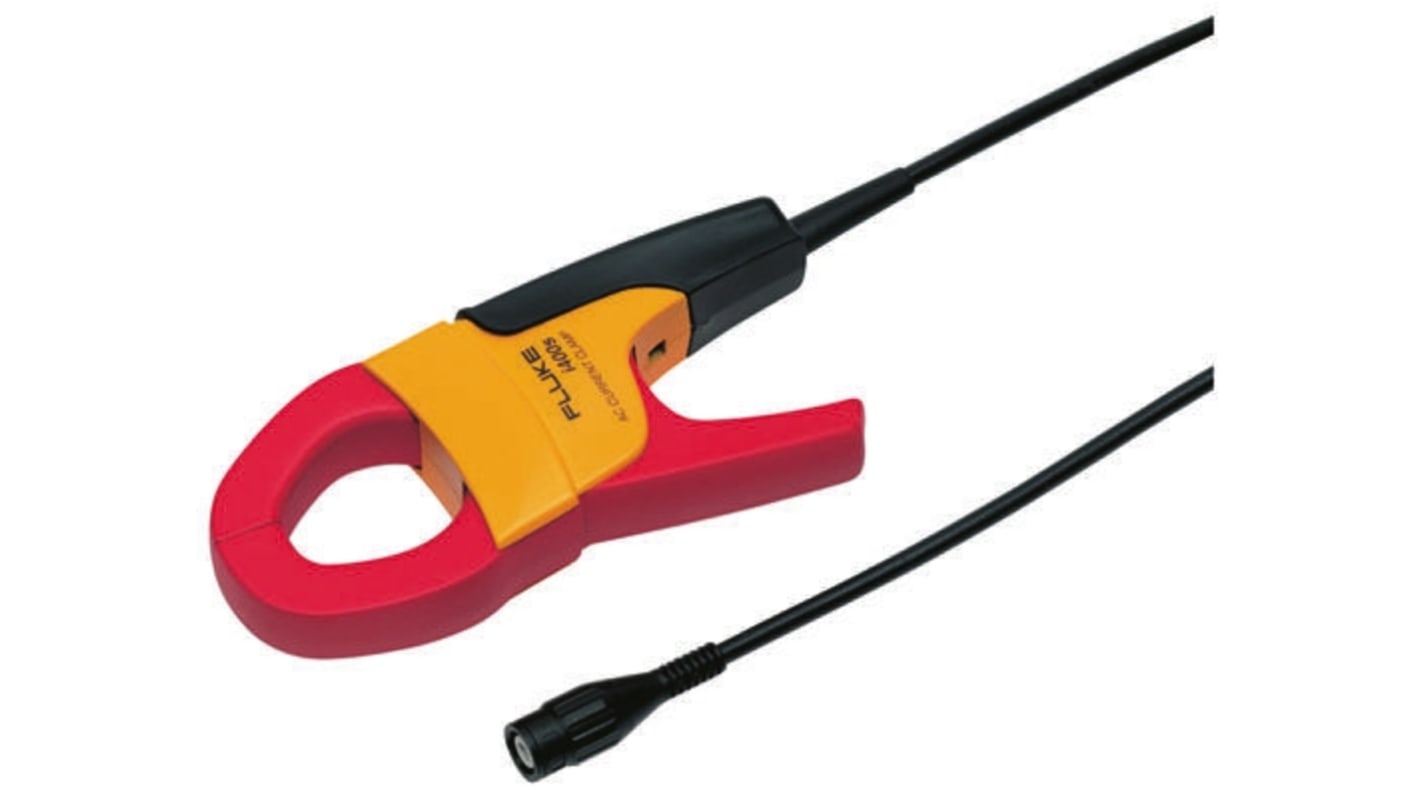

Fluke Ac Current Clamp
The Fluke clamp measures current rating that ranges between 0.5A and 400A AC. It is a high safety current clamp for digital multimeters. This product provides accurate current measurements without breaking electric circuits, helping you to take measurements safely according to industry-standard safety ratings.
Features and Benefits
1mA/Amp output guarantees easy reading on you meter
Specially designed to offer maximum utility in a compact shape
Take accurate current readings without breaking the circuit
Soft non-slippery overmold handle prevents accidental touching live wiring
Optional PM9081/001 BNC/Banana adapter for DMM's
Maximum conductor size is 32mm
Operating temperature ranges between 0°C and 50°C
For enhancing measuring range of multimeters
Grip with non-slip rubber coating
Specially designed to offer maximum utility in a compact shape
Take accurate current readings without breaking the circuit
Soft non-slippery overmold handle prevents accidental touching live wiring
Optional PM9081/001 BNC/Banana adapter for DMM's
Maximum conductor size is 32mm
Operating temperature ranges between 0°C and 50°C
For enhancing measuring range of multimeters
Grip with non-slip rubber coating
Certifications
CE
cCSAus
EN61010
EN 61326-1
UL61010-1 listed
CAN/CSA C22.2 No.101.1:2004
CAN/CSA C22.2 No. 101.1:2004
FCC
cCSAus
EN61010
EN 61326-1
UL61010-1 listed
CAN/CSA C22.2 No.101.1:2004
CAN/CSA C22.2 No. 101.1:2004
FCC
Specifications
Attribute | Value |
---|---|
Maximum AC Current | 400A ac |
Best Accuracy | 2 % + 0.015 A |
Maximum Conductor Size | 32mm |
Safety Category | CAT III 1000 V, CAT IV 600V |
Connector Type | BNC |
Maximum Bandwidth | 10kHz |
Cable Length Extended | 2.5m |
Maximum Operating Temperature | +50°C |
Minimum Operating Temperature | 0°C |
Model Number p | i400s |
Bandwidth | 5Hz to 10kHz |
Safety Category Voltage | 600 V, 1000V |
Safety Category Level | CAT III, CAT IV |
