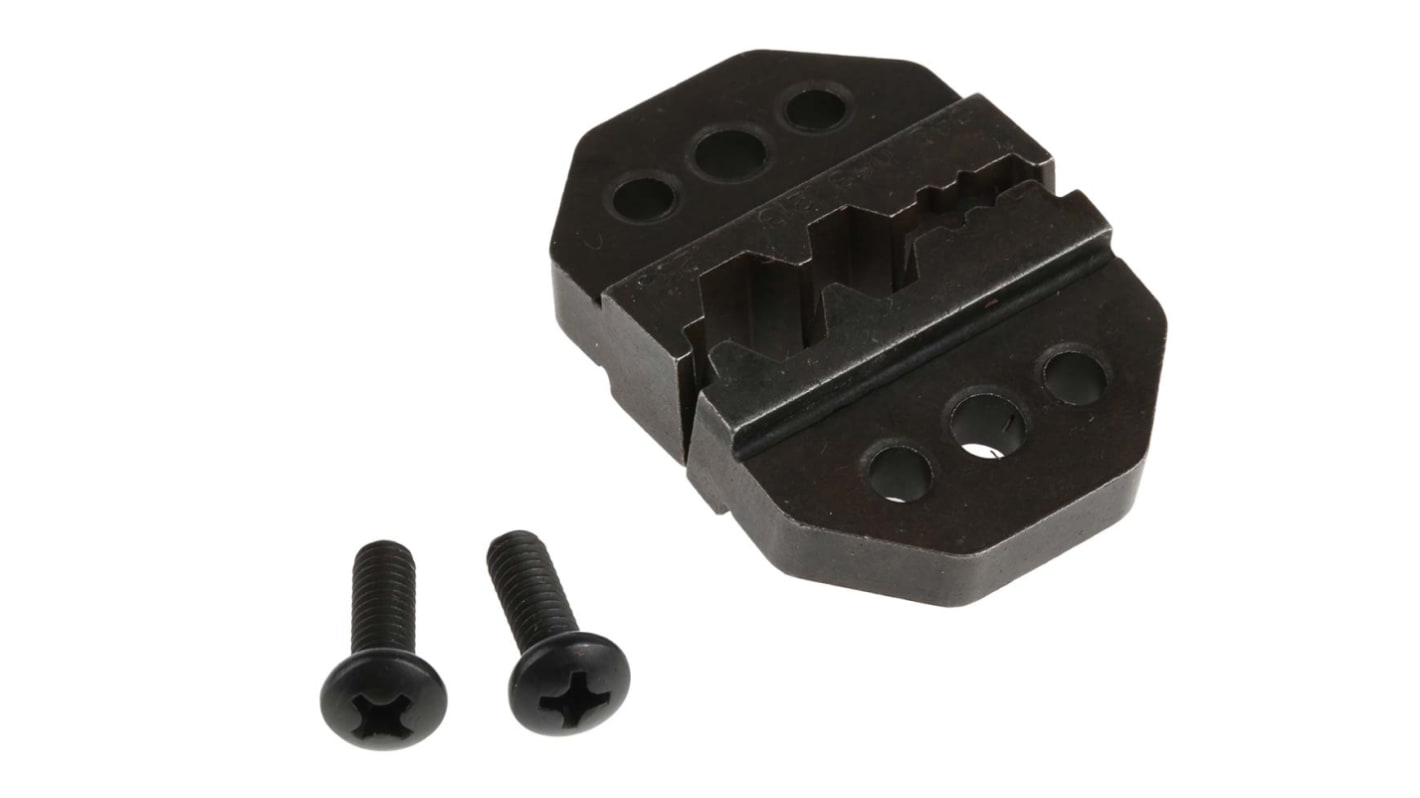

RS PRO Crimp Die Set, Coaxial Type RG58, RG59

  • RS Stock No. 848-436
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): US
Product Details

Universal Frame Die Sets

High quality die sets for use with the universal crimp tool frame stock no. 848-391. The die sets are identified with the appropriate cable group in the price table. The &146;Cable Group to Cable Type Relationship&146; table lists the relevant cable types.

Note

Users should take care when selecting tooling to confirm that the die set aperture dimensions are compatible with the connector being used, and that the cable type is also compatible.

General Support Tooling

The crimp tooling detailed on this and subsequent pages are recommended, in most cases, for a wide range of connectors and associated cable types. The 'Crimp Tool Selection Guide' table indicates the cable type(s) and/or specific type(s) of connector for which each tool is recommended. The 'Die Set Selection Guide' table indicates compatible cable types and their 'Group number' and details of frame tool required. A small number of crimp tools have been considered to be 'dedicated' to a connector type. These tools have been incorporated with those connector ranges on respective pages, and are not included within this General Tooling Range.

Specifications
Attribute Value
Coaxial Type RG58, RG59
40 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 251.96
units
Per unit
1 - 9
MYR251.96
10 - 24
MYR251.89
25 - 49
MYR245.33
50 - 99
MYR240.89
100 +
MYR227.96
