Molex 5558 Series Male Crimp Terminal, 24 AWG Min Crimp, 18 AWG Max

RS Stock No.:: 670-6325
Distrelec Article No.:: 304-33-492
Mfr. Part No.:: 39-00-0061
Manufacturer:: Molex

Molex 5558 Series Male Crimp Terminal, 24 AWG Min Crimp, 18 AWG Max

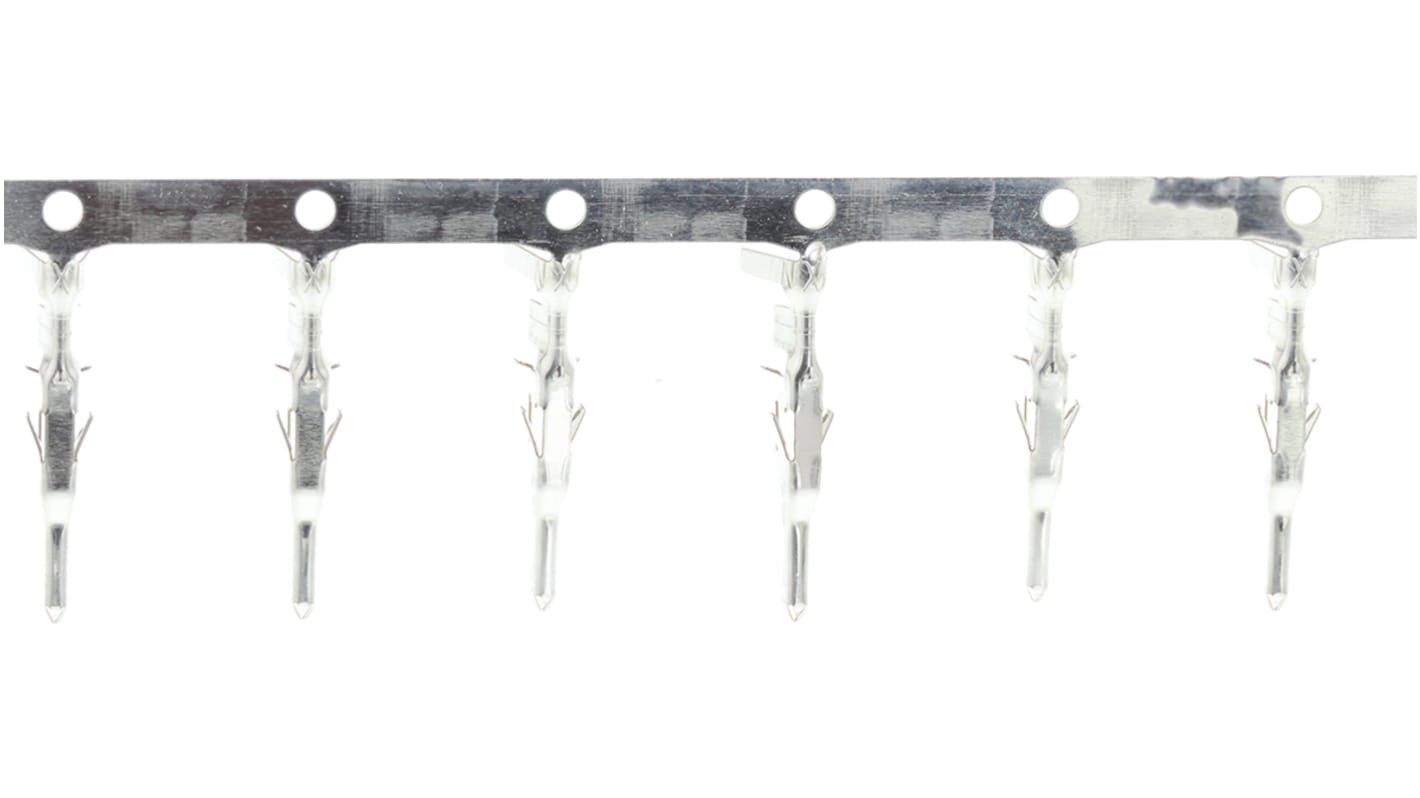

This image is representative of the product range

Bulk discount available

Subtotal (1 pack of 100 units)*

MYR51.30

FREE delivery for orders over RM 500.00

In Stock

Plus 5,200 unit(s) shipping from 27 April 2026
Plus 29,400 unit(s) shipping from 04 May 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit	Per Pack*
100 - 900	MYR0.513	MYR51.30
1000 - 2900	MYR0.503	MYR50.30
3000 - 7400	MYR0.493	MYR49.30
7500 - 14900	MYR0.483	MYR48.30
15000 +	MYR0.474	MYR47.40

*price indicative

RS Stock No.:: 670-6325
Distrelec Article No.:: 304-33-492
Mfr. Part No.:: 39-00-0061
Manufacturer:: Molex

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Molex
	Gender	Male
	Product Type	Crimp Terminal
	For Use With	Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings
	Series	5558
	Current	9A
	Minimum Wire Size AWG	24AWG
	Contact Plating	Tin
	Maximum Wire Size AWG	18AWG
	Contact Material	Phosphor Bronze
	Maximum Contact Resistance	20mΩ
	Minimum Operating Temperature	-40°C
	Termination Type	Crimp
	Maximum Operating Temperature	105°C
	Standards/Approvals	No

	Select all
	Brand Molex
	Gender Male
	Product Type Crimp Terminal
	For Use With Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings
	Series 5558
	Current 9A
	Minimum Wire Size AWG 24AWG
	Contact Plating Tin
	Maximum Wire Size AWG 18AWG
	Contact Material Phosphor Bronze
	Maximum Contact Resistance 20mΩ
	Minimum Operating Temperature -40°C
	Termination Type Crimp
	Maximum Operating Temperature 105°C
	Standards/Approvals No

COO (Country of Origin):: CN

Molex Mini-Fit Series Crimp Terminal, Male, Tin Contact Plating - 39-00-0061

This crimp terminal is designed for reliable connections in various electrical applications. Suitable for use with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings, it supports a wire size range from 0.2mm² to 0.8mm² (24 AWG to 18 AWG). The product is constructed with a phosphor bronze material, ensuring durability and excellent conductivity.

Features & Benefits

• Designed for compatibility with Mini-Fit connector accessories

• Supports wire size specifications from 0.2mm² to 0.8mm²

• Utilises a crimp termination method for secure connections

• Constructed from phosphor bronze for improved strength

• Features tin plating for enhanced corrosion resistance

• Ideal for male connections in various applications

Applications

• Suitable for assembling Mini-Fit Jr connectors in machinery

• Ideal for use in automotive wiring harnesses

• Commonly used in consumer electronics assembly

What termination method should be used for effective connections?

The crimp termination method is recommended, as it provides a strong and secure connection, ideal for electrical reliability.

How do wire size specifications affect connectivity?

Adhering to the correct wire size specifications ensures efficient current flow and reduces the risk of overheating, which can lead to connection failures.

What material is utilised in this crimp terminal and why is it beneficial?

It is constructed from phosphor bronze, which offers excellent electrical conductivity and mechanical strength, making it suitable for high-performance applications.

Is it necessary to consider corrosion resistance when choosing terminals?

Yes, tin plating helps prevent corrosion, significantly extending the lifespan of the connection, especially in environments where moisture might be present.
