RS PRO ICM33II Clamp Meter, Max Current 600A ac CAT II 1000 V, CAT III 600 V
- RS Stock No.:
- 123-3231
- Manufacturer:
- RS PRO
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 123-3231
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Absolute Maximum AC Current Measurement | 600A ac | |
| Absolute Maximum AC Voltage Measurement | 600V ac | |
| Absolute Maximum Resistance Measurement | 2kΩ | |
| Model Number | ICM33II | |
| AC Current Measurement Resolution | 100mA | |
| Clamp Meter Type | AC Current Clamp Meter | |
| Best AC Current Accuracy | ±(1.5% rdg + 5dgts) | |
| Best AC Voltage Accuracy | ±(1.2% rdg + 3dgts) | |
| Jaw Capacity Busbars | 34mm | |
| True RMS | Yes | |
| Functions Measured | AC Current, AC Voltage, Continuity, Resistance | |
| Battery Life | 200 h | |
| Maximum Conductor Size | 34 (Dia.)mm | |
| AC Voltage Measurement Resolution | 100mV | |
| Power Source | Battery | |
| Width | 41mm | |
| Safety Category Level | CAT II, CAT III | |
| Height | 200mm | |
| Resistance Measurement Resolution | 1Ω | |
| Dimensions | 76 x 41 x 200mm | |
| Minimum Operating Temperature | 0°C | |
| Weight | 360g | |
| Length | 76mm | |
| Safety Category Voltage | 600 V, 1000 V | |
| Safety Category | CAT II 1000 V, CAT III 600 V | |
| Best Resistance Measurement Accuracy | ±1.5% + 2 Digits | |
| Display Type | LCD | |
| Maximum Operating Temperature | +50°C | |
| Battery Type | 9V, IEC 6F22, NEDA 1604 | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Absolute Maximum AC Current Measurement 600A ac | ||
Absolute Maximum AC Voltage Measurement 600V ac | ||
Absolute Maximum Resistance Measurement 2kΩ | ||
Model Number ICM33II | ||
AC Current Measurement Resolution 100mA | ||
Clamp Meter Type AC Current Clamp Meter | ||
Best AC Current Accuracy ±(1.5% rdg + 5dgts) | ||
Best AC Voltage Accuracy ±(1.2% rdg + 3dgts) | ||
Jaw Capacity Busbars 34mm | ||
True RMS Yes | ||
Functions Measured AC Current, AC Voltage, Continuity, Resistance | ||
Battery Life 200 h | ||
Maximum Conductor Size 34 (Dia.)mm | ||
AC Voltage Measurement Resolution 100mV | ||
Power Source Battery | ||
Width 41mm | ||
Safety Category Level CAT II, CAT III | ||
Height 200mm | ||
Resistance Measurement Resolution 1Ω | ||
Dimensions 76 x 41 x 200mm | ||
Minimum Operating Temperature 0°C | ||
Weight 360g | ||
Length 76mm | ||
Safety Category Voltage 600 V, 1000 V | ||
Safety Category CAT II 1000 V, CAT III 600 V | ||
Best Resistance Measurement Accuracy ±1.5% + 2 Digits | ||
Display Type LCD | ||
Maximum Operating Temperature +50°C | ||
Battery Type 9V, IEC 6F22, NEDA 1604 | ||
- COO (Country of Origin):
- TW
RS PRO ICM33II Current Clampmeter
From the trusted RS PRO brand, this ICM33II current clamp meter has true RMS reading in AC current and AC voltage measurement.
Battery-powered for maximum portability, and with a large backlit screen, this multifunction current clamp meter is ideal for on-the-go applications in almost any environment.
It is also supplied in a carry case to keep the clampmeter safe and secure during transit.
Features and Benefits
• 2000 Count large-scale LCD display
• AC 600 Amps capability
• AC 600 V capability
• 2000 Ω Resistance range
• True RMS ACV/ACA
• Continuity Beeper
• Display Hold
• Auto power off
• 600 V circuit protection
• Insulated input jacks
• Up to 34 mm dia. (750 MCM) conductor
• 4 ft drop proof
• Protective carrying case
• Hand guard designed
• CAT. III 600 V/CAT. II 1000 V Safety Standard
Applications
This current clamp meter is designed for current measurement in electrical testing, and combines a digital multimeter with a clamping current sensor. The nature of the clamp means that it can fit around a wire at any point to sense AC current and voltage. This has the advantage of allowing electricians to take a reading from a conductor without touching it, which is both more convenient and safer than other methods.
True RMS (Root Mean Square) reading has advantages over average RMS reading in that it compensates for interfering electronic loads or distorted sinewaves to give an accurate reading.
This current clamp is used for measuring high levels of current in service and maintenance applications. It can also be used when installing electrical equipment.
Why RS PRO?
RS PRO aims to be your go-to brand when you need reliability, quality, and affordability. We source high-quality tools and parts from trusted sources and employ expert testing to build a brand you can rely on.
When it comes to test and measurement equipment, RS PRO has an extensive range of solutions. From electrical to environmental measurement, we offer calibrated and multi-function instruments to suit your needs.
Battery-powered for maximum portability, and with a large backlit screen, this multifunction current clamp meter is ideal for on-the-go applications in almost any environment.
It is also supplied in a carry case to keep the clampmeter safe and secure during transit.
Features and Benefits
• 2000 Count large-scale LCD display
• AC 600 Amps capability
• AC 600 V capability
• 2000 Ω Resistance range
• True RMS ACV/ACA
• Continuity Beeper
• Display Hold
• Auto power off
• 600 V circuit protection
• Insulated input jacks
• Up to 34 mm dia. (750 MCM) conductor
• 4 ft drop proof
• Protective carrying case
• Hand guard designed
• CAT. III 600 V/CAT. II 1000 V Safety Standard
Applications
This current clamp meter is designed for current measurement in electrical testing, and combines a digital multimeter with a clamping current sensor. The nature of the clamp means that it can fit around a wire at any point to sense AC current and voltage. This has the advantage of allowing electricians to take a reading from a conductor without touching it, which is both more convenient and safer than other methods.
True RMS (Root Mean Square) reading has advantages over average RMS reading in that it compensates for interfering electronic loads or distorted sinewaves to give an accurate reading.
This current clamp is used for measuring high levels of current in service and maintenance applications. It can also be used when installing electrical equipment.
Why RS PRO?
RS PRO aims to be your go-to brand when you need reliability, quality, and affordability. We source high-quality tools and parts from trusted sources and employ expert testing to build a brand you can rely on.
When it comes to test and measurement equipment, RS PRO has an extensive range of solutions. From electrical to environmental measurement, we offer calibrated and multi-function instruments to suit your needs.

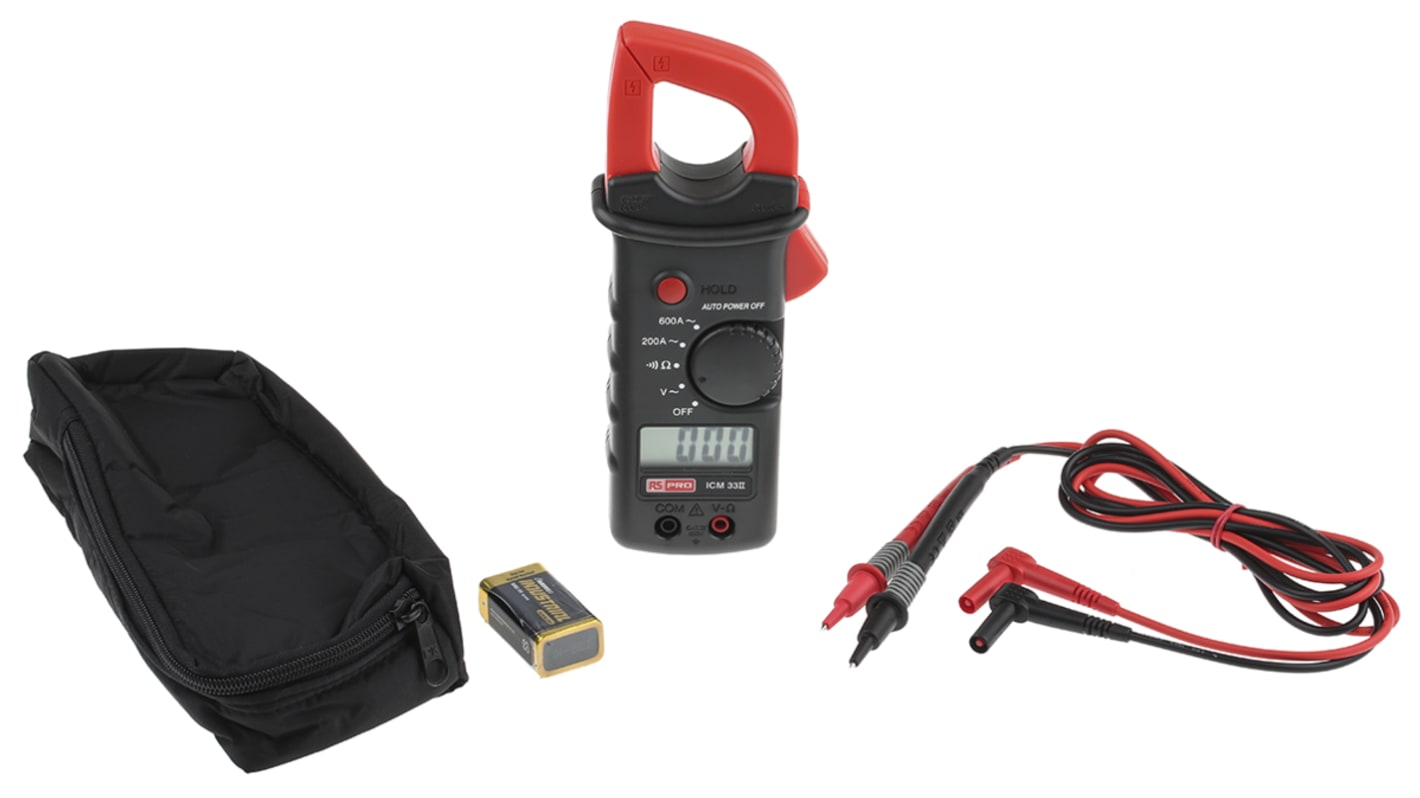

Supplied with
Carrying case, test leads, 9 V PP3 battery
