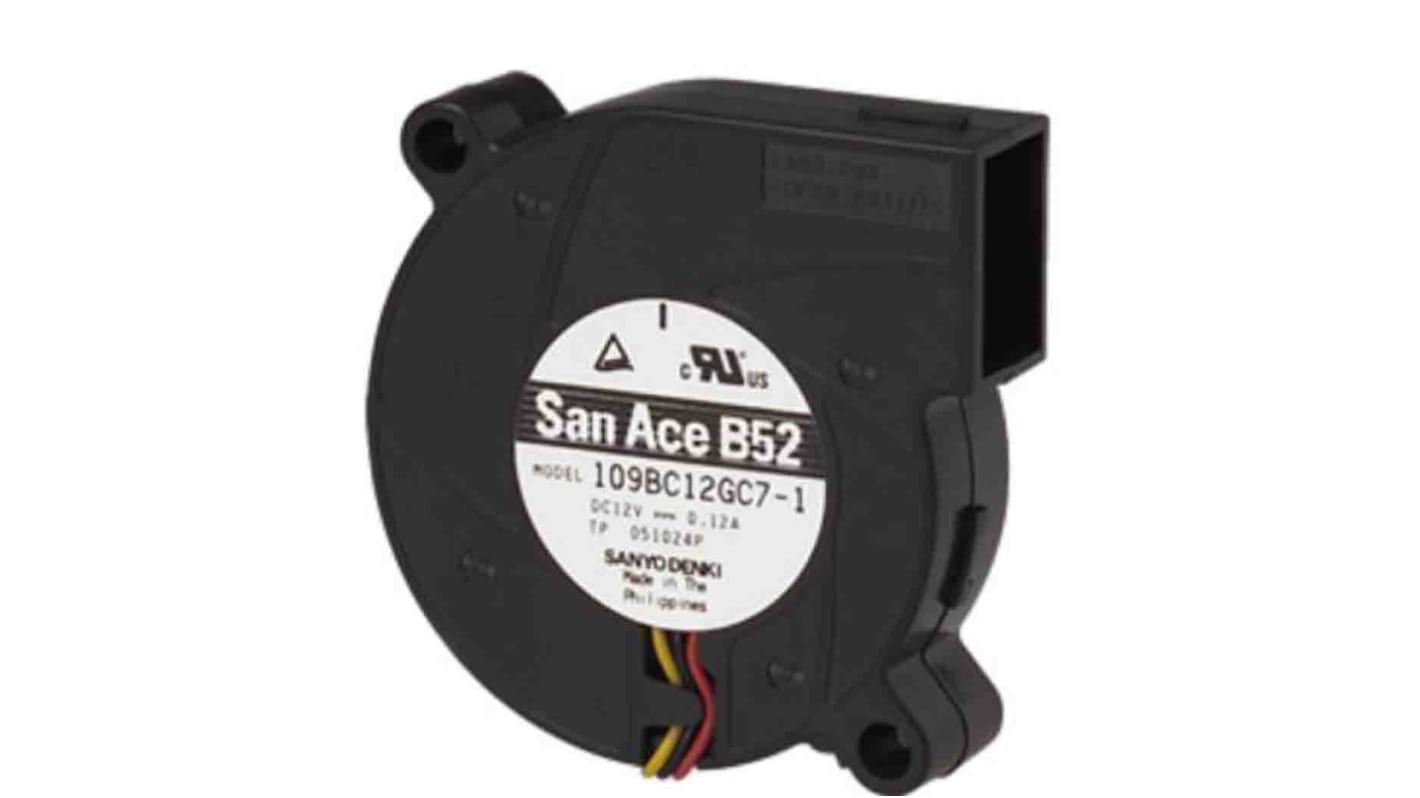

Sanyo Denki San Ace B52 9BC Series Blower Centrifugal Fan, 12V dc, 4.4 cfm, DC Operation 15 mm x 15mm x 15 mm
- RS Stock No.:
- 191-9265
- Mfr. Part No.:
- 109BC12GC7-1
- Manufacturer:
- Sanyo Denki
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
MYR90.06
FREE delivery for orders over RM 150.00
In Stock
- Plus 41 unit(s) shipping from 07 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | MYR90.06 |
| 5 - 9 | MYR88.16 |
| 10 - 24 | MYR85.44 |
| 25 - 49 | MYR83.38 |
| 50 + | MYR81.58 |
*price indicative
- RS Stock No.:
- 191-9265
- Mfr. Part No.:
- 109BC12GC7-1
- Manufacturer:
- Sanyo Denki
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sanyo Denki | |
| Product Type | Centrifugal Fan | |
| Supply Voltage | 12V dc | |
| Blower Type | Blower | |
| AC or DC Operation | DC | |
| Air Flow | 4.4cfm | |
| Series | San Ace B52 9BC | |
| Width | 15mm | |
| Terminal Type | Wire | |
| Fan Speed | 6200rpm | |
| Noise Level | 43dBA | |
| Sensor Output Type | Pulse Sensor | |
| Bearing Type | Ball | |
| Standards/Approvals | UL, RoHS | |
| Depth | 15mm | |
| Height | 15mm | |
| Static Pressure | 215Pa | |
| Maximum Current | 120mA | |
| Mounting Hole Diameter | 43 mm | |
| Select all | ||
|---|---|---|
Brand Sanyo Denki | ||
Product Type Centrifugal Fan | ||
Supply Voltage 12V dc | ||
Blower Type Blower | ||
AC or DC Operation DC | ||
Air Flow 4.4cfm | ||
Series San Ace B52 9BC | ||
Width 15mm | ||
Terminal Type Wire | ||
Fan Speed 6200rpm | ||
Noise Level 43dBA | ||
Sensor Output Type Pulse Sensor | ||
Bearing Type Ball | ||
Standards/Approvals UL, RoHS | ||
Depth 15mm | ||
Height 15mm | ||
Static Pressure 215Pa | ||
Maximum Current 120mA | ||
Mounting Hole Diameter 43 mm | ||
- COO (Country of Origin):
- PH
With high static pressure, Blowers are suitable for cooling equipment with high system impedance and high heat generation such as servers, storage systems, and base stations.
No External Duct Required to Change Wind Directions
Blowers send out air in a 90° direction from the intake direction. They can change the direction of air without an external duct, contributing to reducing customer equipment size.
High Static Pressure for Cooling High-Density Equipment
Ducts in the outlet help create straight airflow with high static pressure. Blowers are suitable for servers and other compact, high-density equipment. By creatively revising the design of fan blades and frame, we realized high static pressure and low noise. We realized quiet fan operation by creatively designing impeller and frame shape.
Sanyo Denki series blower belongs to series San Ace 109B has a plastic frame having flammability of UL 94V-0. Its impeller is also made up of plastic. It has -30°C to +70°C storage temperature.
Locked rotor burnout protection
Reverse polarity protection
