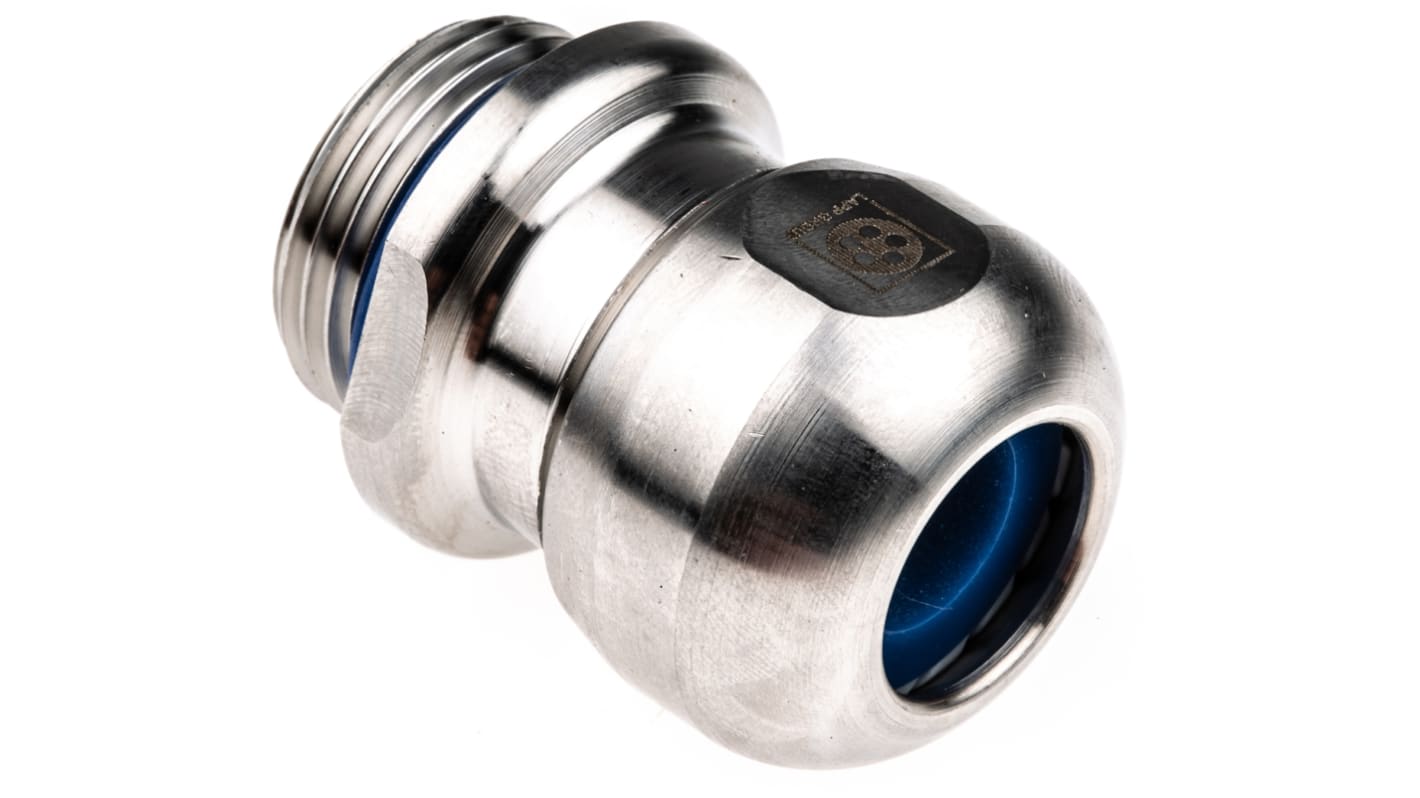

Lapp Skintop INOX-R M20 Cable Gland, Stainless Steel, IP69K

  • RS Stock No. 796-0053
  • Mfr. Part No. 53806751
  • Manufacturer Lapp
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Lapp Skintop INOX, INOX-R Cable Glands

From Lapp, the Skintop INOX cable glands have a robust stainless steel construction, and offer a fantastic level of mechanical resistance and environmental protection in cable management.

The easy to install INOX gland has a smooth and compact design, which accommodates a wide clamping range.

Features and Benefits

• IP68
• Temperature Resistant
• Corrosion Resistant
• Sea-water Resistant
• Good Chemical Resistance
• Suitable for Food and Beverage Environments

Applications

The INOX series of cable glands are suitable for environments where hygiene control is a concern, such as:

• Pharmaceutical Industry
• Food Industry
• Bottling Plants and Breweries

Their resistance to seawater also makes them suitable for offshore applications.

Environment

The glands are sealed to IP68, which means they are highly resistant to dust ingress and resistant to water even up to shallow submersion. This means they are suitable for use in harsh environments and some open air applications.

Accessories

There are stainless steel INOX counter nuts available if required.

796-0069 is a M16x1.5 Skintop Stainless Steel Locknut
796-0063 is a M20x1.5 Skintop Stainless Steel Locknut
796-0072 is a M25x1.5 Skintop Stainless Steel Locknut
796-0075 is a M32x1.5 Skintop Stainless Steel Locknut

Standards

EN50262, DIN EN ISO14, DIN EN1672-2, EHEDG

Specifications
Attribute Value
Thread Size M20
Material Stainless Steel
Maximum Cable Diameter 10mm
Minimum Cable Diameter 6mm
Colour Metallic
IP Rating IP69K
Minimum Operating Temperature -40°C
Maximum Operating Temperature +100°C
Series Skintop INOX-R
75 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 5)
MYR 240.972
units
Per unit
Per Pack*
5 - 20
MYR240.972
MYR1,204.86
25 - 45
MYR234.942
MYR1,174.71
50 +
MYR229.072
MYR1,145.36
*price indicative
