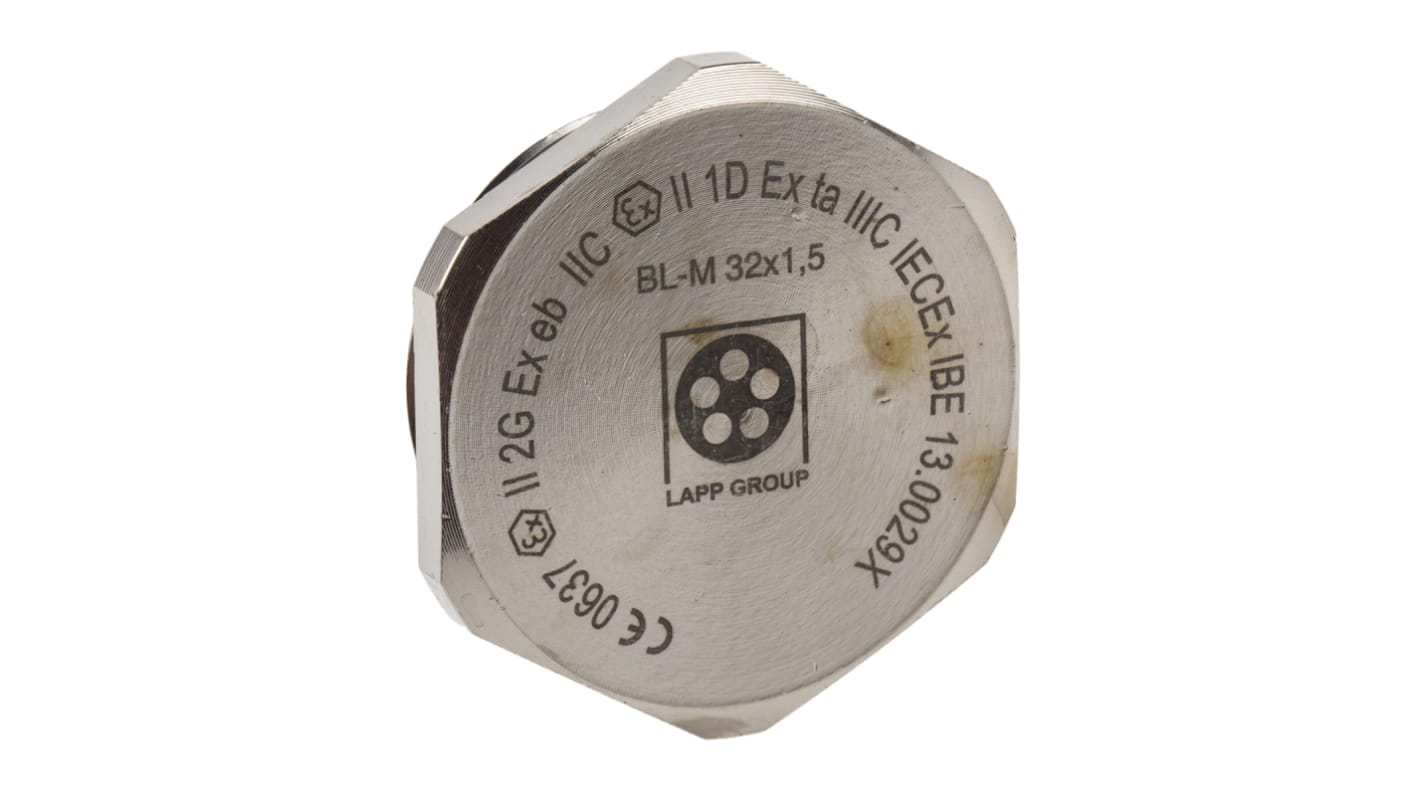

Lapp ATEX M32 Blanking Plug, Nickel Plated Brass, Threaded, IP68

  • RS Stock No. 664-4555
  • Mfr. Part No. 52103143
  • Manufacturer Lapp
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Skintop ATEX (Ex) Nickel Plated Brass Blanking Plugs - Metric

The Skindicht BL-M ATEX Brass blanking plug is a nickel plated brass blanking plug ATEX with a guiding notch ( recess ) for the O Ring and Metric connection thread in accordance with EN 50262 to ensure the required protection class is maintained for any holes that are not in use.

Body - Nickel plated brass
O Ring - NBR

Standards

EN50262

Specifications
Attribute Value
Thread Size M32
Threaded/Unthreaded Threaded
Material Nickel Plated Brass
Plug Type Blanking
Diameter 39.6mm
IP Rating IP68
Minimum Operating Temperature -30°C
Maximum Operating Temperature +90°C
Hazardous Area Certification ATEX
7 In Global stock for delivery within 4 - 6 working days
Price 1 Bag of 5
MYR 195.16
Bag(s)
Per Bag
Per unit*
1 - 4
MYR195.16
MYR39.032
5 - 9
MYR190.26
MYR38.052
10 +
MYR185.52
MYR37.104
*price indicative
