Lapp Blanking Plug, M20, Nickel Plated Brass, 26.4mm Diameter, Threaded
- RS Stock No.:
- 664-4542
- Mfr. Part No.:
- 52103123
- Manufacturer:
- Lapp
8 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
69 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price 1 Bag of 5
Was MYR134.20
You pay
MYR127.49
| Bag(s) | Per Bag | Per Unit* |
| 1 - 4 | MYR127.49 | MYR25.498 |
| 5 - 9 | MYR124.93 | MYR24.986 |
| 10 + | MYR122.43 | MYR24.486 |
| *price indicative | ||
- RS Stock No.:
- 664-4542
- Mfr. Part No.:
- 52103123
- Manufacturer:
- Lapp
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

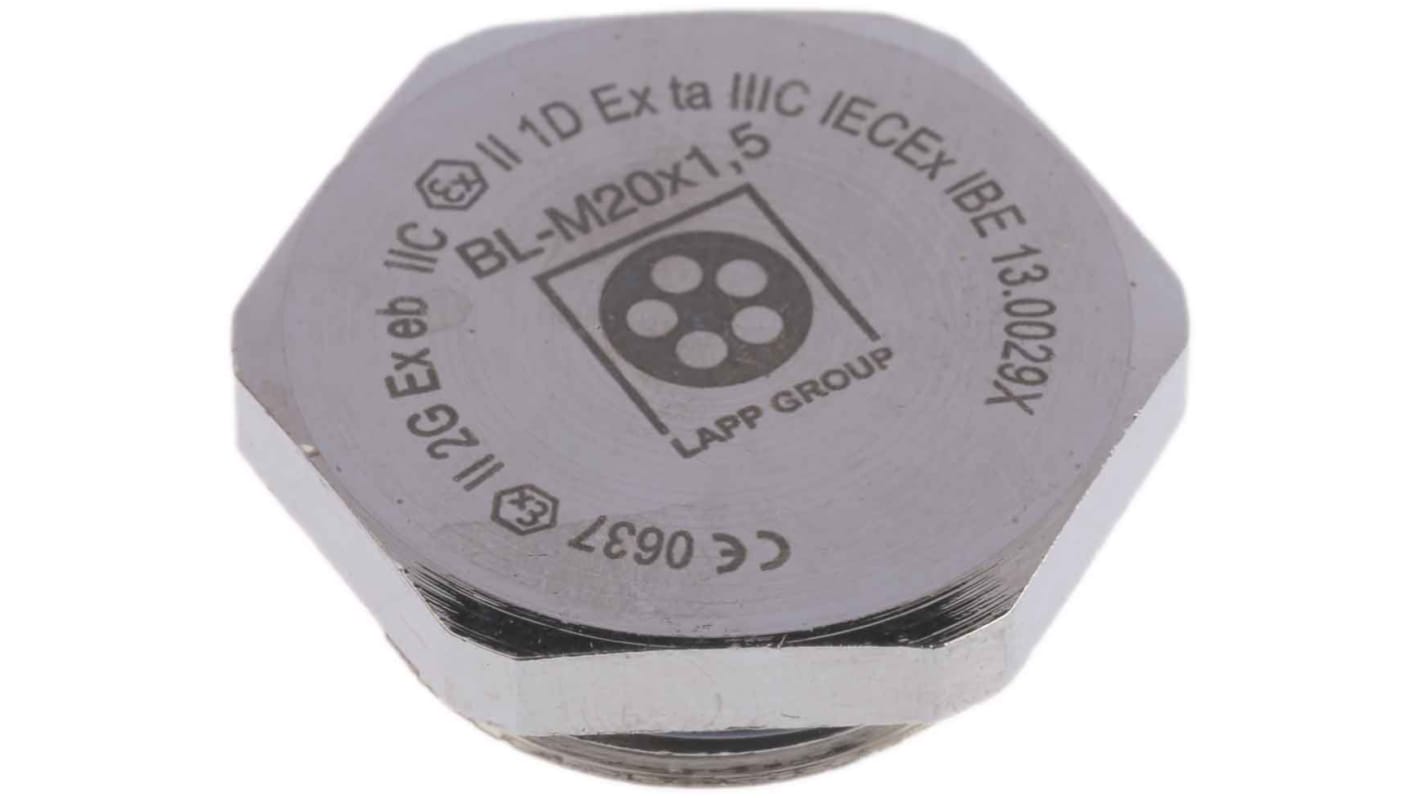

LAPP Blanking Plug, M20 x 1.5 Thread, 26.4mm Diameter - SKINTOP Series - 52103123
Keep unused ports in your system reliably closed off with this blanking plug from LAPP. It screws into redundant openings left when you remove a cable from your system, preventing the build-up of dust and moisture and eliminating the risk of disruption and damage to your electrical system. When installed, the plug has an ingress protection rating of IP68, so it's waterproof and dust-tight. As it's made from corrosion-resistant nickel-plated brass, it's suitable for use in damp and humid environments.
Features & Benefits
• Features a resilient nitrile butadiene rubber O-ring to produce a reliable seal that doesn't need to be retightened
• Screw-in connection allows for quick and easy manual installation without specialist tools
• Safe for use in temperatures between -30°C and +90°C, so suited to demanding industrial environments
• Screw-in connection allows for quick and easy manual installation without specialist tools
• Safe for use in temperatures between -30°C and +90°C, so suited to demanding industrial environments
Applications
• Automation systems
• Fast-charging stations
• Chemical and pharmaceutical industries
• Fast-charging stations
• Chemical and pharmaceutical industries
Is this blanking plug suitable for my outdoor application?
The plug's IP68 rating indicates that it's protected against fine airborne particles and is watertight to 5-bar pressure, making it weather-tight and suitable for use in outdoor applications.
Specifications
Attribute | Value |
|---|---|
| Thread Size | M20 |
| Material | Nickel Plated Brass |
| Plug Type | Blanking |
| Diameter | 26.4mm |
| Threaded/Unthreaded | Threaded |
| Hazardous Area Certification | ATEX |
| IP Rating | IP68 |
| Standards Met | IEC |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +90°C |
| Series | 5210 |
| For Use With | Cable Screw Gland |
