Lapp, M12 Thread, Nickel Plated Brass, 56.1 mm Diameter Threaded
- RS Stock No.:
- 406-9362
- Mfr. Part No.:
- 52006160
- Manufacturer:
- Lapp
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 10 units)*
MYR127.09
FREE delivery for orders over RM 150.00
In Stock
- 160 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 10 - 40 | MYR12.709 | MYR127.09 |
| 50 - 90 | MYR12.442 | MYR124.42 |
| 100 + | MYR12.07 | MYR120.70 |
*price indicative
- RS Stock No.:
- 406-9362
- Mfr. Part No.:
- 52006160
- Manufacturer:
- Lapp
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Product Type | Cable Gland Blanking Plug | |
| Thread Size | M12 | |
| Threaded | Yes | |
| Sub Type | Blanking Plug | |
| Material | Nickel Plated Brass | |
| Diameter | 56.1mm | |
| Colour | Light Grey | |
| Hazardous Area Certification | No | |
| IP Rating | IP54 | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 100°C | |
| Standards/Approvals | UL File no. E79903 | |
| Series | SKINDICHT BL | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Product Type Cable Gland Blanking Plug | ||
Thread Size M12 | ||
Threaded Yes | ||
Sub Type Blanking Plug | ||
Material Nickel Plated Brass | ||
Diameter 56.1mm | ||
Colour Light Grey | ||
Hazardous Area Certification No | ||
IP Rating IP54 | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 100°C | ||
Standards/Approvals UL File no. E79903 | ||
Series SKINDICHT BL | ||
- COO (Country of Origin):
- DE

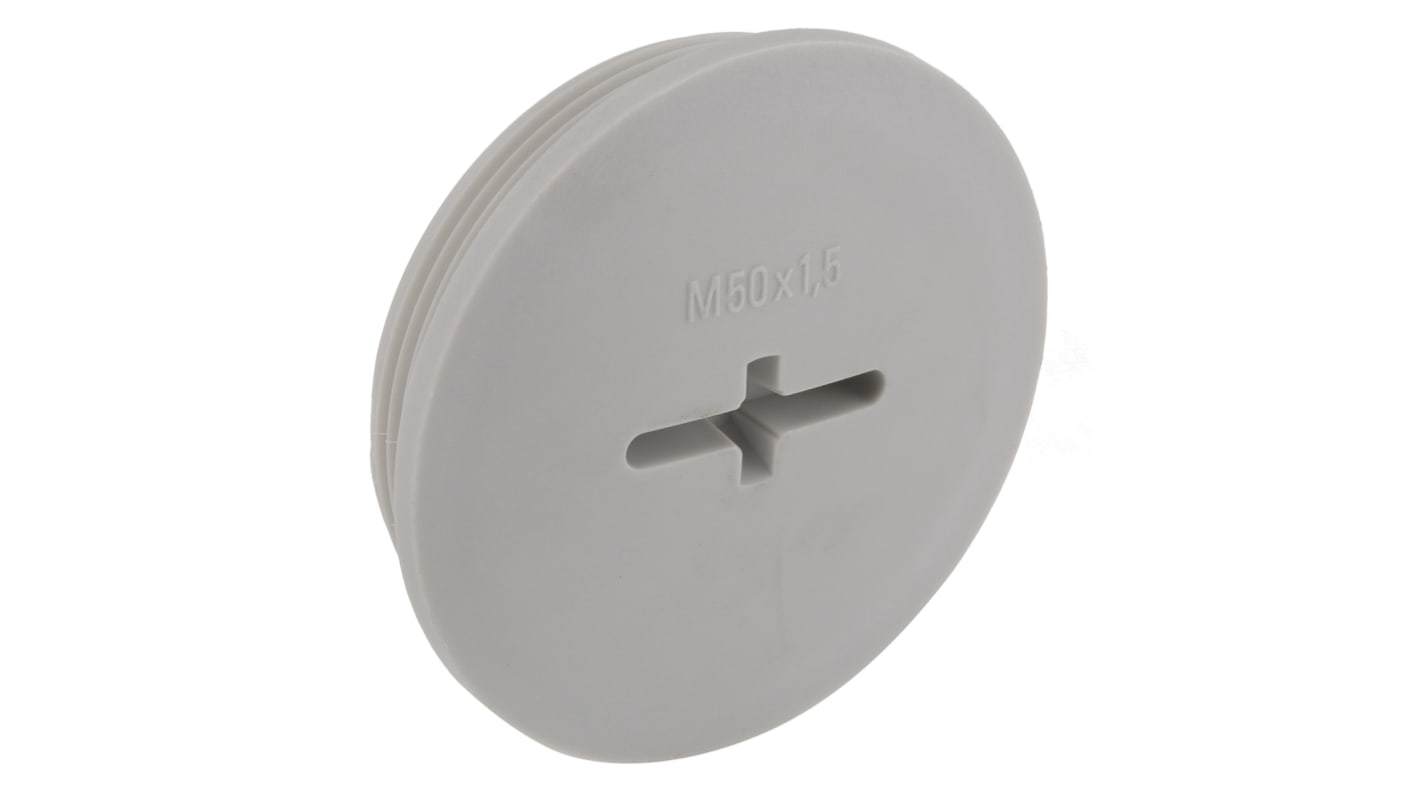

LAPP Cable Gland Plug, Blanking Type, IP54 Rating - SKINDICHT Series - 52006160
This cable gland plug from LAPP helps to seal pre-drilled holes in junction boxes and panels while they're not in use. It's made from polyamide with glass fibre reinforcement, so it's a thermally-stable unit that's strong and resistant to wear, chemicals and impact. With the addition of an O-ring, it gives you an IP68 rating. This means it's dust-tight and suitable for immersion in water up to three meters deep.
• Threaded, with a slot in the top for quick and easy installation and removal
• Material is slow burning to maximise the fire safety of control panels and junction boxes
Applications
• Process control equipment
• Industrial automation networks
• Power distribution enclosures
• Telecommunications industry
Is this blanking plug suitable for hot environments?
This cable gland plug has a wide operating temperature range between -40°C and +100°C, so you can use it in demanding environments.
Lapp Blanking Plug - Metric
From Lapp, these blanking plugs are used to close over pre-drilled threaded bore holes. If a cable opening in a panel, junction box or machine housing has become redundant, these blanking plugs can be used to seal the bore hole.
Ensuring a low level of environmental resistance (or higher when coupled with an o-ring) these blind plugs have far more use than the merely aesthetic, and can help protect wiring and machinery components.
Features and Benefits
• Robust Glass Fibre Reinforced Construction
• IP54 Protection (IP68 when used with appropriate o-ring)
• Metric Sizes
Applications
These blind plugs can be used in;
• Control Cabinet Manufacturing
• Distribution Boxes
• Junction Boxes
Accessories
These blind plugs can be used with corresponding Lapp o-rings for added environmental sealing.
• 664-4609 are M 12 x 1.5mm O-Rings
• 664-4606 are M 12 x 2.0mm O-Rings
• 664-4603 are M 16 x 1.5mm O-Rings
• 664-4612 are M 16 x 2.0mm O-Rings
• 664-4619 are M 20 x 1.5mm O-Rings
• 664-4615 are M 20 x 2.0mm O-Rings
• 664-4628 are M 25 x 2.0mm O-Rings
• 664-4621 are M 32 x 2.0mm O-Rings
• 664-4625 are M 40 x 2.0mm O-Rings
• 664-4634 are M 50 x 2.0mm O-Rings
