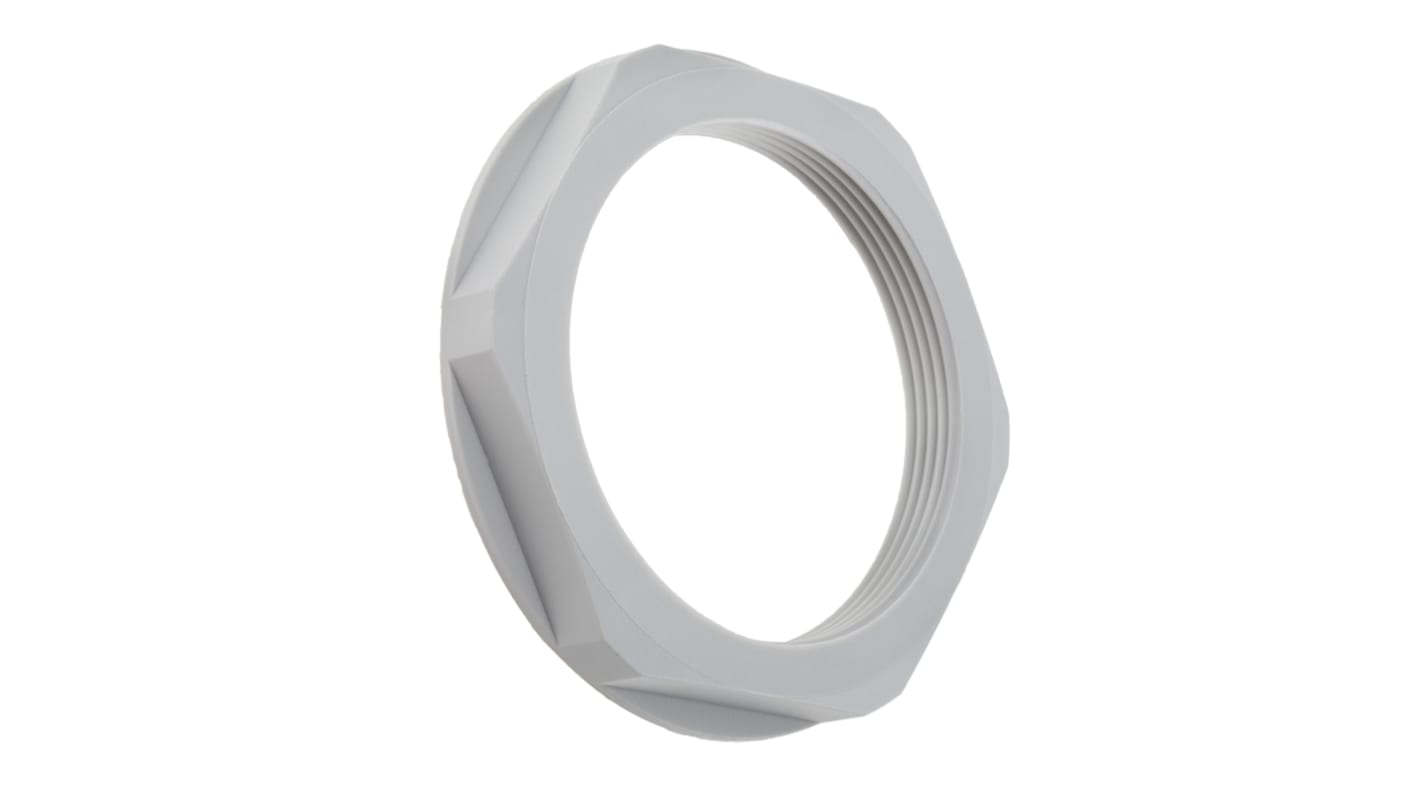

Lapp Grey Polyamide Cable Gland Locknut, PG13.5 Thread

  • RS Stock No. 817-2636
  • Mfr. Part No. 53019031
  • Manufacturer Lapp
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

SKINTOP GMP-GL-M Locknuts

From Lapp, the Skintop GMP-GL-M series of lock nuts are for use with corresponding plastic Skintop cable glands. They lock the glands into boreholes that don’t have threads, for added mechanical stability where it counts.

The lock nuts have a robust fibre-glass re-enforced body, with a supporting surface for a spanner that helps prevent scratching and damage to the housing during assembly. For a secure and easy connection suitable for demanding environments, these lock nuts are essential.

Features and Benefits

• Easy to Install
• UV Resistant
• Temperature Resistant
• Oil Resistant
• High Level of Chemical Resistance
• Operating Temperature Range Fixed: -40°C to +100°C
• Operating Temperature Range Dynamic: -20°C to +100°C

Applications

Skintop Click glands can be used whenever fast and convenient cable connection is needed, and offer quick and easy cable termiantion to panels, junction boxes and equipment.

Note

UL approval only when used with the UL-approved SKINTOP® polyamide cable glands

Specifications
Attribute Value
Material Polyamide
Thread Size PG13.5
Colour Grey
Minimum Operating Temperature -20°C
Maximum Operating Temperature +100°C
4525 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 5)
MYR 1.028
units
Per unit
Per Pack*
5 - 70
MYR1.028
MYR5.14
75 - 245
MYR1.008
MYR5.04
250 +
MYR0.99
MYR4.95
*price indicative
