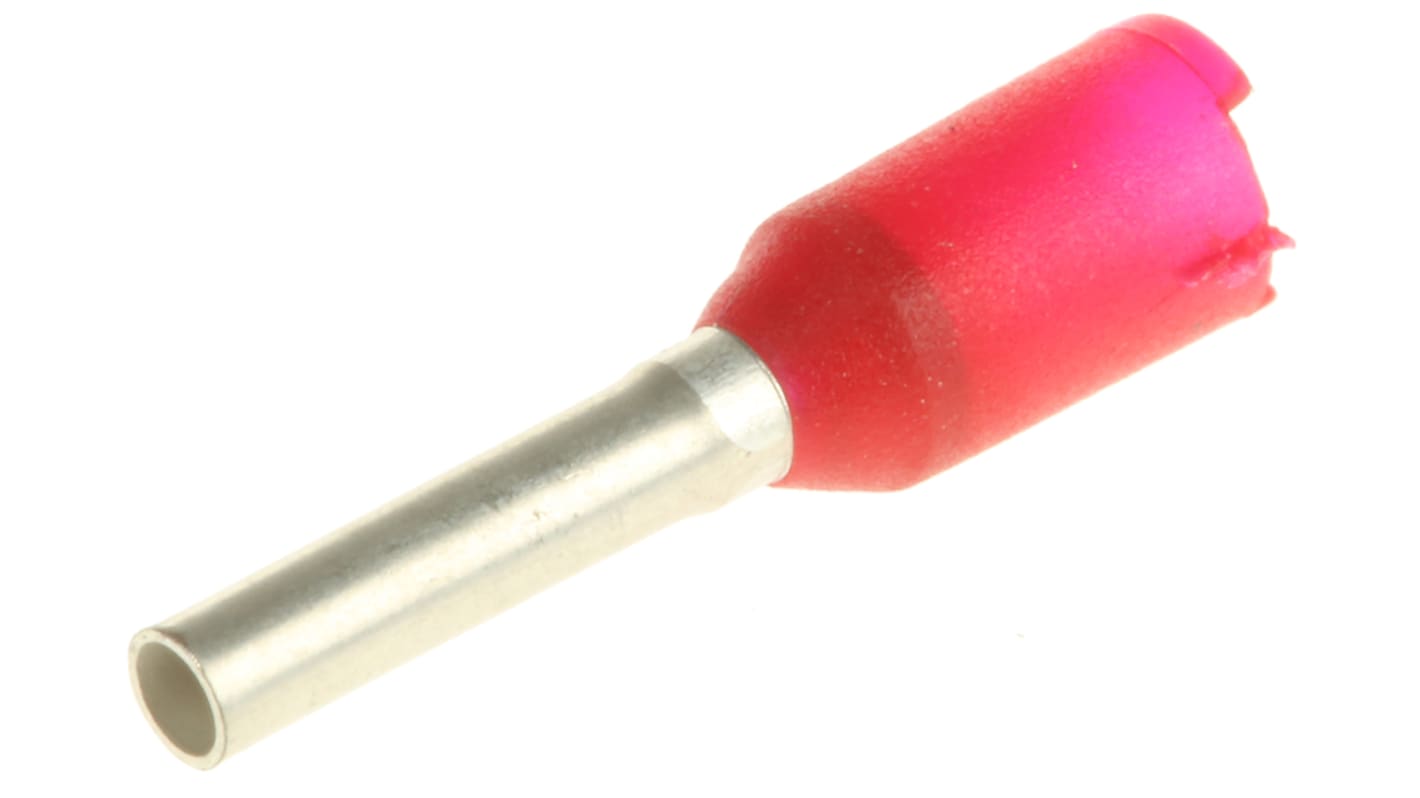

Weidmüller Insulated Crimp Bootlace Ferrule, 8mm Pin Length, 1.4mm Pin Diameter, 1mm² Wire Size, Red
- RS Stock No.:
- 204-6705
- Mfr. Part No.:
- 9004330000
- Manufacturer:
- Weidmüller
3000 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
1000 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Box of 500)
MYR0.421
| Units | Per Unit | Per Box* |
| 500 - 2000 | MYR0.421 | MYR210.50 |
| 2500 + | MYR0.379 | MYR189.50 |
| *price indicative | ||
- RS Stock No.:
- 204-6705
- Mfr. Part No.:
- 9004330000
- Manufacturer:
- Weidmüller
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Stripax plus pliers and wire-end ferrules
Stripax plus pliers allow you to cut, strip wires between 0.5 and 2.5 mm2 and crimp wire-end ferrules with the same cross section.
Wires can be cut and stripped without clutch crimping the wire-end ferrules. Crimping complies with EN standard 50027 and with DIN 6228. Automatic feeding of wire-end ferrules.
The wire-end ferrules are supplied in packs of 500 split into strips of 50 parts each (see stock numbers 204-6682, 204-6698, 204-6705, 204-6711 and 204-6727)
Stock number 204-6676 is a kit consisting of a carry case containing 1 x pliers, 250 x 1mm2 wire-end ferrules and 250 x 1.5 mm2 wire-end ferrules.
Stock number 286-1009 is a STRIPAX PLUS 2.5 crimp tool
Wires can be cut and stripped without clutch crimping the wire-end ferrules. Crimping complies with EN standard 50027 and with DIN 6228. Automatic feeding of wire-end ferrules.
The wire-end ferrules are supplied in packs of 500 split into strips of 50 parts each (see stock numbers 204-6682, 204-6698, 204-6705, 204-6711 and 204-6727)
Stock number 204-6676 is a kit consisting of a carry case containing 1 x pliers, 250 x 1mm2 wire-end ferrules and 250 x 1.5 mm2 wire-end ferrules.
Stock number 286-1009 is a STRIPAX PLUS 2.5 crimp tool
Specifications
Attribute | Value |
|---|---|
| Maximum Wire Size mm² | 1mm² |
| Pin Diameter | 1.4mm |
| Insulation Material | PP |
| Number of Entries | 1 |
| Colour | Red |
| Pin Length | 8mm |
| Insulation | Insulated |
| Maximum Wire Size AWG | 17AWG |
| Overall Length | 14mm |
