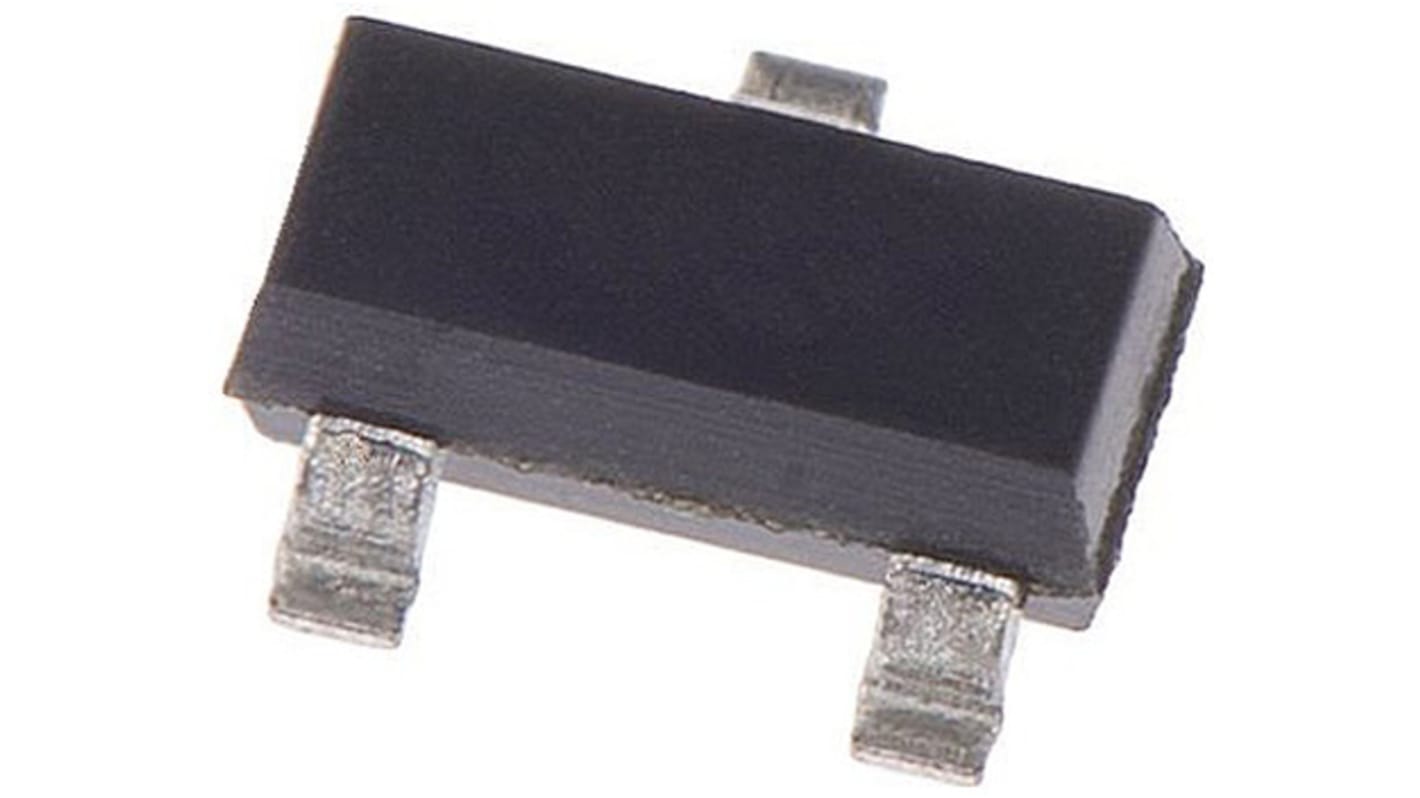

onsemi SMMBTA56LT1G PNP Transistor, -500 mA, -80 V, 3-Pin SOT-23
- RS Stock No.:
- 781-5250
- Mfr. Part No.:
- SMMBTA56LT1G
- Manufacturer:
- onsemi
Temporarily out of stock - back order for despatch 15/07/2024, delivery within 4 working days from despatch date
Added
Price Each (In a Pack of 50)
MYR1.131
| Units | Per Unit | Per Pack* |
| 50 - 700 | MYR1.131 | MYR56.55 |
| 750 - 1450 | MYR0.817 | MYR40.85 |
| 1500 + | MYR0.81 | MYR40.50 |
| *price indicative | ||
- RS Stock No.:
- 781-5250
- Mfr. Part No.:
- SMMBTA56LT1G
- Manufacturer:
- onsemi
Technical data sheets
Legislation and Compliance
Product Details
Small Signal PNP Transistors, ON Semiconductor
Standards
Manufacturer Part Nos with S or NSV prefix are automotive qualified to AEC-Q101 standard.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Transistor Type | PNP |
| Maximum DC Collector Current | 500 mA |
| Maximum Collector Emitter Voltage | 80 V |
| Package Type | SOT-23 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 225 mW |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | -80 V dc |
| Maximum Emitter Base Voltage | -4 V |
| Maximum Operating Frequency | 100 MHz |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Dimensions | 3.04 x 2.64 x 1.11mm |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
