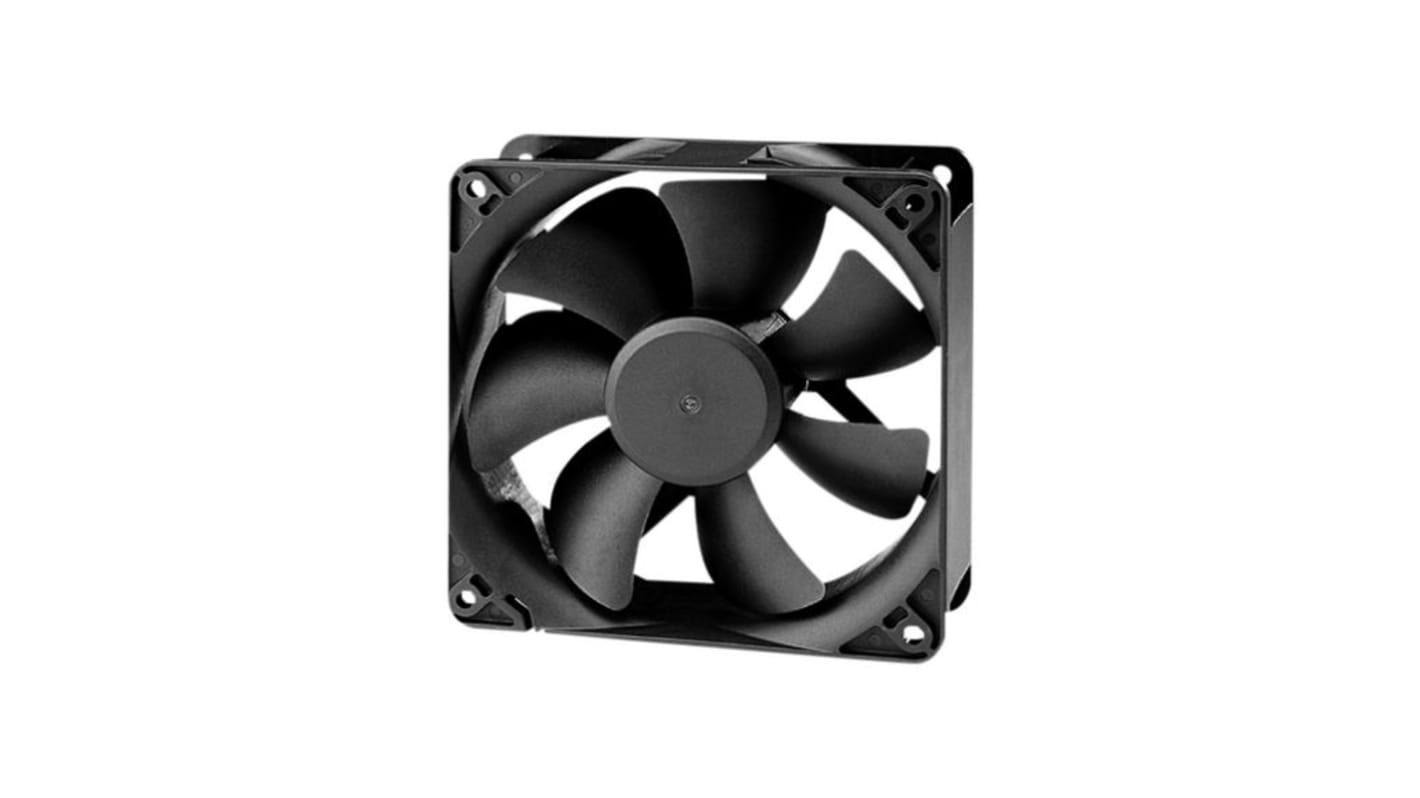

Sunon MEC Series Axial Fan, 24V dc, 116 cfm, 5.4 W, 224 mA Max 120 mm 120mm 38 mm
- RS Stock No.:
- 283-6268
- Distrelec Article No.:
- 301-48-116
- Mfr. Part No.:
- MEC0382V2-000U-A99
- Manufacturer:
- Sunon
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 283-6268
- Distrelec Article No.:
- 301-48-116
- Mfr. Part No.:
- MEC0382V2-000U-A99
- Manufacturer:
- Sunon
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sunon | |
| Product Type | Axial Fan | |
| Supply Voltage | 24V dc | |
| Power Consumption | 5.4W | |
| Maximum Current | 224mA | |
| Air Flow | 116cfm | |
| Noise Level | 44dBA | |
| Fan Speed | 2600rpm | |
| External Depth | 38mm | |
| Fan Frame Size | 120 x 120 x 38 mm | |
| Bearing Type | Vapo | |
| Fan Frame Type | Squre | |
| Height | 120mm | |
| Depth | 38mm | |
| Standards/Approvals | No | |
| Width | 120mm | |
| Series | MEC | |
| Select all | ||
|---|---|---|
Brand Sunon | ||
Product Type Axial Fan | ||
Supply Voltage 24V dc | ||
Power Consumption 5.4W | ||
Maximum Current 224mA | ||
Air Flow 116cfm | ||
Noise Level 44dBA | ||
Fan Speed 2600rpm | ||
External Depth 38mm | ||
Fan Frame Size 120 x 120 x 38 mm | ||
Bearing Type Vapo | ||
Fan Frame Type Squre | ||
Height 120mm | ||
Depth 38mm | ||
Standards/Approvals No | ||
Width 120mm | ||
Series MEC | ||
- COO (Country of Origin):
- CN
The Maglev Motor Fan manufactured This fan features a dimension of 120X120X38 mm, making it suitable for various applications. With a voltage range of 10-27.6 VDC and a rated voltage of 24 VDC, it provides reliable and efficient performance. The Vapo bearing system ensures smooth and quiet operation, while the thermoplastic PBT frame and fan blade offer durability. With a rated speed of 2600 RPM and an air flow of 116 CFM, this fan provides efficient cooling. It also has a static pressure of 0.26 Inch-HO2, ensuring proper ventilation.
Low noise level of 44 dB(A) for silent operation
UL, CUR, TUV and CE certified for safety and quality
