TE Connectivity, AMPSEAL 16 Automotive Connector Male Red Clip 8 Way Crimp Termination 776538-1
- RS Stock No.:
- 726-6875
- Mfr. Part No.:
- 776538-1
- Manufacturer:
- TE Connectivity

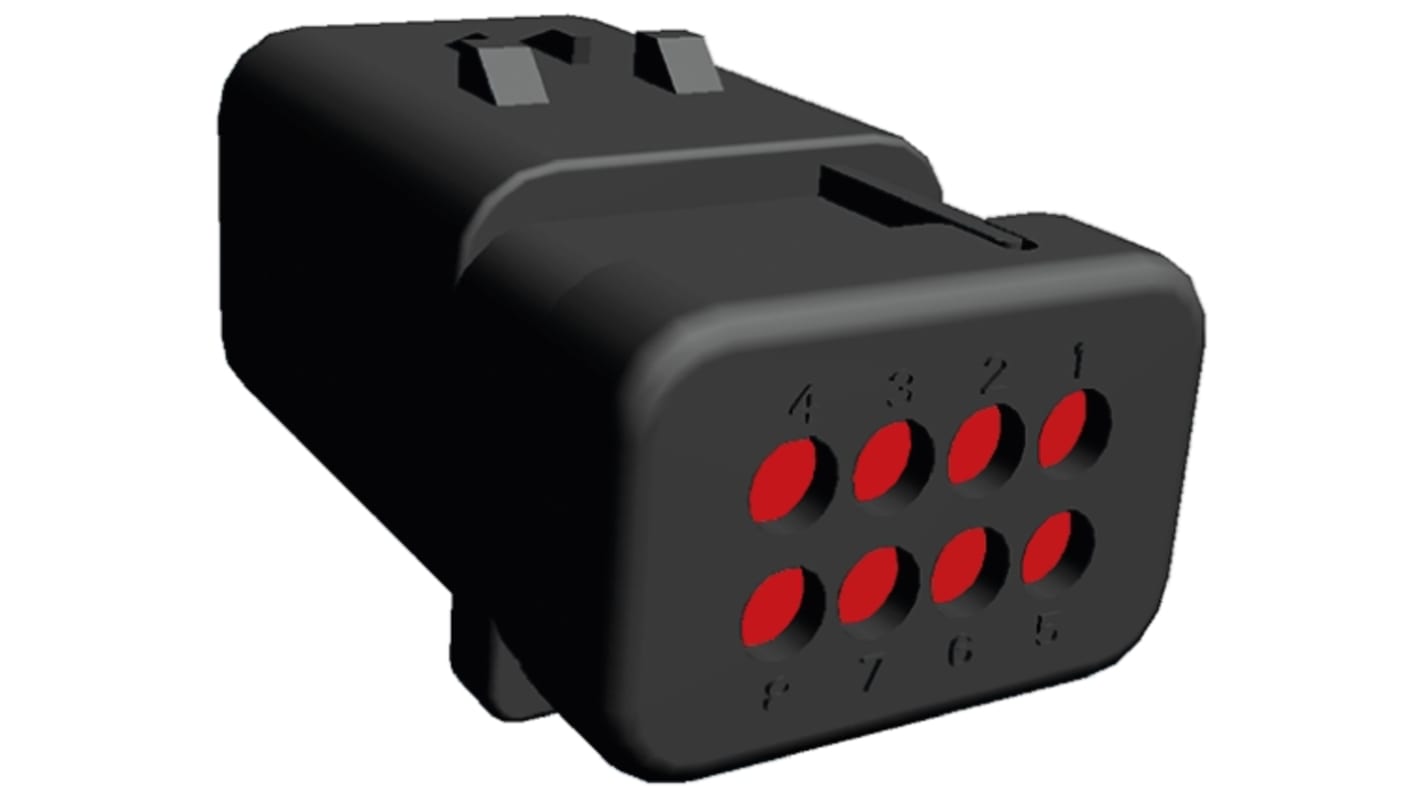

This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 726-6875
- Mfr. Part No.:
- 776538-1
- Manufacturer:
- TE Connectivity
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Automotive Connector | |
| Termination Type | Crimp | |
| Sub Type | Automotive Connector Housing | |
| Number of Contacts | 8 | |
| Current | 13A | |
| Gender | Male | |
| Number of Rows | 2 | |
| Mount Type | Clip | |
| Series | AMPSEAL 16 | |
| Cord Included | No | |
| Colour | Red | |
| IP Rating | IP67 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Depth | 47.55mm | |
| Height | 26.65mm | |
| Width | 28.6mm | |
| Standards/Approvals | EU RoHS, EU ELV | |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Automotive Connector | ||
Termination Type Crimp | ||
Sub Type Automotive Connector Housing | ||
Number of Contacts 8 | ||
Current 13A | ||
Gender Male | ||
Number of Rows 2 | ||
Mount Type Clip | ||
Series AMPSEAL 16 | ||
Cord Included No | ||
Colour Red | ||
IP Rating IP67 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Depth 47.55mm | ||
Height 26.65mm | ||
Width 28.6mm | ||
Standards/Approvals EU RoHS, EU ELV | ||
Housing Material Fibreglass Reinforced Polybutylene Terephthalate | ||
TE Connectivity AMPSEAL 16 Sealed Pin Housings with Reduced Diameter Wire Seal
AMPSEAL 16 pin cap housings with integral primary latch reinforcement. These AMPSEAL 16 pin cap housings housings have colour coding and physical keying to prevent mismating. Pin cap housings consist of a cap housing with wire seal, wire seal cover and PLR. These AMPSEAL 16 pin cap housings have a reduced diameter wire seal and accept a wire size range of 1.30 to 2.54 mm. For suitable receptacle plug housings see stock number 726-6812 typically. For suitable backshell see stock number 726-6711 typically.
TE Connectivity - AMPSEAL 16 Connector System
