TE Connectivity, AMPSEAL 16 Automotive Connector Male Red Clip 12 Way Crimp Termination 776539-1
- RS Stock No.:
- 726-6878
- Mfr. Part No.:
- 776539-1
- Manufacturer:
- TE Connectivity

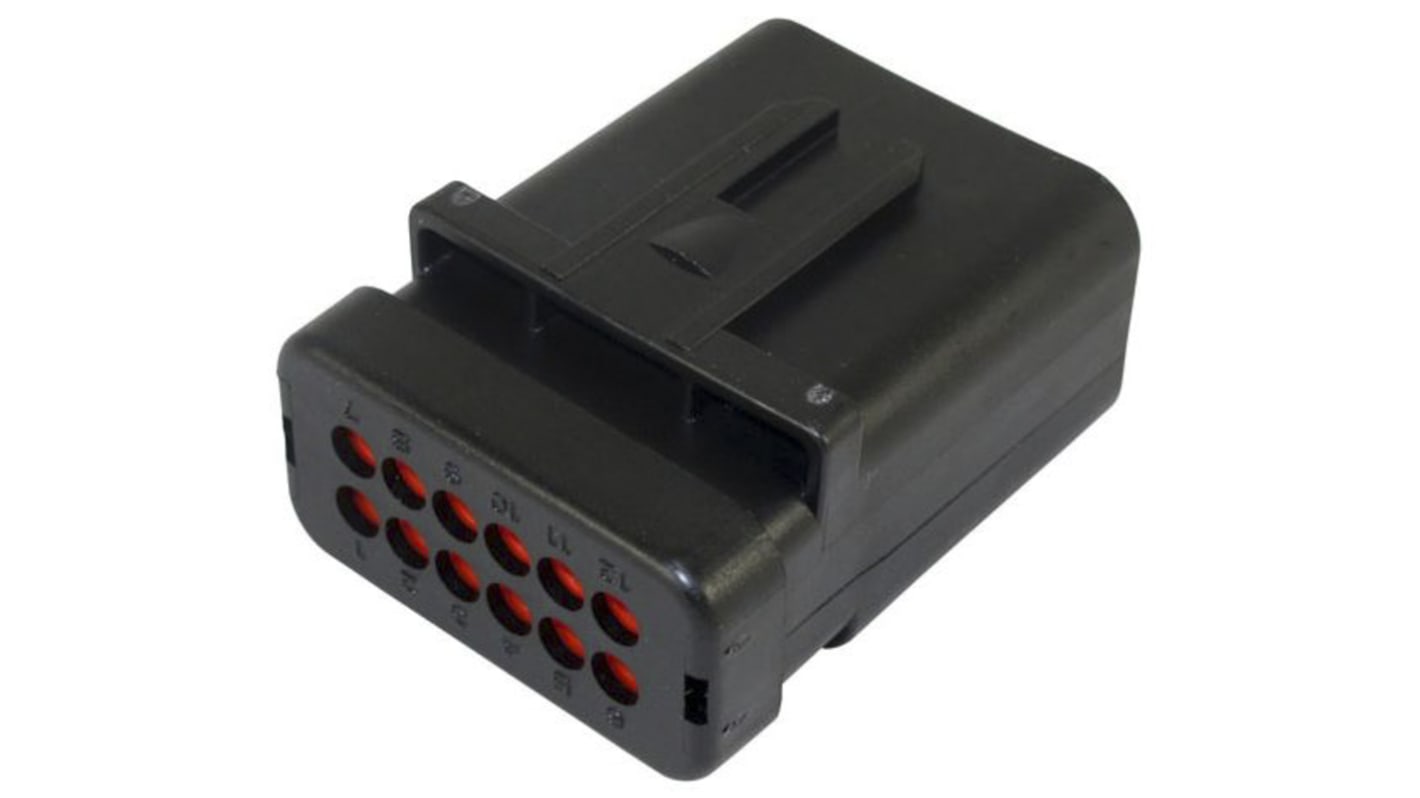

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
MYR20.38
FREE delivery for orders over RM 150.00
In Stock
- Plus 365 unit(s) shipping from 14 September 2026
- Plus 25 unit(s) shipping from 21 September 2026
- Plus 250 unit(s) shipping from 03 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 31 | MYR20.38 |
| 32 - 62 | MYR19.98 |
| 63 + | MYR19.58 |
*price indicative
- RS Stock No.:
- 726-6878
- Mfr. Part No.:
- 776539-1
- Manufacturer:
- TE Connectivity
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Automotive Connector | |
| Termination Type | Crimp | |
| Number of Contacts | 12 | |
| Sub Type | Automotive Connector Housing | |
| Current | 13A | |
| Gender | Male | |
| Number of Rows | 2 | |
| Mount Type | Clip | |
| Series | AMPSEAL 16 | |
| Cord Included | No | |
| Colour | Red | |
| IP Rating | IP67 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Width | 37.6mm | |
| Depth | 47.55mm | |
| Height | 26.65mm | |
| Standards/Approvals | EU RoHS, EU ELV | |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Automotive Connector | ||
Termination Type Crimp | ||
Number of Contacts 12 | ||
Sub Type Automotive Connector Housing | ||
Current 13A | ||
Gender Male | ||
Number of Rows 2 | ||
Mount Type Clip | ||
Series AMPSEAL 16 | ||
Cord Included No | ||
Colour Red | ||
IP Rating IP67 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Width 37.6mm | ||
Depth 47.55mm | ||
Height 26.65mm | ||
Standards/Approvals EU RoHS, EU ELV | ||
Housing Material Fibreglass Reinforced Polybutylene Terephthalate | ||
TE Connectivity AMPSEAL 16 Sealed Pin Housings with Reduced Diameter Wire Seal
AMPSEAL 16 pin cap housings with integral primary latch reinforcement. These AMPSEAL 16 pin cap housings housings have colour coding and physical keying to prevent mismating. Pin cap housings consist of a cap housing with wire seal, wire seal cover and PLR. These AMPSEAL 16 pin cap housings have a reduced diameter wire seal and accept a wire size range of 1.30 to 2.54 mm. For suitable receptacle plug housings see stock number 726-6812 typically. For suitable backshell see stock number 726-6711 typically.
TE Connectivity - AMPSEAL 16 Connector System
