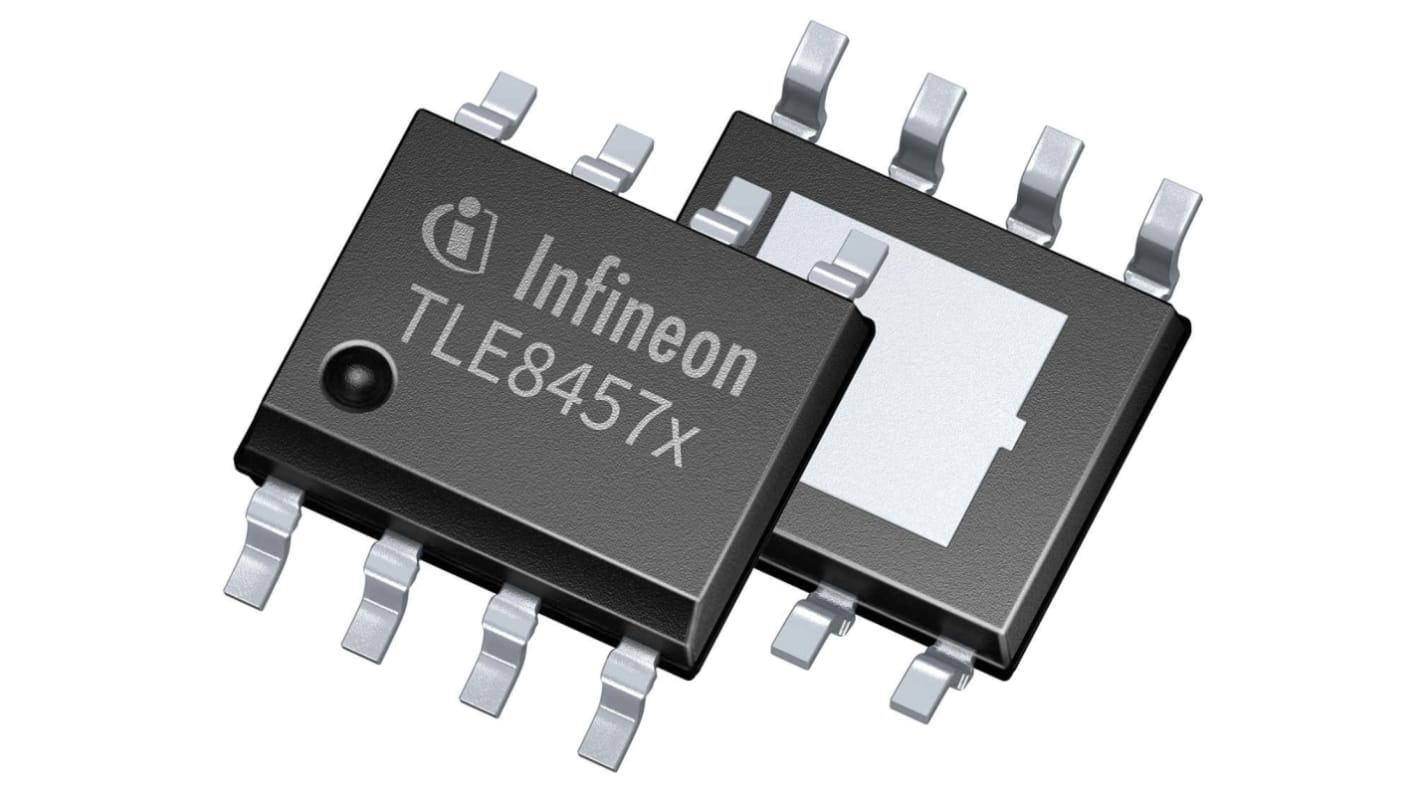

Infineon TLE8457DSJXUMA1, 1 Line Transceiver

View all ADSL Interface ICs
Bulk discount available

Subtotal (1 reel of 2500 units)*

MYR9,217.50

Add to Basket
Select or type quantity
In Stock
  • Plus 2,500 unit(s) shipping from 07 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
Per Reel*
2500 - 2500MYR3.687MYR9,217.50
5000 - 5000MYR3.576MYR8,940.00
7500 +MYR3.469MYR8,672.50

*price indicative

RS Stock No.:
258-4132
Mfr. Part No.:
TLE8457DSJXUMA1
Manufacturer:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Number of Drivers/Receivers

1

The Infineon LIN transceiver with integrated voltage regulator a monolithic integrated LIN transceiver and low drop-out voltage regulator. The device is designed to supply a microcontroller and peripherals with up to 70 mA, provide protection through VCC under voltage reset, while also offering bi-directional bus communication compliant to LIN specification 2.2 A and SAE J2602. With the ultra low quiescent current consumption of typical 20 μA in standby mode the voltage regulator is especially suited for applications that are permanently supplied by the battery.

Very low leakage current on the BUS pin
VCC under voltage detection with RESET output
TxD protected with dominant time-out function
BUS short to VBAT protection and BUS short to GND handling
Over temperature protection and supply under voltage detection

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
