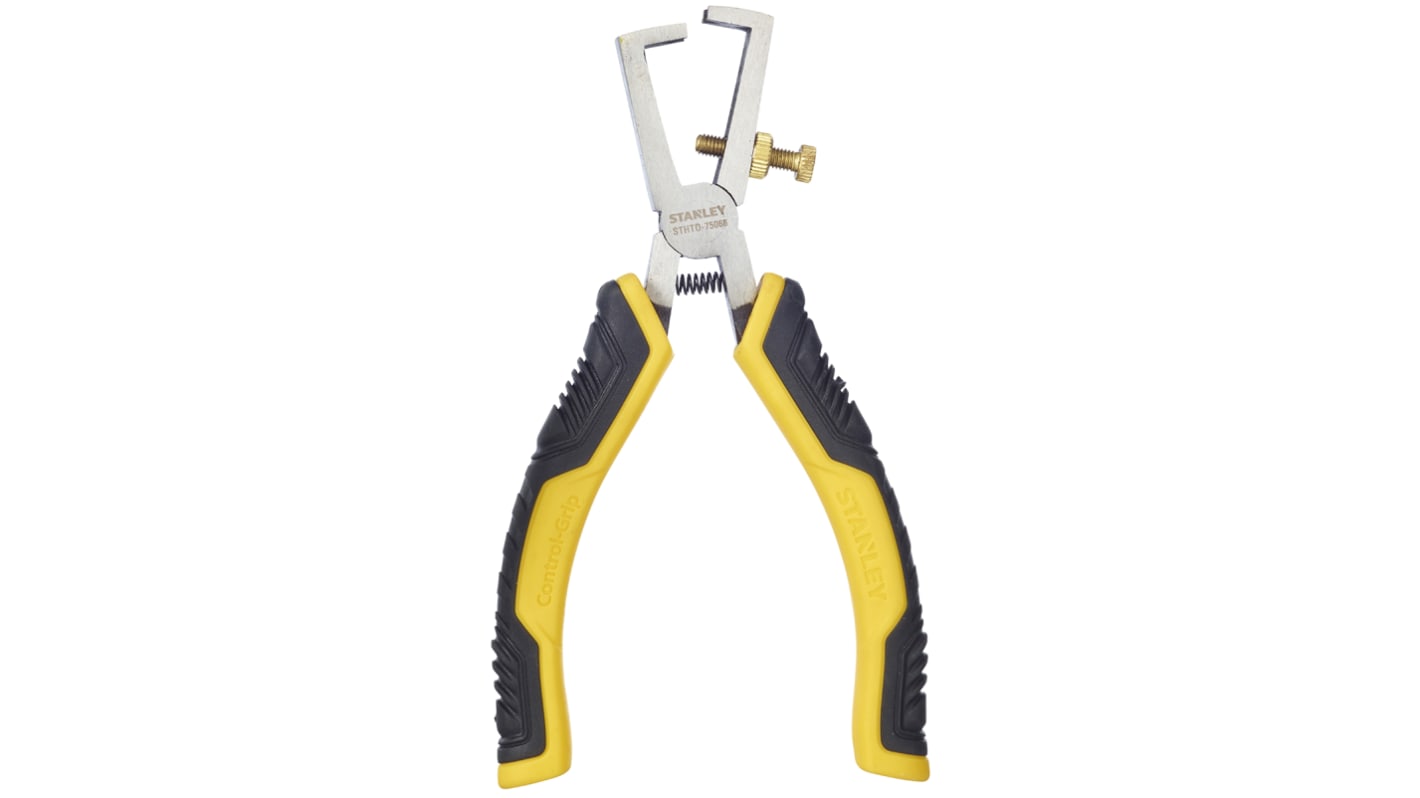

Stanley Wire Stripper, 150mm overall length

  • RS Stock No. 125-2037
  • Mfr. Part No. STHT0-75068
  • Manufacturer Stanley
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): CN
Product Details

STANLEY 150MM WIRE STRIPPER DYNAGRIP CONTROL GRIP

This high-quality, forged carbon steel made wire strippers from Stanley has been designed for the most demanding professionals and DIY enthusiasts. Specially induction hardened and tempered jaws ensure superior durability and long life operation. Stanley patented DynaGrip handles provide a comfortable, safe and firm grip. Handles are also spring-loaded for smooth operation and reduced fatigue. This handy wire stripper is also capable of crimp pre-insulated plugs and tubular lugs.

Features and Benefits:

• Wire Strippers made from forged carbon steel with an induction hardened blade and tempered jaws for long life
• Precision milled cutting edges and pivot for smooth opening and closing of the jaws
• All exposed steel surfaces have been sanded and are protected against corrosion
• Bi-material, ergonomically designed handle that is easy to hold, even with oily hands
• Crimping pre-insulated plugs 1.5, 2.5, 6mm² max and tubular lugs from 1.5 to 6 mm² max
• Feathers for touch control
• Strips wires from 0.75 to 6 mm² max
• Soft spot for palm rest
• Tough spot to allow force in the application
• Contours to fit in a palm more comfortably

Typical Applications:

Wire strippers are a hand-held tool designed to remove insulation or outer sheath from electrical wires. Wire strippers create a neat and tidy cut to reveal wires, ready to be soldered or have a connector attached. There are various types available from stripping the cable to cutting copper and conduit. Wire strippers are primarily used by electricians or mechanics but are equally at home in any DIY toolbox.

FAQs:

Is this wire stripper VDE certified?
No, this wire stripper isn't VDE approved and cannot be used on live electric cables.

Is this cable stripper suitable for flat cables?
This wire stripper has been designed to work with round cables only.

Specifications
Attribute Value
Cable Type Round
Maximum Size 5mm
Overall Length 150mm
25 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 97.21
units
Per unit
1 +
MYR97.21
