RS PRO Wire Stripper 0.2 → 6mm, 170mm overall length

  • RS Stock No. 613-044
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): TW
Product Details

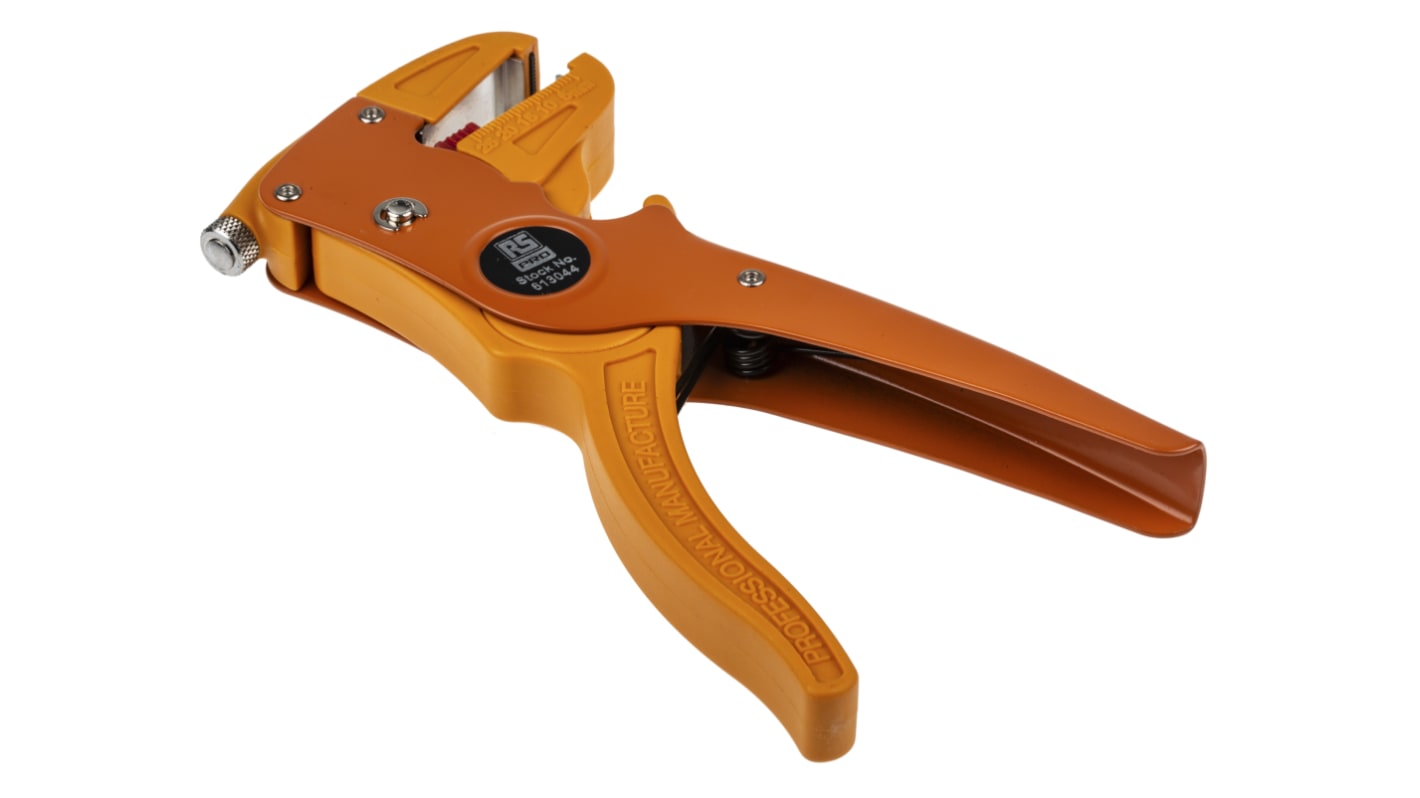

Automatic (pistol style) Wire Stripper

Self-adjusting with hardened steel blades.
Middle carbon steel sheet frame
Glass filled nylon injection soft handle
Integral wire cutter (for single wires), stripping length adjustment and jaw tension control
Replacement stripping jaws are available (RS 613-050)

Dark orange powder coated steel frame Cutting knife blade is a chemical blackened finish
Golden zinc plating for the stripper knife
Light orange coloured nylon handle

HARDNESS:

Cutting and stripper knife blades are heat teated to hrc 48 to 53° Rivet hrc 25°up

What's Included:

Wire automatic pistol style self-adjusting wire stripper pliers Complete with tension adjustment copper screw
Heat-treatment auto-spring
Insulated hardened nylon handle
Mal-position (stripper knife blade chamfer – 10°)

Specifications
Attribute Value
Cable Type Round
Stripping Range 0.2 → 6mm
Minimum Size 0.2mm
Maximum Size 6mm
Overall Length 170mm
1 Within 2 working day(s)
1536 Within 4 working day(s) (Global stock)
Price Each
MYR 71.05
units
Per unit
1 +
MYR71.05
