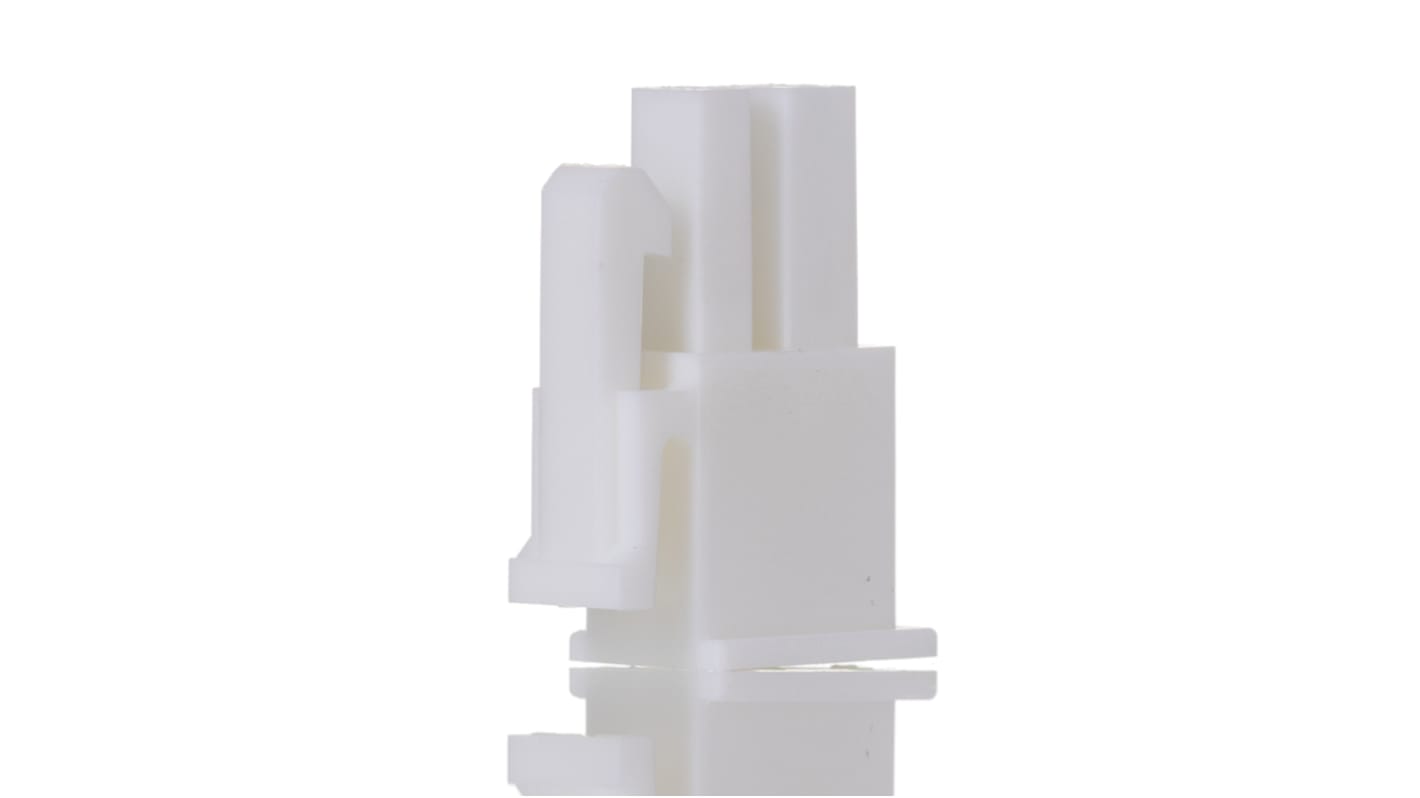

Molex, Mini-Fit Jr Female Connector Housing, 4.2mm Pitch, 2 Way, 2 Row

Mini-Fit Junior 4.2 mm pitch crimp receptacle and plug housings which form part of the Mini-Fit Junior power connectors interconnection system. Mini-Fit Junior power connectors are able to handle up to 13A per circuit making them ideal for use in high current applications. These Mini-Fit Junior crimp housings have fully isolated terminals for protection against, debris, arcing and damage caused by mishandling. The housings incorporate polarization and keying features to prevent misalignment and mismating. A positive locking mechanism consisting of an easy to operate thumb latch provides a secure connection with the mating connector. This positive locking mechanism prevents accidental unmating caused by excessive shock or vibration. An audible click indicates that the connector is fully mated. These Mini-Fit Junior 4.2 mm plug and receptacle housings are available with a UL94V-0 or UL94V-2 housing material, a range of contact configurations and accept standard Mini-Fit and Mini-Fit Plus crimp terminals

• Can handle Up to 13A current per circuit
• Fully isolated terminals
• Polarization and keying to prevent mismating
• Positive locking mechanism for secure mating connection
• Audible click for mating confirmation

Mini-Fit Junior power connectors are ideal for use in high current, high density wire to wire and wire to board applications that require design flexibility. Applications include consumer white goods, office equipment, industrial automation equipment, industrial networks, rack-mount servers, routers and switches.

Need to keep your electronic connections in order? With this two-way connector housing from Molex, wires stay firmly fixed to a printed circuit board. As part of the Mini-Fit Jr power connector system, this receptacle is widely compatible with other elements in your wire-to-board or wire-to-wire setup. Connections stay true throughout industrial vibrations thanks to a positive locking mechanism. Thanks to a maximum current of 13A per contact, it's up to the challenge of demanding applications.

• Fully isolated terminals protect against damage during handling
• Low-halogen materials minimise toxic fumes in the event of a fire
• Wide operating temperature range between -40°C and +105°C for use in harsh conditions
• Durable nylon body resists impact and chemicals for long-term reliability

• Communications systems
• Research laboratories
• Consumer electronics

A 4.2mm pitch makes this unit a compact choice that won't crowd your circuit board.
