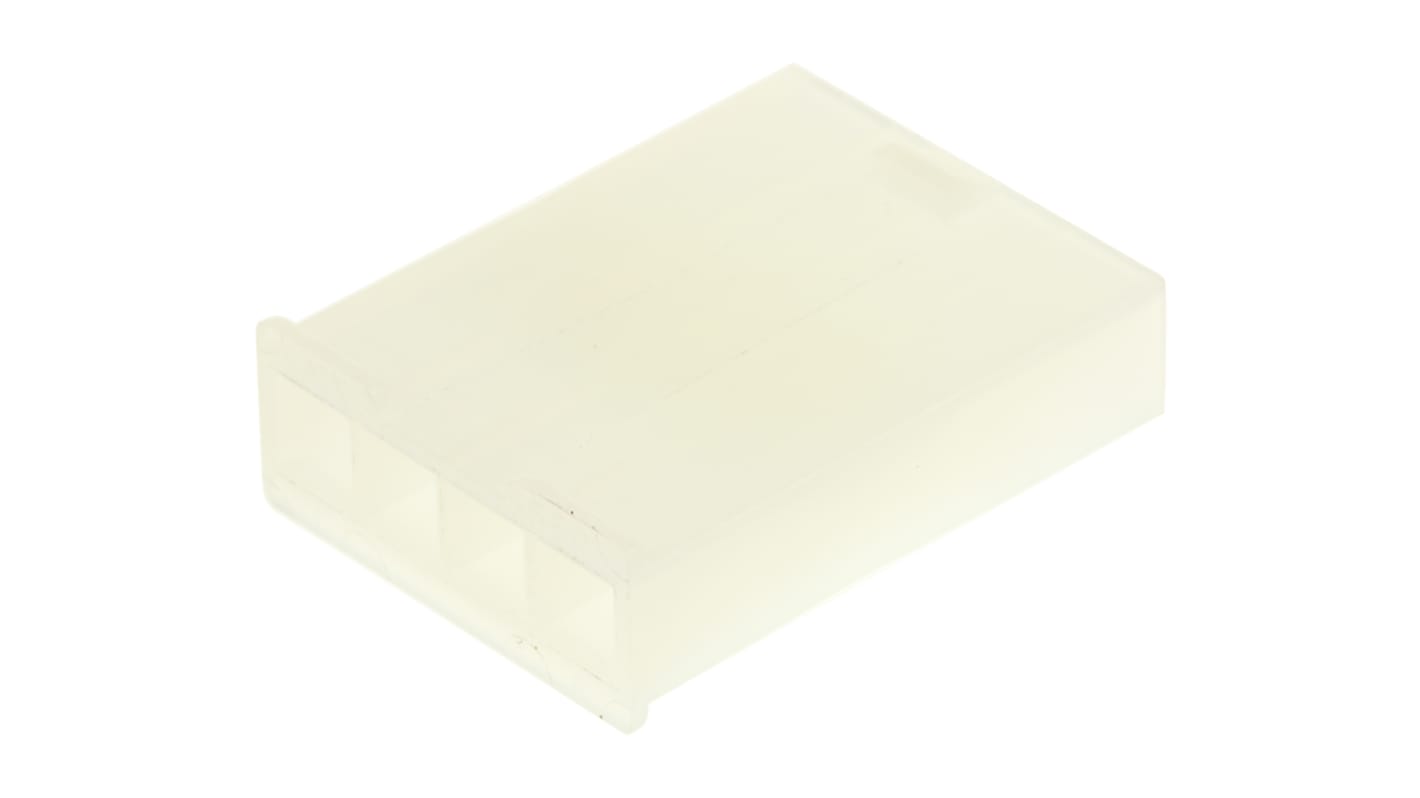

Molex, Mini-Fit Jr Male Connector Housing, 4.2mm Pitch, 4 Way, 1 Row

Mini-Fit Junior 4.2 mm pitch crimp receptacle and plug housings which form part of the Mini-Fit Junior power connectors interconnection system. Mini-Fit Junior power connectors are able to handle up to 13A per circuit making them ideal for use in high current applications. These Mini-Fit Junior crimp housings have fully isolated terminals for protection against, debris, arcing and damage caused by mishandling. The housings incorporate polarization and keying features to prevent misalignment and mismating. A positive locking mechanism consisting of an easy to operate thumb latch provides a secure connection with the mating connector. This positive locking mechanism prevents accidental unmating caused by excessive shock or vibration. An audible click indicates that the connector is fully mated. These Mini-Fit Junior 4.2 mm plug and receptacle housings are available with a UL94V-0 or UL94V-2 housing material, a range of contact configurations and accept standard Mini-Fit and Mini-Fit Plus crimp terminals

• Can handle Up to 13A current per circuit
• Fully isolated terminals
• Polarization and keying to prevent mismating
• Positive locking mechanism for secure mating connection
• Audible click for mating confirmation

Mini-Fit Junior power connectors are ideal for use in high current, high density wire to wire and wire to board applications that require design flexibility. Applications include consumer white goods, office equipment, industrial automation equipment, industrial networks, rack-mount servers, routers and switches.

Lock in a terminal attached to your PCB using this connector housing from Molex. It completely shields the contacts to prevent dirt and moisture from tripping up your circuitry. As it has 4 contacts, you can slot in multiple crimp terminals to support wire-to-wire and wire-to-board transmissions. With a current rating of 13A per circuit, this unit can safely handle the demands of your high-powered electrical system.

• Compact pitch size of 4.2mm to handle small conductors
• Integrated lock-to-mating feature for secure terminal connection
• Performs reliably in challenging temperatures from -40°C to +105°C

• Server rooms
• Electrical engineering
• HVAC systems

Yes, the connector housing resists burning thanks to its self-extinguishing nylon body.

This housing gives an audible click to let you know the terminal is securely connected.

Molex Minifit Jr.™ Series
