Molex, SL Female Connector Housing, 2.54mm Pitch, 10 Way, 1 Row

RS Stock No.:: 167-1864
Mfr. Part No.:: 50-57-9010
Manufacturer:: Molex

Molex, SL Female Connector Housing, 2.54mm Pitch, 10 Way, 1 Row

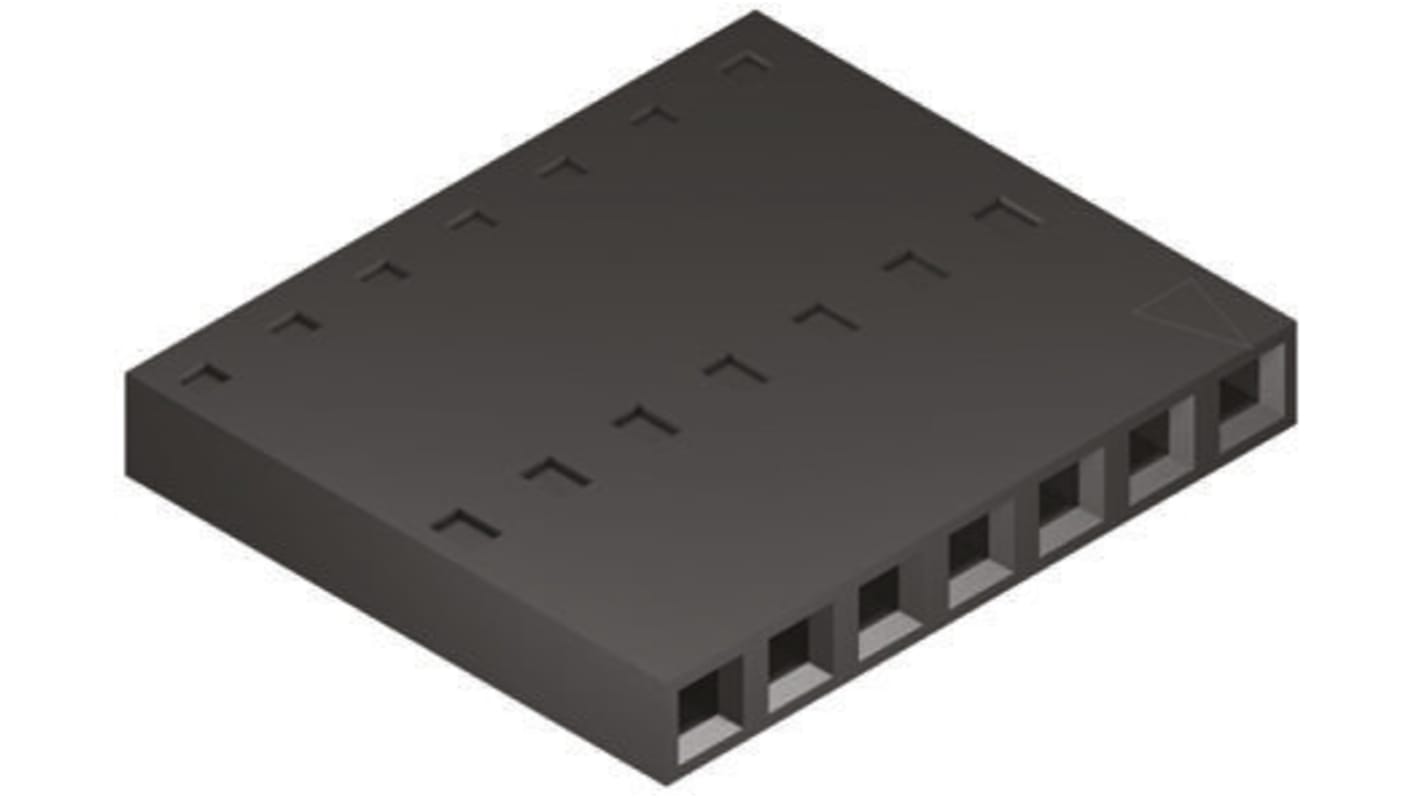

This image is representative of the product range

Bulk discount available

Subtotal (1 bag of 500 units)**

MYR1,201.50

2500 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Units	Per Unit	Per Bag**
500 - 500	MYR2.403	MYR1,201.50
1000 - 1500	MYR2.35	MYR1,175.00
2000 +	MYR2.307	MYR1,153.50

**price indicative

RS Stock No.:: 167-1864
Mfr. Part No.:: 50-57-9010
Manufacturer:: Molex

Crimp Housings, 70066 A, C, G, H and N Series

The Stackable Linear (SL) 70066 Series of 2.54mm pitch receptacle connector housings from Molex have been designed for low power and wire to board and wire to wire applications across a number of different industries. The SL range offers both flexibility in the design and configuration fittings and can be used in high vibration environments.

Features and Benefits

• 2.54mm pitch
• 2 to 25 circuits
• Dual and single row housing
• High temperature headers enable the use of reflow ovens in fixing headers to the PCB
• Black in colour
• Stackable housing

Version A (Non-polarized)

Mates with 70246, 70543, 70553 and 74099 Series headers typical stock numbers: 670-1771 , 670-0810 , 670-0844 and 808-4270 respectively.
Use with 70058 Series terminals typical stock number 670-6293

Version C (Polarized, front ribbed)

Mates with 70543 and 70553 Series headers typical stock numbers: 670-0810 and 670-0844 respectively
Use with 70058 Series terminals typical stock number 670-6293

Version G (Polarized: positive latch)

Mates with 70543 and 70553 Series headers typical stock numbers: 670-0810 and 670-0844 respectively and with 70107A and B Series housings typical stock numbers 679-5965 and 670-4098 respectively
Use with 70058 Series terminals typical stock number 670-6293

Version H (Polarized, friction lock)

Mates with 6373 and 7478 Series headers typical stock numbers 679-5583 and 679-5448 respectively
Use with 70058 Series terminals typical stock number 670-6293

Version N (TPA™ (connector position assurance) ensures that terminals are fully seated and guarantees that the terminals will not back out)

Mates with 70543 and 70553 Series headers typical stock numbers 670-0810 and 670-0844 respectively and with 70107A and B Series housings typical stock numbers 679-5965 and 670-4098 respectively
Use with 70058 Series terminals typical stock number 670-6293

Note

For Version D see stock number 670-3890

Version A (Non-polarized)

Mates with 70246, 70543, 70553 and 74099 Series headers typical stock numbers: 670-1771 , 670-0810 , 670-0844 and 808-4270 respectively.

Use with 70058 Series terminals typical stock number 670-6293

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

2.54mm Molex C-Grid/SL Series

Attribute	Value
Number of Contacts	10
Number of Rows	1
Pitch	2.54mm
Gender	Female
Mounting Type	Cable Mount
Series	SL
For Use With	SL Connector
Body Orientation	Straight
Length	25.37mm
Width	2.51mm
Housing Material	PBT
