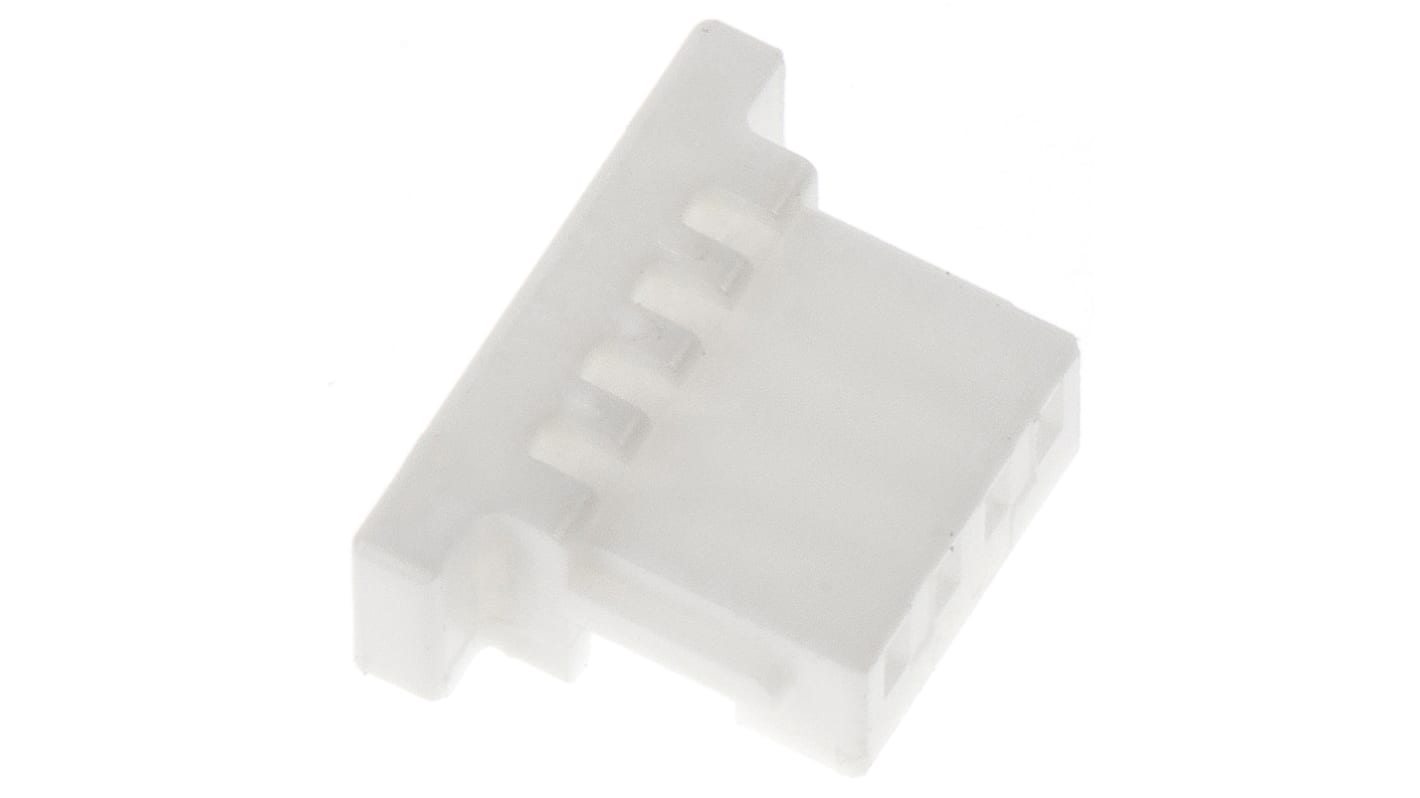

JST, SH Connector Housing, 4 Way
- RS Stock No.:
- 166-7500
- Mfr. Part No.:
- SHR-04V-S-B
- Manufacturer:
- JST
2000 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
10000 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Bag of 2000)
MYR0.646
| Units | Per Unit | Per Bag* |
| 2000 - 8000 | MYR0.646 | MYR1,292.00 |
| 10000 + | MYR0.581 | MYR1,162.00 |
| *price indicative | ||
- RS Stock No.:
- 166-7500
- Mfr. Part No.:
- SHR-04V-S-B
- Manufacturer:
- JST
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
Crimp Terminal Housings
Crimp socket housing with protrusions on a 1mm pitch, which accept pre-terminated crimped leads typical stock number 311-6647.,Mate with Top or Side entry headers typical stock numbers 515-1529 and 515-1490 respectively.
The JST Crimp connector Housing of SH series is a through hole type shrouded header with 4 ways.
Low mating force
Low profile
Time and cost saving pre-terminated leads
Polarised housings
Low profile
Time and cost saving pre-terminated leads
Polarised housings
1.0mm Wire to Board - JST SH Series
The JST SH connectors are an extremely compact and versatile Wire-to-board interconnection system on a 1mm pitch utilising surface mount technology and pre-terminated leads. Available in 2, 3, 4, 8 and 10 way versions, this high quality range is suitable for many applications where board space is limited.
Low mating force
Low profile
Time and cost saving pre-terminated leads
Polarised housings
Low profile
Time and cost saving pre-terminated leads
Polarised housings
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 4 |
| Series | SH |
| Length | 7mm |
