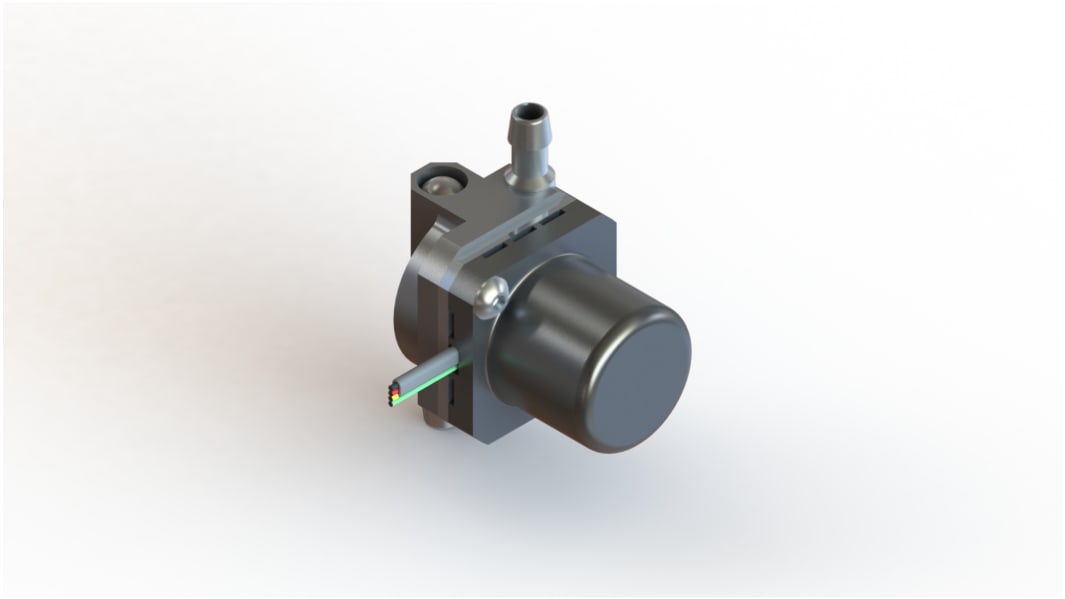

RS PRO 6 → 12V 340mbar Direct Coupling Centrifugal Water Pump, 500 → 1000ml
- RS Stock No.:
- 702-6891
- Manufacturer:
- RS PRO
11 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR596.52
| Units | Per Unit |
| 1 - 4 | MYR596.52 |
| 5 + | MYR490.94 |
- RS Stock No.:
- 702-6891
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
RS Miniature Centrifugal Pumps
High quality miniature pump range for liquids. Ideal for many general applications, including research and development, medical or aeronautical industries, miniature and portable equipment. These pumps use a centrifugal principle to deliver smooth pulseless flow. They are exceptionally quiet and reliable with a brushless drive motor. A signal output wire can be used, optionally, to provide information of status and pump speed/output.
Robust machined alloy construction
Small and lightweight with high output
Brushless drive motor
smooth pulseless flow
Very reliable operation
Output signal for performance monitoring
Submersible, weatherproof and port configuration options
Small and lightweight with high output
Brushless drive motor
smooth pulseless flow
Very reliable operation
Output signal for performance monitoring
Submersible, weatherproof and port configuration options
Specifications
Attribute | Value |
|---|---|
| Maximum Flow Rate | 500 → 1000ml |
| Supply Voltage | 12 V |
| Input Connection | 5.5mm Hose Barb |
| Maximum Head | 3.5m |
| Maximum Working Pressure | 329 mbar |
| Body Material | Aluminium |
| Coupling Type | Direct |
| Input Power | 1.5/6.7W @ 6/12V |
| Maximum Fluid Temperature | 60°C |
| Input Connection Size | 3.2mm |
| Output Connection Size | 3.2mm |
| Pump Type | Centrifugal |
| Wetted Materials | Body, Connector, Impeller, Seal |
| IP Rating | IP45 |
