W Robinson And Sons, 230 V Direct Coupling Submersible Water Pump, 200L/min

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IT
Product Details

Sewage Pumps

Manufactured from 304 stainless steel, making them ideal for use in conditions where contamination or rust is unacceptable
Motor cooled by heat exchange chamber, enabling machine to operate for long periods without being immersed
Thermal overload motor, double seal, lubricated in oil sump and interchangeable ceramic brush on rotating shaft
Insulation Class F
Self-cleaning Vortex system impeller constructed in cast stainless steel
Free passage of 20mm solids
Used to drain seepage, to pump up clear and waste rain water from gratings or wells, to pump waste and clear water of domestic, civil and industrial use, for channel irrigation system and water transferring from streams, basins and lakes, drainage of rooms, tanks and swimming pools of clear, waste, muddy and slimy water
Used also for industrial application (spraying booths, transferring liquids, washing, etc.)

Supplied with

10m H07 RNF cable conforming to current regulations

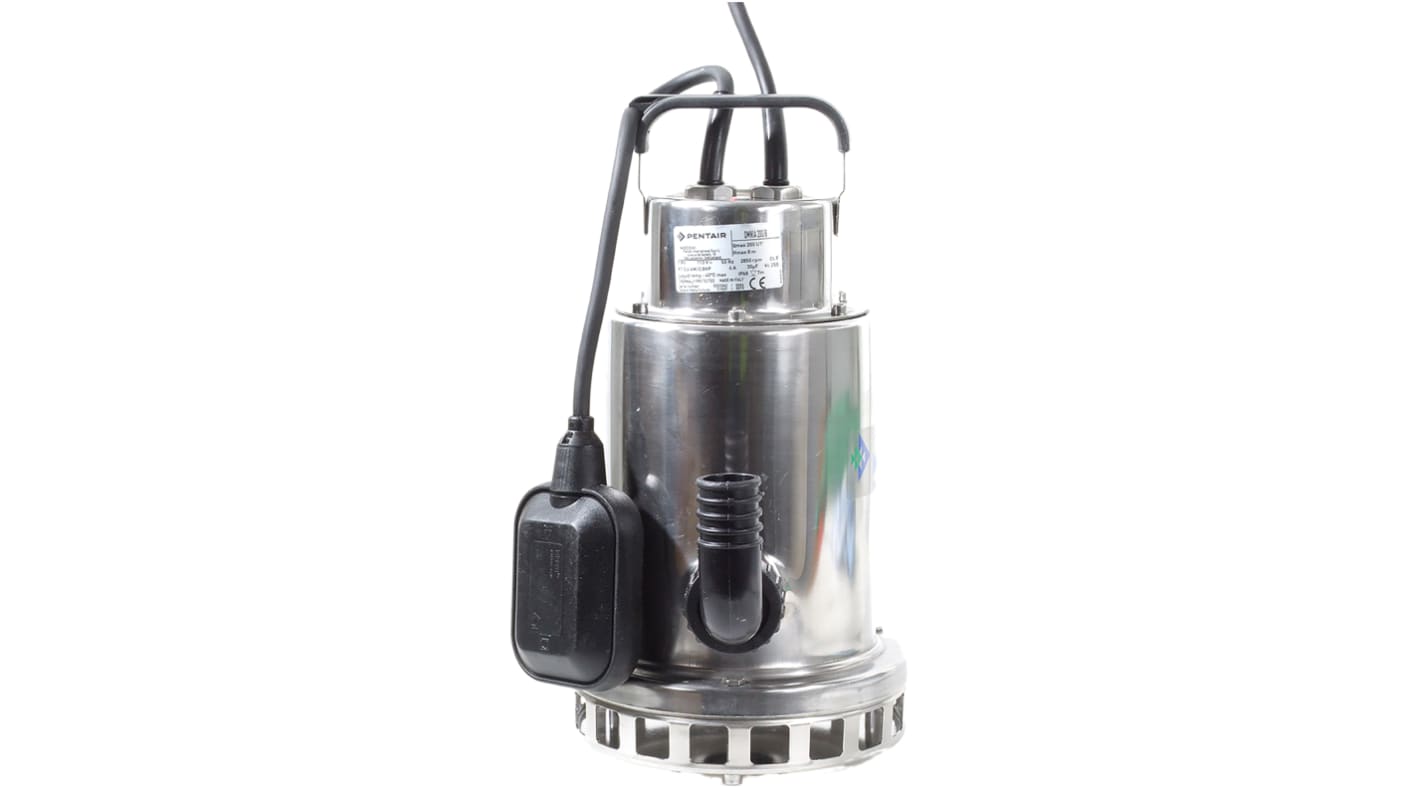

W Robinson And Sons Submersible Water Pump

The W Robinson And Sons submersible wastewater pump is the latest device manufactured from 304 stainless steel. This centrifugal pump is used in conditions where contamination or rust is unacceptable. It is an effective product with a maximum flow rate of 200L/minute.

Inclusion:
10m H07 RNF cable conforming to current regulations
.

Features and Benefits


The supply voltage is 230V
• Input power is 1.6kW
• Maximum fluid temperature is 50°C
• Thermal overload motor, double seal, lubricated in oil sump and interchangeable ceramic brush on rotating shaft
• Insulation class F
• Lubricated in oil sump and protected by V-ring sand-guard
• Self-sealing Vortex system impeller in cast stainless steel
• Free passage of 20mm solids

Applications


Used to drain seepage
• To pump up clear and waste rainwater from gratings or wells
• To pump waste and clear water of domestic, civil, and industrial use
• For channel irrigation system and water transferring from streams
• Basins and lakes
• Drainage of rooms, tanks and swimming pools of clear, waste, muddy, and slimy water
• Used also for industrial application such as spraying booths, transferring liquids, washing, etc.

Certifications

Specifications
Attribute Value
Maximum Flow Rate 200L/min
Supply Voltage 230 V
Maximum Head 8m
Body Material Stainless Steel
Coupling Type Direct
Maximum Fluid Temperature +50°C
Output Connection Size 1-1/4in
25 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 1,861.09
units
Per unit
1 +
MYR1,861.09
