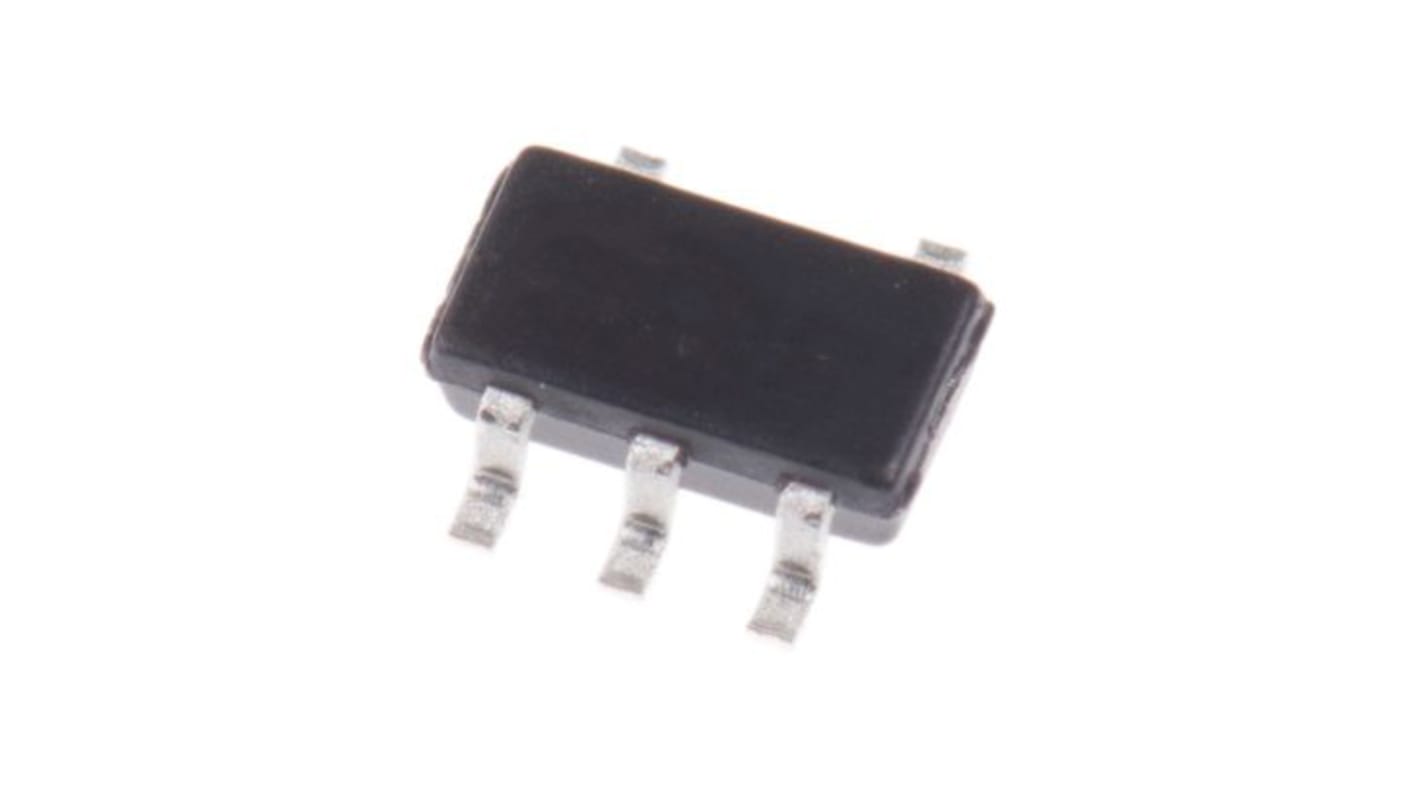

onsemi Programmable Series/Shunt Voltage Reference 1.24V ±1 %, ±2 % 5-Pin TSOP, TLV431ASNT1G
- RS Stock No.:
- 184-1482
- Mfr. Part No.:
- TLV431ASNT1G
- Manufacturer:
- onsemi
2475 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 25)
MYR1.53
| Units | Per Unit | Per Pack* |
| 25 - 725 | MYR1.53 | MYR38.25 |
| 750 - 1475 | MYR1.477 | MYR36.925 |
| 1500 + | MYR1.404 | MYR35.10 |
| *price indicative | ||
- RS Stock No.:
- 184-1482
- Mfr. Part No.:
- TLV431ASNT1G
- Manufacturer:
- onsemi
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
Voltage Reference, Adjustable, ON Semiconductor
Voltage Reference Tolerance +/-1.0%
Sharp Low Current Turn-On Characteristic
Low Dynamic Output Impedance of 0.20 W from 100 mA to 20 mA
Programmable Output Voltage Range of 1.24 V to 16 V
Micro Miniature TSOP-5 and TO-92 Packages
Pb-Free Package is Available
A = 1.0% tolerance Vref
B = 0.5% tolerance Vref
C = 0.2% tolerance Vref
Applications:
Low Output Voltage (3.0 V to 3.3 V) Switching Power Supply Error Amplifier
Adjustable Voltage or Current Linear and Switching Power Supplies
Voltage Monitoring
Current Source and Sink Circuits
analogue and Digital Circuits Requiring Precision References
Low Voltage Zener Diode Replacements
Sharp Low Current Turn-On Characteristic
Low Dynamic Output Impedance of 0.20 W from 100 mA to 20 mA
Programmable Output Voltage Range of 1.24 V to 16 V
Micro Miniature TSOP-5 and TO-92 Packages
Pb-Free Package is Available
A = 1.0% tolerance Vref
B = 0.5% tolerance Vref
C = 0.2% tolerance Vref
Applications:
Low Output Voltage (3.0 V to 3.3 V) Switching Power Supply Error Amplifier
Adjustable Voltage or Current Linear and Switching Power Supplies
Voltage Monitoring
Current Source and Sink Circuits
analogue and Digital Circuits Requiring Precision References
Low Voltage Zener Diode Replacements
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Voltage References, ON Semiconductor
Specifications
Attribute | Value |
|---|---|
| Nominal Voltage | 1.24V |
| Package Type | TSOP |
| Reference Type | Precision, Programmable |
| Initial Accuracy | ±1 %, ±2 % |
| Mounting Type | Surface Mount |
| Topology | Series/Shunt |
| Maximum Output Current | 20mA |
| Maximum Input Voltage | 16 V |
| Minimum Output Voltage | 1.24 V |
| Maximum Output Voltage | 16 V |
| Pin Count | 5 |
| Dimensions | 3.15 x 1.65 x 1mm |
| Minimum Operating Temperature | -40 °C |
| Width | 1.65mm |
| Maximum Operating Temperature | +85 °C |
| Length | 3.15mm |
| Automotive Standard | AEC-Q100 |
| Height | 1mm |
