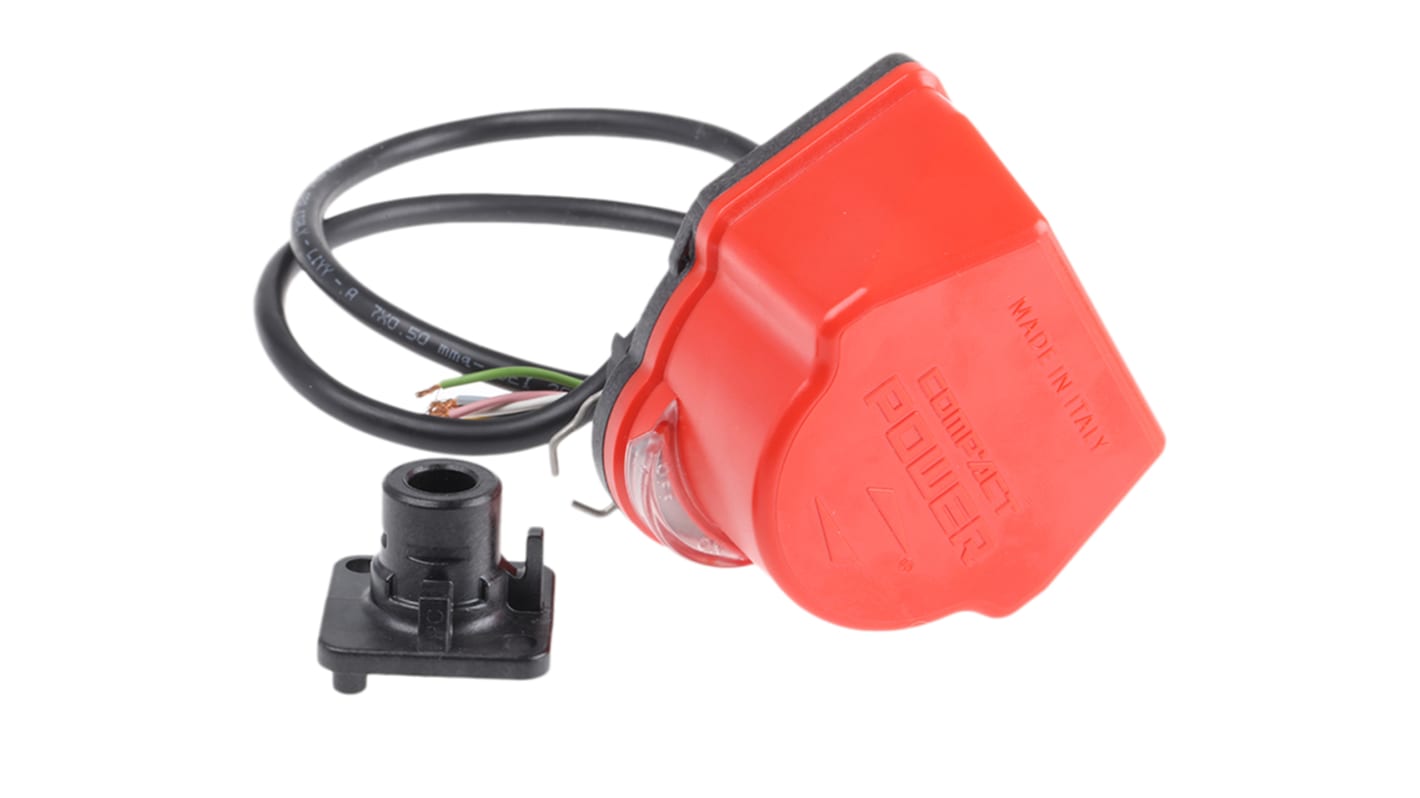

RS PRO 1 port Valve Actuator, 24 V

  • RS Stock No. 812-5217
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IT
Product Details

Electric Actuator for Quarter Turn Valves

Suitable for actuatable valves up to 1.1/4in. size (only for s.64 LT)
Compact package to fit in restricted spaces
Power supply 230Vac 50Hz / 24Vac 50-60Hz
Motor power consumption 10W
Torque output up to 5 Nm (44 in-lb)
Operation time 20 to 25 sec
Working temperature -20゚C (-4゚F) +80゚C (+180゚F)
Protection class IP65 comparable to NEMA 4X
Micro-switches for open-close signals
Micro-switches can pass up to 1A Reversing motor
Direct mount on valve for perfect shaft alignment
Positive orientation between ball valve and actuator
Actuator easily removable for manual operating
Visual position indicator
Corrosion resistant plastic housing
Actuator has successfully passed 100,000 cycle life tests
Duty cycle 60%

Note

Actuators 8125214, 8125201 and 8125198 are 2 wires
Actuators 8125217, 8125208 and 8125205 are 3 wires

Specifications
Attribute Value
Number of Ports Supported 1
Maximum Opening Time 25s
Maximum Closing Time 20s
Supply Voltage 24 V
Maximum Torque 5Nm
14 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 501.37
units
Per unit
1 - 9
MYR501.37
10 - 29
MYR481.90
30 +
MYR456.98
