RS PRO USB Connector, Panel Mount, Plug A, B A, B, Plug In, Straight IP67


99 In stock for delivery within 4 working days
Add to Basket

Price Each

MYR83.25

units

Added

RS Stock No.:
135-9769
Manufacturer:
RS PRO
COO (Country of Origin):
TW
unitsPer unit
1 - 9MYR83.25
10 - 24MYR81.16
25 - 49MYR78.26
50 - 99MYR75.13
100 +MYR68.63

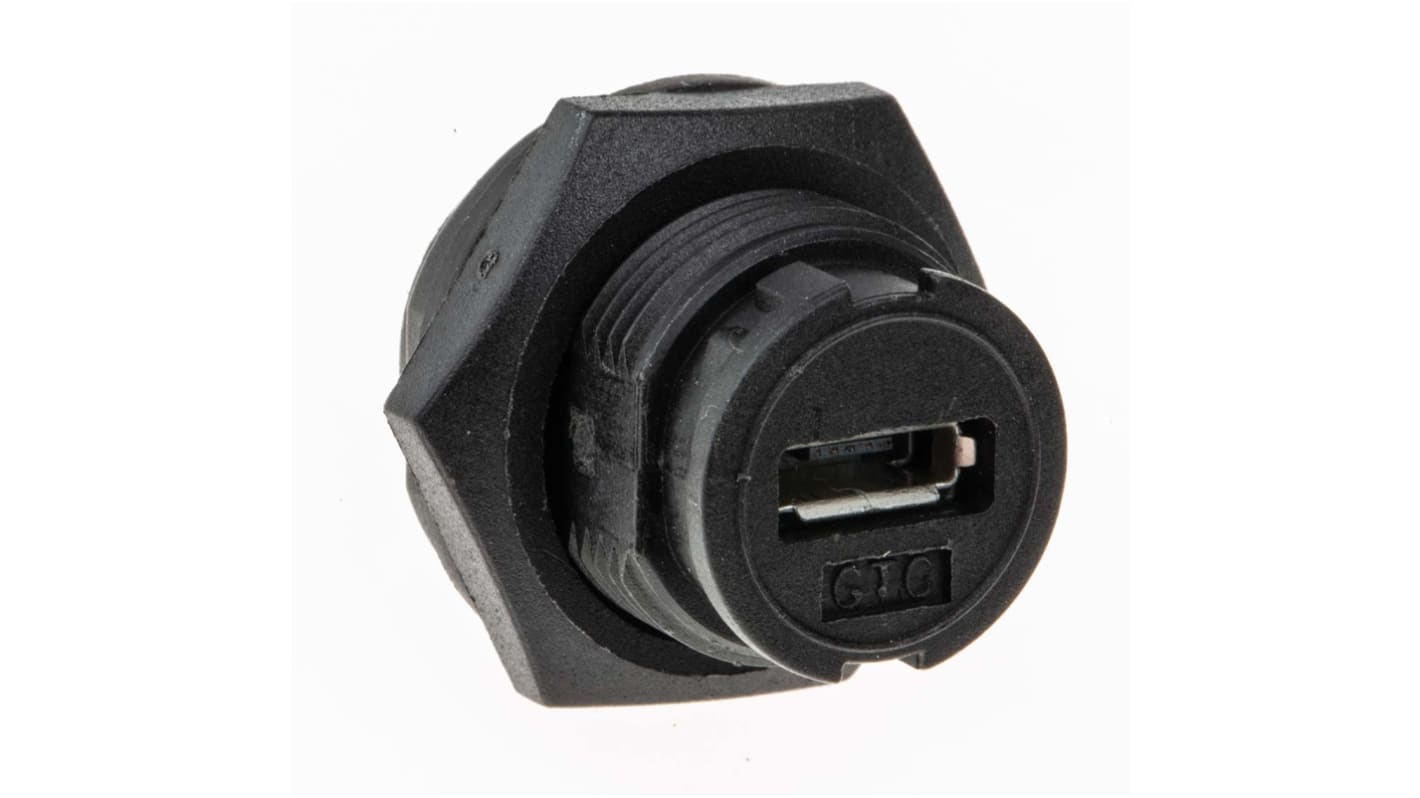

RS Pro Waterproof Micro USB A-B Plastic Coupler


From the trusted RS Pro brand, a superior quality micro- USB-AB coupler. The robust IP68 panel coupler is constructed from tough black thermoplastic with a black silicone gasket providing a tight panel seal. Contacts are formed from copper alloy with a gold flash. The GTC sealed series of adapters and couplers are ideal for applications where the prevention of dust and water ingress is essential. A thermoplastic dust cap is also available separately to provide extra protection. See typical part number 125-7925


Features and Benefits


• IP68 rated
• Rugged construction
• RoHS compliant


Applications


• Marine
• Automation
• Outdoor displays


AttributeValue
GenderMale
USB TypeA, B
Mounting TypePanel Mount
Termination MethodPlug In
USB VersionA, B
Body OrientationStraight
IP RatingIP67
Current Rating1.0A
Voltage Rating100.0 V
SeriesGTC Sealed
Series NumberGTC Sealed
Contact MaterialCopper Alloy
Minimum Operating Temperature-40.0°C
Maximum Operating Temperature+105°C
