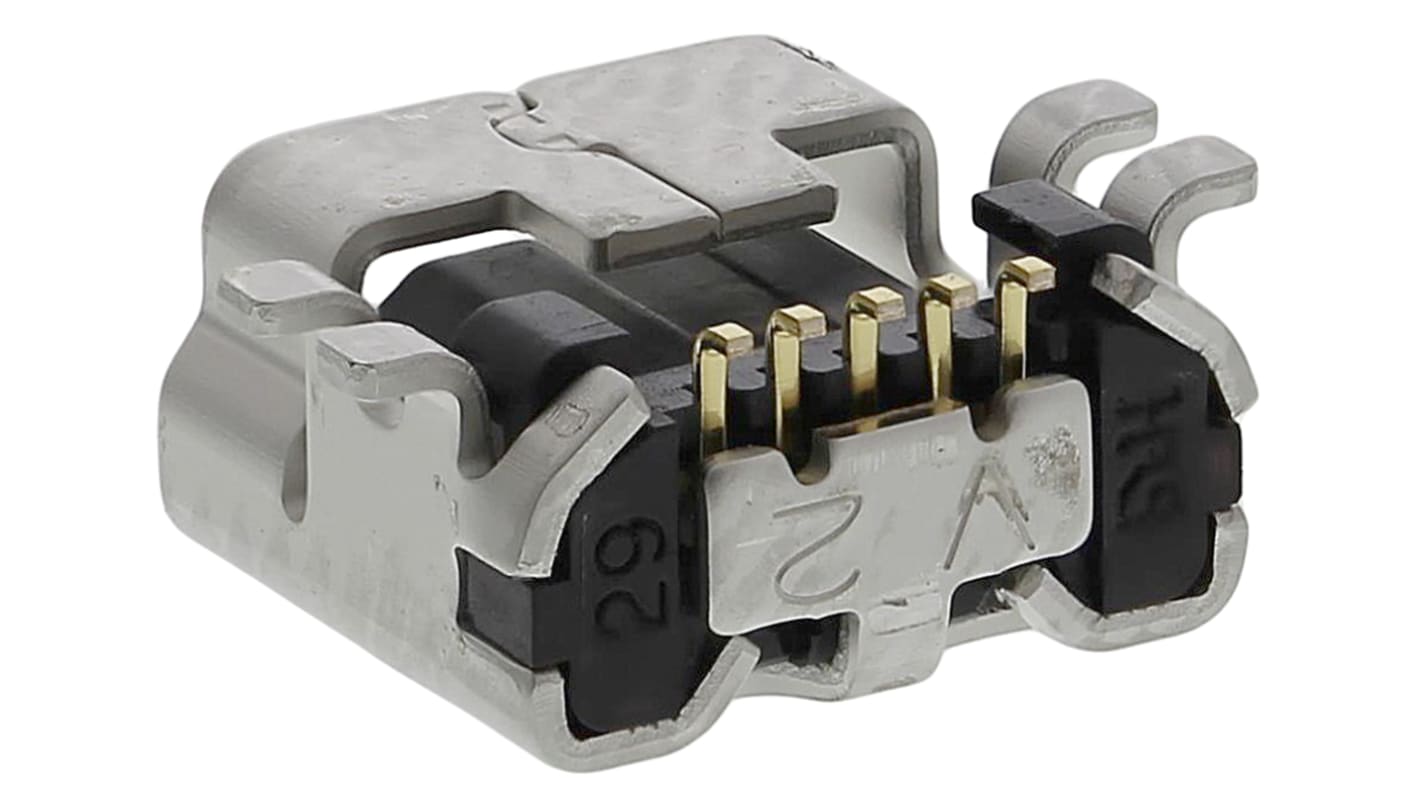

Hirose UX60 Series, Right Angle SMT, Version 2 Type B Mini USB Connector, Receptacle

  • RS Stock No. 122-1710
  • Mfr. Part No. UX60SC-MB-5ST
  • Manufacturer Hirose
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Hirose Mini-B USB 2.0 Receptacle Connectors - UX60S Series

A range of Mini-B USB 2.0 standard receptacle connectors with a compact 7mm x 9mm design and a maximum data transmission rate of 480 Mbps. The body of these Mini-B USB 2.0 socket connectors consists of a black resin insulator and a tin plated copper alloy shell with 5 female gold plated tin contacts.

Note

Mini-B USB 2.0 connectors with part numbers prefixed with 'EX60SA' have a mating side configuration with an interface entry angle
Mini-B USB 2.0 connectors with part numbers prefixed with 'EX60SB' have a standard mating side configuration
Mini-B USB 2.0 connectors with part numbers suffixed with '5ST' are SMT
Mini-B USB 2.0 connectors with part numbers suffixed with '5S8' are through hole mounting Mini-B USB 2.0 connector with a solder tab length of 0.8m

Specifications
Attribute Value
Gender Female
USB Type B
Mounting Type Surface Mount
Termination Method Solder
USB Version 2.0
Body Orientation Right Angle
Current Rating 1.0A
Voltage Rating 30.0 V
Series UX60
Contact Material Copper Alloy
Minimum Operating Temperature -30.0°C
Maximum Operating Temperature +75°C
Temporarily out of stock - back order for despatch 17/09/2020, delivery within 4 working days from despatch date
Price Each (On a Reel of 1000)
Was MYR1.80
MYR 1.52
units
Per unit
Per Reel*
1000 - 19000
MYR1.52
MYR1,520.00
20000 - 74000
MYR1.413
MYR1,413.00
75000 - 199000
MYR1.261
MYR1,261.00
200000 - 399000
MYR1.163
MYR1,163.00
400000 +
MYR1.128
MYR1,128.00
*price indicative
