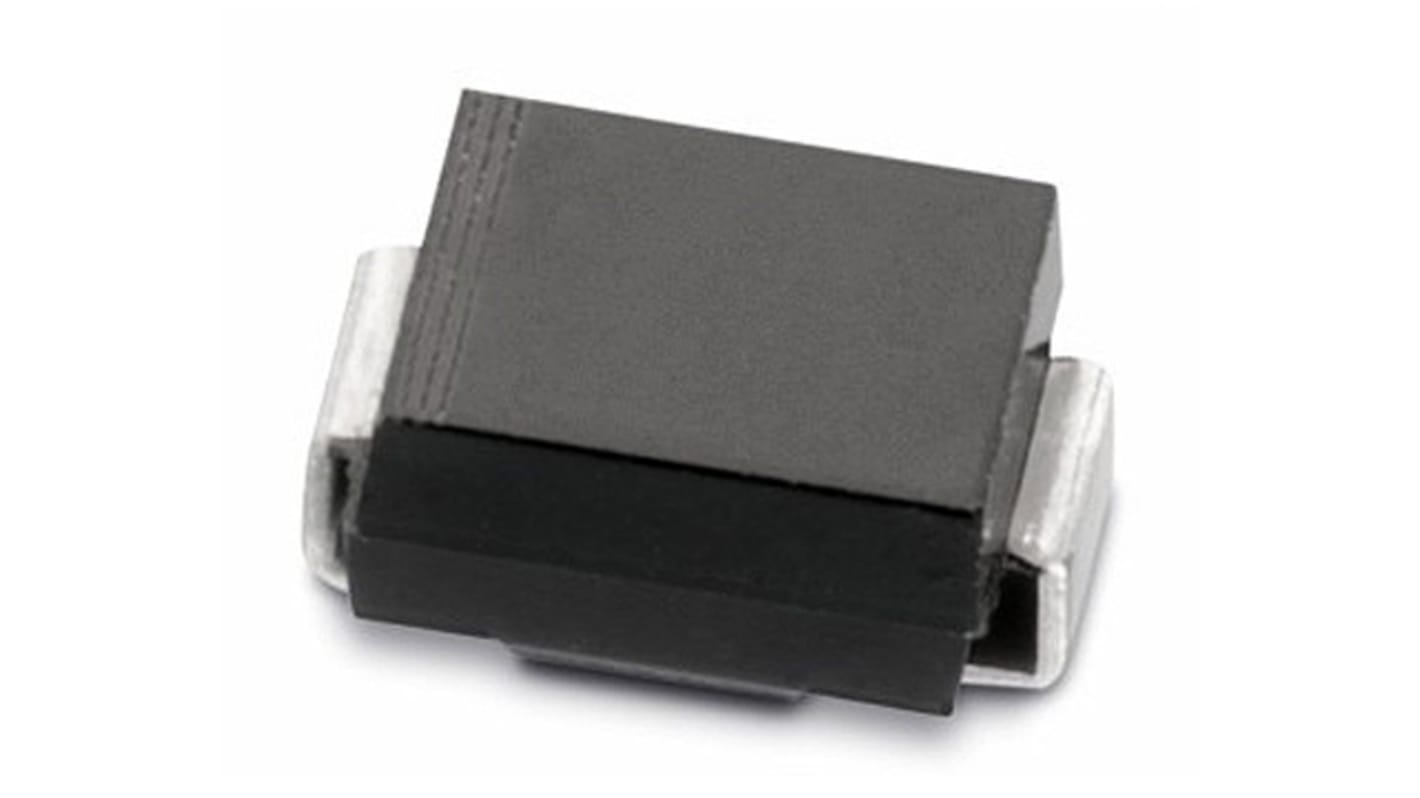

Wurth Elektronik 824521301, Bi-Directional TVS Diode, 600W, 2-Pin DO-214AA

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Bidirectional TVS Diodes, 600W, Wurth Elektronik

The Wurth Elektronik 600 W Bidirectional Power TVS Diodes are available in a range of operating voltages from 5 V dc up to 100 V dc.

- Low profile package
- Glass passivated junction
- Fast response time

Transient Voltage Suppressors, Wurth Elektronik

Specifications
Attribute Value
Diode Configuration Single
Direction Type Bi-Directional
Maximum Clamping Voltage 48.4V
Minimum Breakdown Voltage 35.05V
Mounting Type Surface Mount
Package Type DO-214AA (SMB)
Pin Count 2
Peak Pulse Power Dissipation 600W
Maximum Peak Pulse Current 12.4A
Number of Elements per Chip 1
Minimum Operating Temperature -65 °C
Maximum Operating Temperature +150 °C
Height 2.3mm
Dimensions 4.32 x 3.62 x 2.3mm
Length 4.32mm
Width 3.62mm
Test Current 1mA
Maximum Reverse Leakage Current 1µA
150 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 25)
MYR 1.23
units
Per unit
Per Pack*
25 - 100
MYR1.23
MYR30.75
125 - 225
MYR1.092
MYR27.30
250 - 475
MYR0.946
MYR23.65
500 - 975
MYR0.896
MYR22.40
1000 +
MYR0.757
MYR18.925
*price indicative
